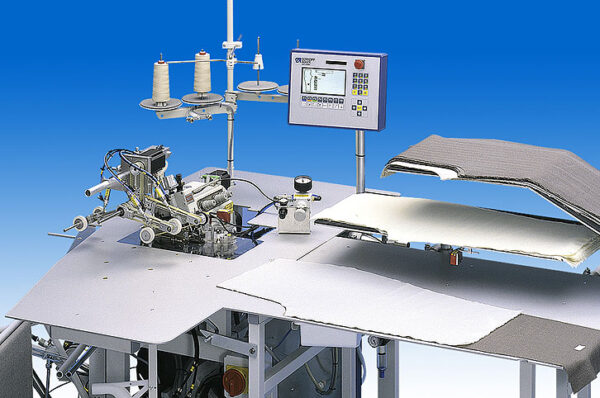

1265-7 Durkopp Adler

Automatic single head serging unit for long and short seams (casual and classic trousers; with/without knee lining; skirts; stretch materials)
***
Equipped with:
– Pegasus sewing head EXT5204-02/233-KH (6,500 rpm) with differential top and bottom feed
– automatic photocell scanning for seam beginning & seam end
– DAC classic sewing drive and STEHA control technology
– freely programmable microprocessor control with LCD-Display and graphical surface
– automatic contour control by programmable puller
– stepper motor controlled differential top and bottom feed for programmable fullness distribution
– vertical cutter with suction for clean serging
– sword swiveling device for control of the waist curve
– adjustable blowing nozzles in the table top to support the material transport. Mechanical regulation of blowing strength by adjusting knob, duration of table blowing programmable
– two deposit tables for trousers and kneelining
– pneumatic thread tension release
– transport unit, can be swing up with puller + roll-out device
– Pneumatic suction for cutting waste – vertical cutter
– mechanic edge guide – adjustable
– height-adjustable contour guide
– help roller in the contour guide
– automatic thread chain trimmer and pneumatic waste suction
– manually height-adjustable stand (range from 85 – 120 cm)
– pneumatic thread tension release for safe chain cut
– automatic sewing foot pressure adjustment in 5 different sections (Peumatically controlled)
– pneumatic down holder for chain cut and stacking process

Note: Trousers with kneelining processing can also be processed on this sewing unit without knee lining fusing station. In this case, the stitch pattern of the seam appears 1x right and 1x left on the right side of the fabric. If this is not desired, the sewing unit must be equipped with a kneelining fusing station.
