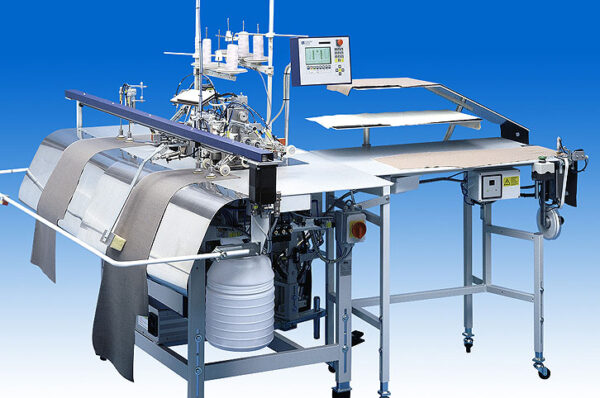

1365-7 Durkopp Adler

Automatic twin-head serging unit (Optional 3rd sewing head), for serging front trousers (with/without kneelining) and hind trousers, also suitable for stretch materials
***
Equipped with:
– Pegasus two- or three-thread overedger EXT 5204-02/233-KH with differential top and bottom feed
– separate step motor control for differential top- and bottom feed for pre-selecting the necessary fullness in the lining
– suitable for stretch materials
– freely programmable microprocessor control with LCD-display and graphical surface
– DAC classic direct drive with STEHA control box
– height-adjustable contour guide
– contour guide regulated via step motor
– step motor controlled take-off roller for exact chain trimming as well as for controlled positioning of the workpiece before stacking
– step motor control for auxiliary feed on A- and B-machine for wide and difficult materials
– additional transversal feed
– prelaying table
– stacker 201/6-2
– thread monitor on B-machine
– manually height-adjustable stand (range from 89-125 cm)
– memory-stick for saving program and parameter date files
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions: 2300 x 1500 x 1750 mm
1200 x 1100 x 1400 mm
Net weight: 380 kg, 50 kg; gross weight: 657 kg, 169 kg (wooden crate)
