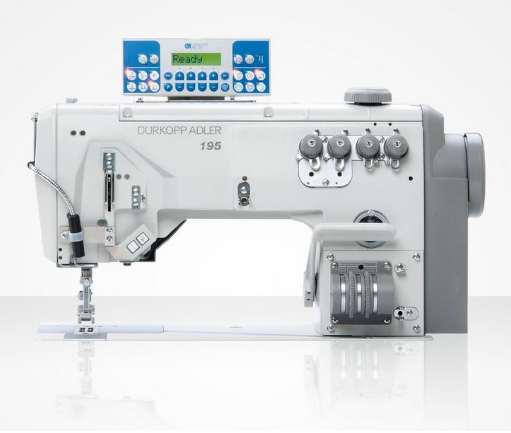

195-01 Durkopp Adler Single, twin or three needle double chainstitch flat bed sewing machines for medium-heavy duty applications

195-01 Durkopp Adler Single, twin or three needle double chainstitch flat bed sewing machines for medium-heavy duty applications

Fast and flexible with double-chainstitch Excellent feeding features, a safe and constantly tight stitch

formation – this is guaranteed by the matured technique of the double-chainstitch machines of the 195-01 series.

Thus, these machines meet the requirements for using chainstitch technology for medium-weight applications.

Preparatory operations when manufacturing automotive interior, home upholstery and technical textiles belong to the sewing processes which can be executed on these machines with particular efficiency.

The optimized sewing kinematics, the differentiable bottom and top feed with alternating sewing feet as well as the version as single, twin or three needle machine or as trimming machine guarantee a maximum of versatility.

Apart from the high ease of use and service the machines are especially characterized by their superb performance parameters and their flexibility.



Your advantages:

Safe stitch formation due to automatic adaption of the looper thread supply to the stitch length

Smooth sewing results without material shifting even in critical materials through independent adjustment of top and bottom feed

Firm stitch tightening during corner sewing due to closed thread tension during intermediate sewing feet lift

High material throughput due to high sewing speed and long stitch length

Reduction of handling times by means of thread trimmer (only 195-171521-01), automatic stitch condensing and sewing foot lift

Single needle version:

– Joining and topstitching seams with or without fullness

– Distortion-free binding

Twin or three needle version (optional mounting kits for 195-171120-01):

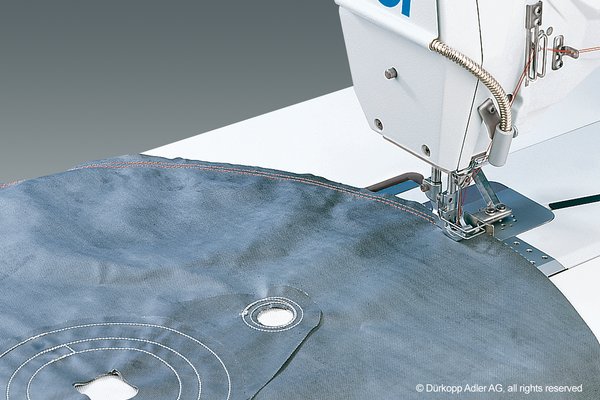

– Joining seams with or without fullness, e.g. on airbags

Edge trimmer version (195-671120-01):

– Simultaneous sewing and trimming

– Precise, neat trimming for trouble-free further processing of bulky filling material due to solid edge

Trimmer

Performance features:

Max. stitch length 8 mm

Max. sewing speed 4,000 / 3,500 stitches/min.



195-171120-01 Twin needle seams (with twin needle kit 0195 005002) or three needle seams

(with three needle kit 0195 590074) in airbag material with layer compensation due to the differentiated operation of top and bottom feed with sewing thread thicknesses up to 20/3 Nm

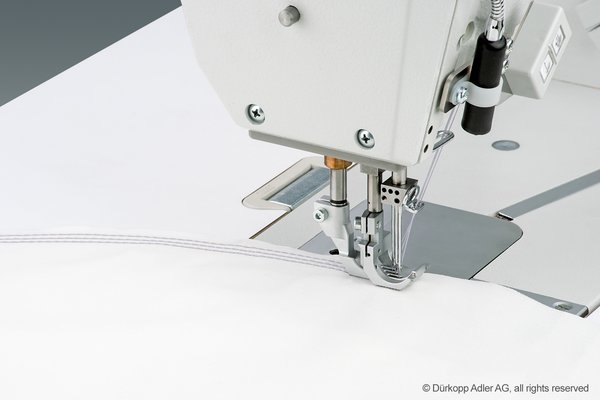

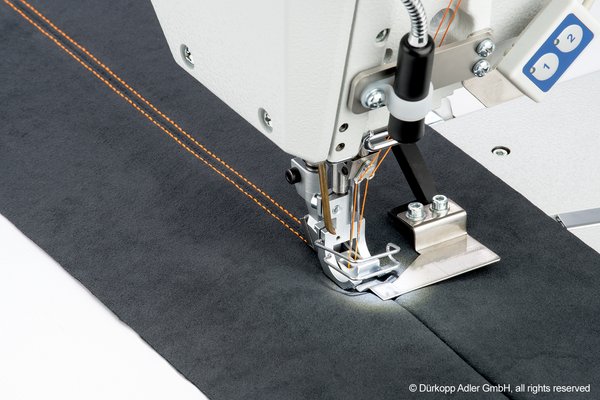

Especially in the field of airbag production, technical textiles or decorative seams with and without fullness, the 195-171120-01 shows its strengths as single, twin or three needle version. Reliable stitch formation due to optimized sewing kinematics ensures a high seam quality even with large sewing thread thicknesses. The alternating, differentiating transport system ensures smooth, displacement-free sewing results, even with difficult-to-feed materials.



195-171521-01 Optimally matched sewing equipment facilitates the binding of mattress covers as well as the stitching through of seat plates with fullness.

Shorter handling times due to thread trimmer, automatic stitch condensation and automatic sewing foot lift enable increased performance and high sewing speeds. The trouble-free material feed due to the powerful, alternating feed system with high top feed stroke allows the processing of an extended material spectrum.



195-671120-01 The powerful cutting system with a pulling cut facilitates – even with highvolume

wadding pieces – easy handling and a clean cut at all times.

Equipped with a robust edge trimmer with high knife stroke, this special machine allows problem-free and exact trimming of all fillers customary in the industry. The unhindered handling of voluminous material and the cutting waste is achieved by the high sewing foot lift and the large clearance

under the sewing arm. A trouble-free transport of voluminous and / or multi-layer material is guaranteed due to the powerful, alternating and differentiating transport system.
