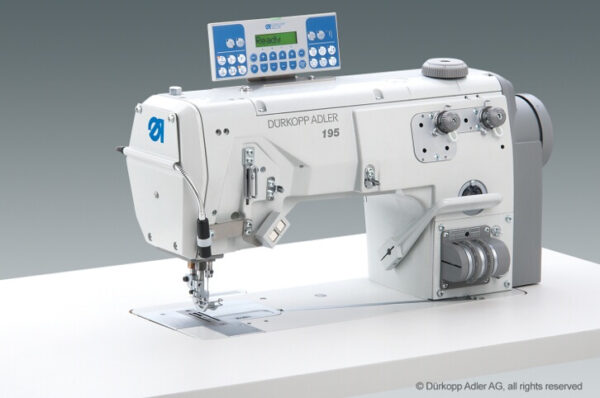

195-171521-01 Durkopp Adler

Single needle two thread-chainstitch machine with bottom feed
and variable alternating feet, electropneumatic stitch
condensing, thread trimmer, electropneumatic quick stroke adjustment and sewing foot lift
***
with integrated sewing drive incl. DAC classic control box and
operation panel OP1000
with crossline hook, adjustable sewing foot stroke up to 7 mm,
with automatic speed adaptation, sewing foot lift in high needle
position 17 mm, bottom feed length up to 8 mm, top feed length
up to 10 mm, individually adjustable, with push button for needle
position up/down and stitch condensing
Sewing equipment for flat sewing, compensation of material plies and chaining off
***
for medium weight material, needle size Nm 100-300, max. bottom feed length 8 mm, max. top feed length 10 mm
Sewing equipment for binding operations, needle size Nm 100-130, max. bottom feed length 8 mm, max. top feed length 10 mm
***
for medium weight material, includes swivel rail, fastening parts and tape guide.
Binder according to N014, N015 and N017 has to be ordered separately
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions sewing head: 780 x 370 x 790 mm
Net weight: 57 kg; gross weight: 62 kg
Dimensions stand set: 1090 x 630 x 420 mm (with motor)
Net weight: 53 kg; gross weight: 63 kg
