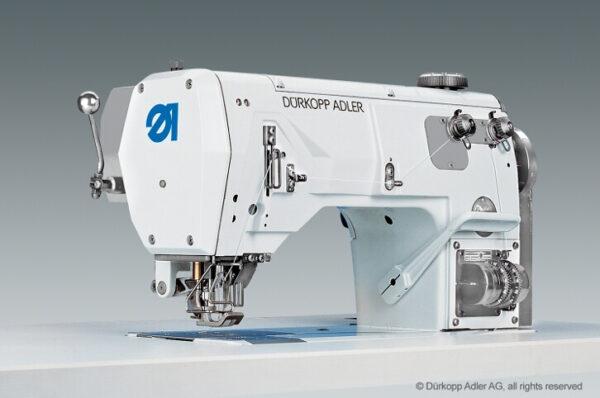

195-671120-01 Durkopp Adler

Single needle two thread-chainstitch machine with bottom feed
and variable alternating foot top feet, electropneumatic sewing foot lift, electropneumatic quick stroke adjustment, stitch condensing and edge trimmer.
***
with integrated sewing drive incl. DAC classic control box and operation panel OP1000
with crossline hook, adjustable sewing foot stroke up to 7 mm,
with automatic speed adaptation, sewing foot lift stroke in case
of needle postion high = 17 mm, bottom feed length up tp 8 mm,
top feed length up to 10 mm, individually adjustable convertible
knife stroke 6 or 8 mm, trimming distances 4,5 to 12 mm.
Equipment for sewing and trimming, trimming diestance 5 mm,
***
For medium weight material, needle size Nm 100-130, max bottom feed length 8 mm, max top feed length 10 mm
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions sewing head: 780 x 370 x 790 mm
Net weight: 57 kg; gross weight: 62 kg
Dimensions stand set: 1090 x 630 x 420 mm (with motor)
Net weight: 53 kg; gross weight: 63 kg
