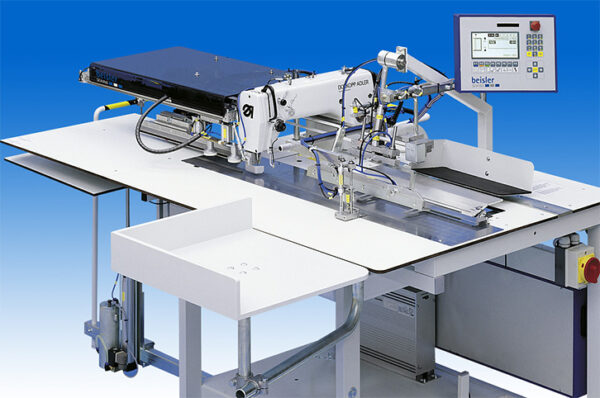

2111-7 Durkopp Adler

Automatic short seamer unit, series 2111-7, for folding and attaching of pocket facings to pocket bags
***
Equipped with:
– lockstitch sewing head DA Cl.281
– integrated DAC Classic positioning drive and motor control,
– machine ID to safe machine parameters
– nominal voltage 190-240 Volt, 50/60 Hz
– pneumatic thread trimmer
– needle thread clamp
– monitor for the remaining bobbin thread
– needle thread monitor
– Microprocessor control freely programmable with LCD display and graphical surface
– memory stick for saving program and parameter data files
– main clamp drive by regulated step motor
– scanning of the workpiece beginning and end via photocell
– folding and loading station up to a facing length of 300 mm (max. seam length up to 450 mm)
– seam width quick adjustment
– backtacking equipment at seam beginning and seam end as well as condensed stitches (programables)
– stacker for small parts with automatic lowering via photocell
– height-adjustable stand (manually from 89 -125 cm)
– rests for pocket bags and facings.
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions: 1750 x 1450 x 1700 mm
Net weight: 210 kg; gross weight: 323 kg
