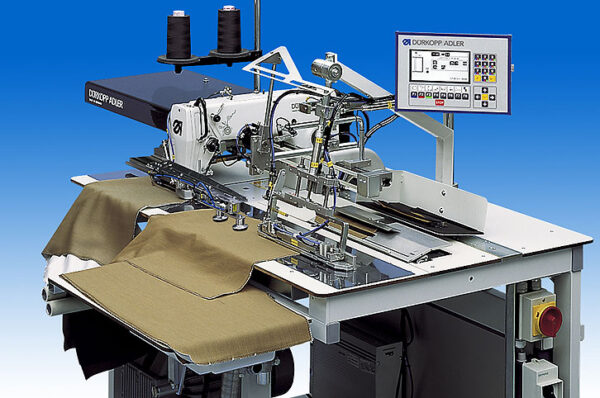

2211-7 Durkopp Adler

Flexible short seam sewing unit, series 2211-7 for up to 5 operations:
1. attaching of left fly piece
2. attaching of right fly piece (option)
3. attaching of wing pockets (option)
4. attaching of wing pockets with piping (option)
5. topstitching of wing pockets (option)
***
ATTENTION: ONLY FOR “1. ATTACHING OF LEFT FLY PIECE” THE ENDLESS ZIPPER PROCESSING IS REQUIRED; ALL OTHER OPERATIONS ARE INDEPENDENT!!!

Equipped with:
– lockstitch sewing head DA cl. 281
– integrated DAC Classic DC positioning drive and motor control
– machine ID to store machine parameters
– nominal voltage 190-230 Volt, 50/60 Hz,
– pneumatic thread trimmer
– micro-processor control freely programmable with LCD display and graphical surface
– memory stick for saving program and parameter data files
– main clamp drive by regulated step motor
– folding and loading station (up to a fly piece length of 318 mm),
– seam width quick adjustment for wing pockets,
– programmable insertion
– scanning of seam beginning and seam end via photocell
– backtacking or condensed stitches at the seam beginning and seam end (optionally adjustable),
– transport clamp with DC drive
– needle thread and bobbin thread monitor
– automatic notching of trousers part and fly piece
– vacuum system (for quick positioning of the work- pieces) prepared to be connected to the factory-own vacuum system or vacuum pump, prepared for central vacuum or vacuum pump (alternatively)
– automatic blowing out of parts after seam end,
– laser marking lamp,
– fully overlapped processing,
– height-adjustable stand (manually from 89-125 cm).
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions: 1750 x 1450 x 1700 mm
Net weight: 265 kg; gross weight: 378 kg
