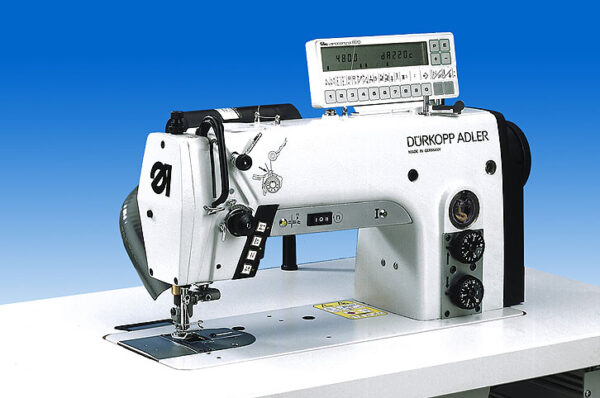

272-740642-01 Durkopp Adler

Single-needle lockstitch machine with bottom- and needle feed, edge trimmer driven by electric motor, thread trimmer, sewing foot lift, seam back-tacking, with thread retaining device for seam beginning
***
With DAC Classic, OP1000, mounting bracket. With small horizontal hook, electromagnetic functions for thread trimmer, seam back-tacking and sewing foot lift, key for back-tacking within the seam, calling up or eliminating seam back-tacking and edge trimmer on / off.
Rated voltage: 1 x 190-240V 50/60Hz. Stitch length up to 4 mm depending on sewing equipment. Max. sewing speed 5.000 stitches/min.

Required equipment:
For the pneumatic functions the maintenance unit WE8 is required. (see “optional equipment”)
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions sewing head: 780 x 370 x 790 mm
Net weight: 42 kg; gross weight: 58 kg
Dimensions stand set: 1090 x 630 x 230 mm (without motor)
