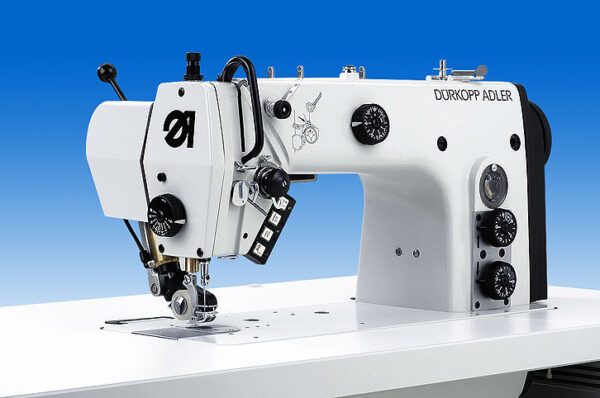

274-140342-01 Durkopp Adler

Single needle lockstitch machine with bottom feed, needle feed and intermittent puller top feed, thread trimmer, sewing foot lift and seam backtacking, with thread retaining device for seam beginning
***
With DAC Classic, OP1000, mounting bracket. With small horizontal hook, with Kit ‘height adjustment of the cloth presser foot’ for high-pile material, can be fitted subsequently.
with push button for lifting and lowering the puller electropneumatically, needle position up/down, intermittent tacking, +1 stitch and elimination of seam backtacking, st
Stitch length up to 4 mm, Top puller feed adjustable up to a feed length of 7mm. Max. sewing speed 5.000 stitches/minute. Rated voltage190-240 V 50/60Hz.

Required equipment:
For the pneumatic functions the maintenance unit WE8 is required. (see “optional equipment”)
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions sewing head: 780 x 370 x 790 mm
Net weight: 42 kg; gross weight: 58 kg
Dimensions stand set: 1090 x 630 x 230 mm (without motor)
Net weight: 27 kg; gross weight: 34 kg
