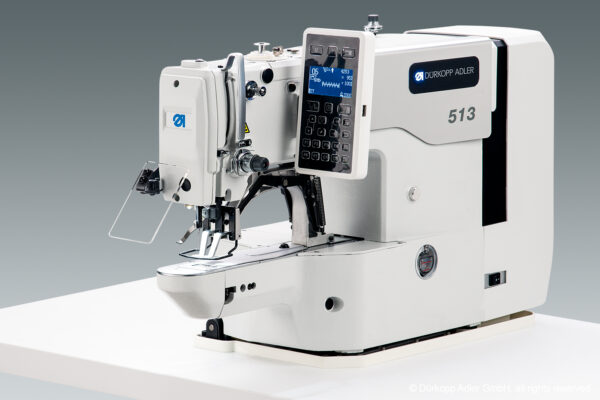

513 Durkopp Adler

CNC-controlled lockstitch bartacking machine for light to medium materials with max. sewing field 40 x 30mm, scaling of pre-programmed patterns and standard clamp foot No. 2 for rectangular bar-tacks max. 20 x 4,5mm.
***
Equipped with:
– Electronic controlled clamp foot lift,
– Short thread trimmer(≤3mm)
– Thread wiper
– Integrated DC direct drive motor
– Integrated control box
– Operation panel incl. bobbin capacity counter, piece counter, cycle sewing and pattern transfer via USB.

Product Features:
– Max. speed 3.200rpm.
– Oil free sewing head,
– Hook with fresh oil tank,
– No compressed air required.
– Stabiliser to balance electric voltage peaks.
– 100 Pre-programmed patterns can be changed in length and height by steps 1%.
– Sewing speed can be changed in 100 rpm steps.
– Memory capacity for 100 user defined bartack and 25 sequences(30 programs per sequence)
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions sewing head: 870 x 430 x 890 mm
plus accessories with control: 610 x 460 x 310 mm
Net weight: 72 kg; gross weight: 91 kg
Dimensions stand set: 1090 x 630 x 230 mm (without motor)
Net weight: 27 kg; gross weight: 34 kg
