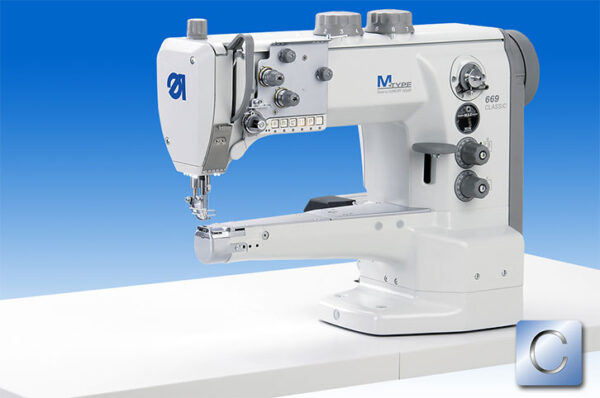

669-180312 Durkopp Adler

Single needle lockstitch cylinder arm machine with bottom feed, needle feed and alternating feed (elliptical movement of bottom feed is disengageable for binding operation), electropneumatic thread trimmer, add. electropneumatic switchable thread tension, integrated 2. stitch length, electropneumatic seam backtacking and sewing foot lift, electropneumatic quick stroke adjustment, integrated sewing light (LED)
***
cylinder arm diameter 50 mm, with large horizontal three piece hook, safety clutch, adjustable sewing foot stroke up to 9 mm with automatic speed adaptation, sewing foot lift in high needle position 20 mm, stitch length up to 9 mm, max. sewing speed 3.000 stitches/min.
Motor kit DAC CLASSIC with motor , 1x230V 50/60Hz, 3.000 rpm, incl. Knee switch.
***
complete with DAC classic control box incl. motor HH750, mounting parts (mounting at machine head), hallsensor (synchronizer), cables, belt, pulley, Machine-ID, with operation panel OP1000
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions sewing head: 780 x 370 x 790 mm
Net weight: 50 kg; gross weight: 60 kg
Dimensions stand set: MG55 xxxxxx: 1070 x 610 x 750 mm
Net weight: 47 kg; gross weight: 64 kg
Maße Gestelle: MG56 xxxxxx : 1300 x 800 x 430 mm
Net weight: 35 kg; gross weight: 50 kg
Dimensions complete: 1380 x 1050 x 1300 mm
Gross weight: 232 kg, Net weight: 115 kg (wooden crate)
Dimensions complete: 1200 x 800 x 1430 mm
Gross weight: 140 kg, Net weight: 100 kg (paperboard container)
