860 – With powerfull feeding system for topstitching side seams in jeans and casual trousers

860 | With powerfull feeding system for topstitching side seams in jeans and casual trousers

As single or double needle with perfect stitch pattern

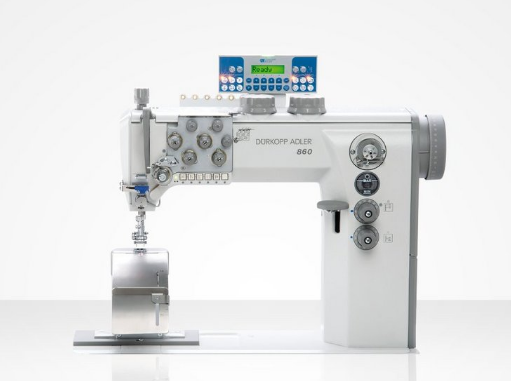

The post bed machine 860 was specially designed to efficiently topstitch side seams in jeans and casual trousers. It is unbeatable as single and twin needle machine.

Your benefits at a glance

·         Triple feed – suitable for any fabric thickness bottom feed, needle feed and alternating foot-top feed. With the triple feed and available sewing attachments, you can easily sew light chinos/light fabrics and heavy jeans or work trousers.

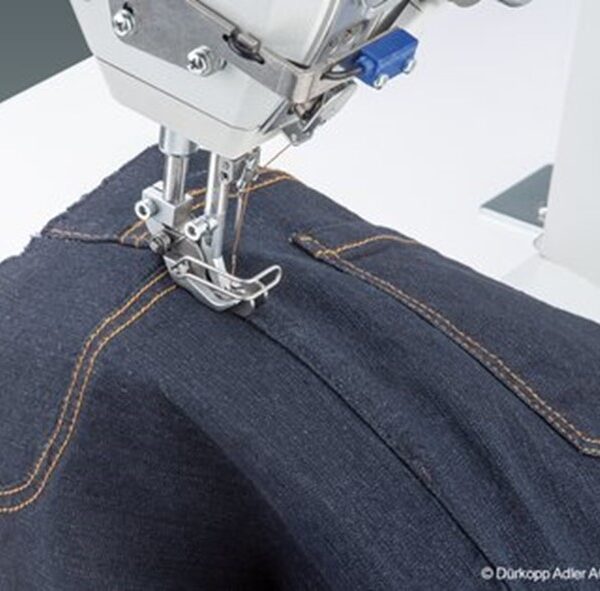

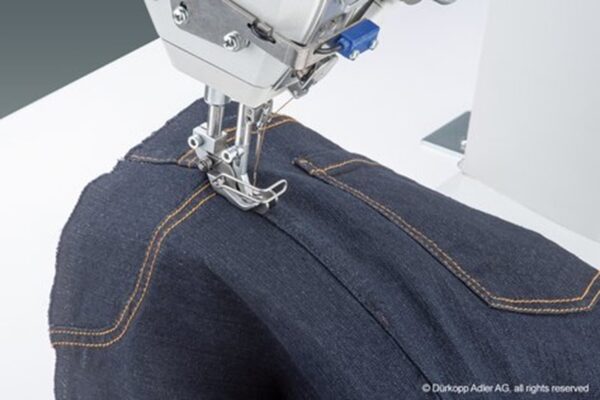

·         Optimal climbing qualities. Especially when topstitching the side seam, you will come across dividing seams such as the pocket opening and yoke. This is where the switchable 2nd presser foot stroke is invaluable for convincing quality.

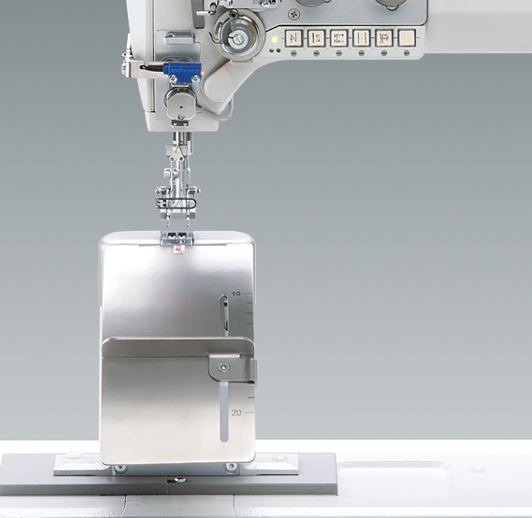

·         Support table with edge guide for efficient working without previous marking for seam lengths up to 200 mm. When designing the machine, special attention was paid to the ergonomic handling of the operator.The result is a sewing support element that is perfectly suited for this operation.Loading and correct positioning of the fabric could not be easier.

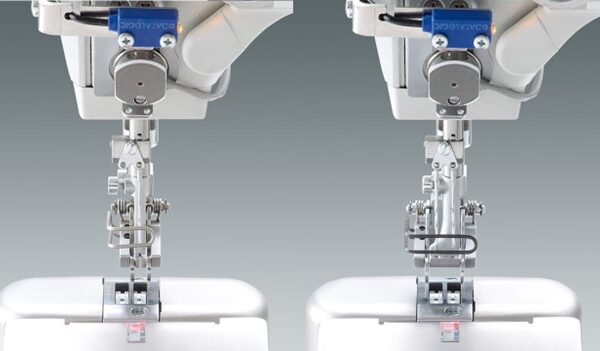

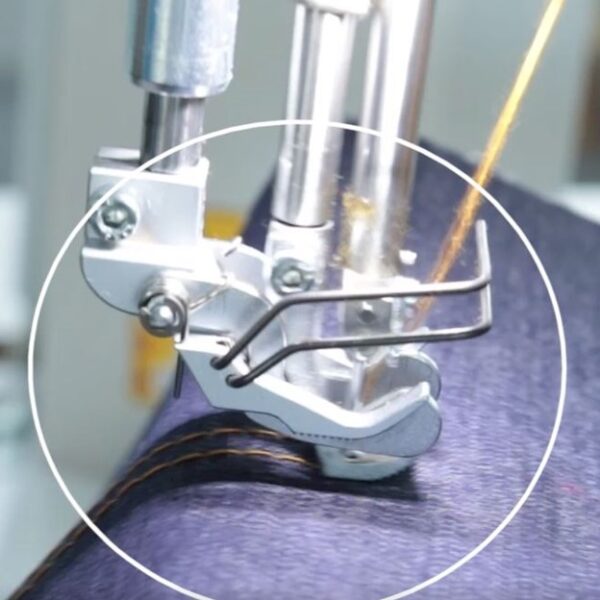

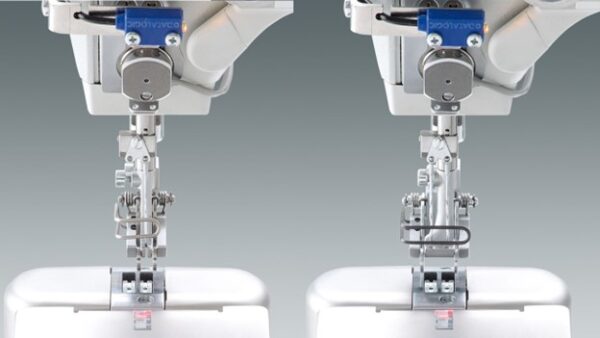

·         Easy change from 2- to 1- needle. A special asymmetric sewing unit allows a special conversion from two to one needle.Thanks to an asymmetric presser foot for two-needle applications and a symmetric presser foot for single-needle applications, both double and single seams can be sewn only for two-needle machine.

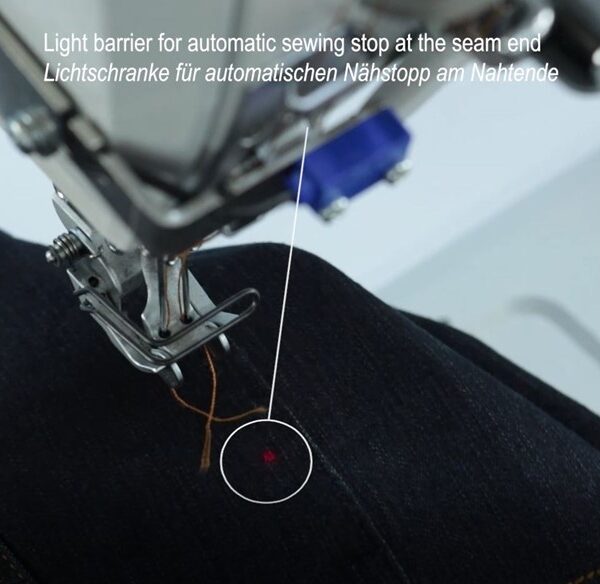

·         Light Barrier for automatic sewing stop at the seam end

·         Pneumatic additional thread tension for excellent stitch formation when sewing over thick spots

·         Up to 9 mm long stitches for standard seams and decorative topstitching

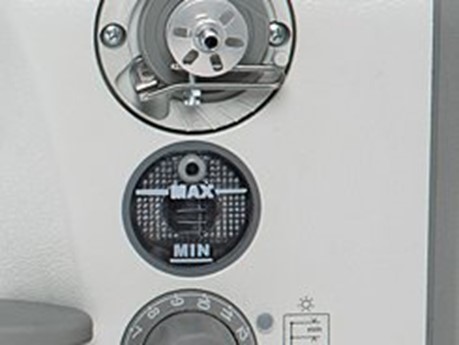

·         Integrated maintenance indicator

·         Integrated 6-function keypad with ergonomically arranged favourite key

·         The extremely high sewing foot lift up to 20 mm max. facilitates the feeding and removing of bulky workpieces

Examples of use

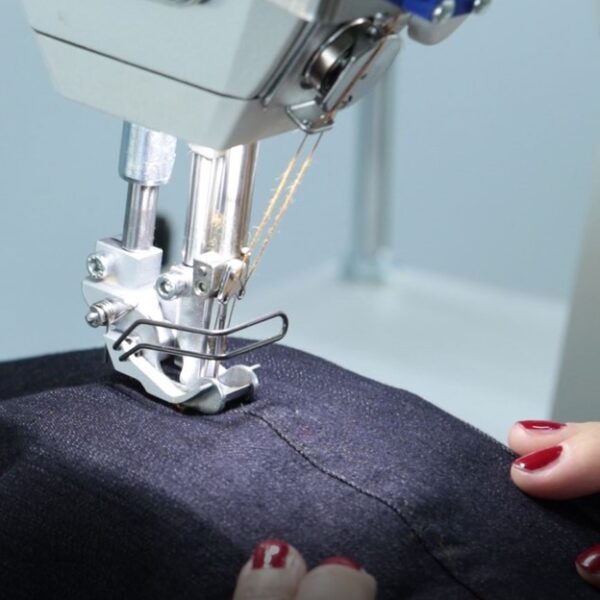

·         Sewing start – waistband edge. With this method of operation, a program can be created on the control panel that allows programmed sewing using stitch counting. The 2nd stroke is automatically switched on at the desired points. This ensures efficient working and topstitching seams of equal length.

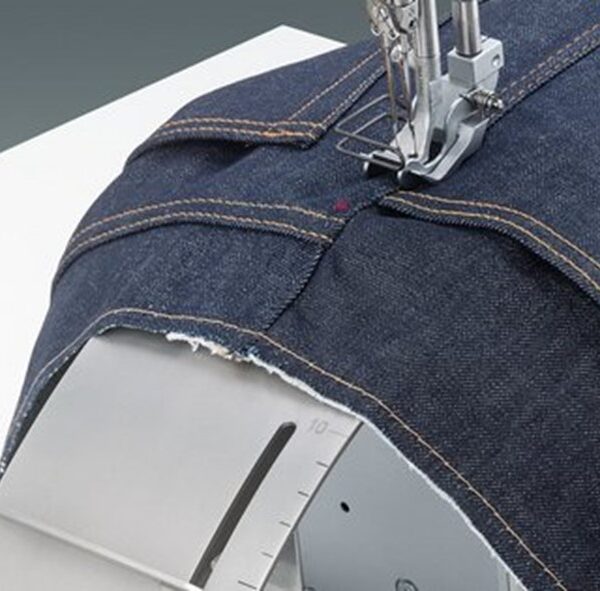

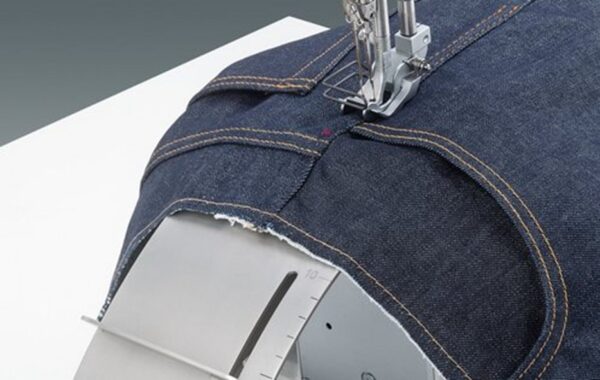

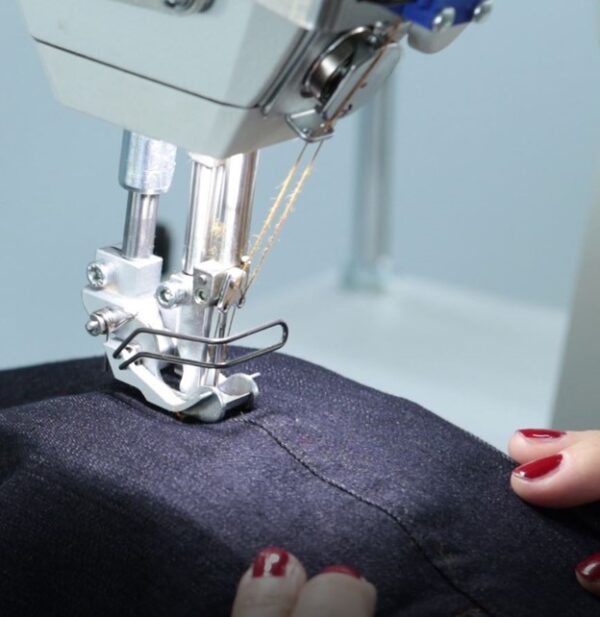

·         Sewing start – waist. The support table is optionally equipped with an edge guide. Here the upper edge of the trousers can be placed. The trousers are pulled over the post from behind. Thus thesewing start is always at the right place. The end of the seam is detected by a light barrier (option). This enables highly productive work.

·         Performance 860. Performance example in 480 min.: Topstitching of approx. 1,350 – 1,450 pair of jeans (2 seams)



Feature	860-190322	860-290322
Stitch length Lockstitch (301)	1-9
Stitches/min.	2,500*
Sewing Material	M / MS
Single needle	Standart	Option
Twin needle	–	3.2/4.8/6.4/7.2/*
Hook System	Vertical hook, large (L, Ø 26 mm)
Feed System	Bottom feed, needle feed and alternating foot top feed
Thread trimmer 15mm
Seam backtacking Automatic
Sewing foot lift Automatic
Stitch count:  Reflecting light barrier for automatic sewing stop at fabric end
Stroke of the alternating sewing feet 9 mm
Quick stroke adjustment via knee switch and foot stroke adjustable by dial
Integrated 2nd quick stroke adjustment
Integrated 2nd stitch length adjustment
Clearance when Sewing/Lifting  A= 10 / B= 20
Additional thread tension Automatic
Program control, operating panel OP1000
Integrated LED sewing light with dimmer
Oil maintenance indicator



Air requirement per stroke	0.7
Air pressure	6
Needle system	134-35
Needle size	100-130
Synthetic	80/3 – 10/3
Dimensions (L/W/H)	1060 / 600 / 1700
Post bed machine clearance	C=335 / D=297
Nominal voltage	1x230V, 50/60 Hz
Rated power	375
Weight, sewing head	70
