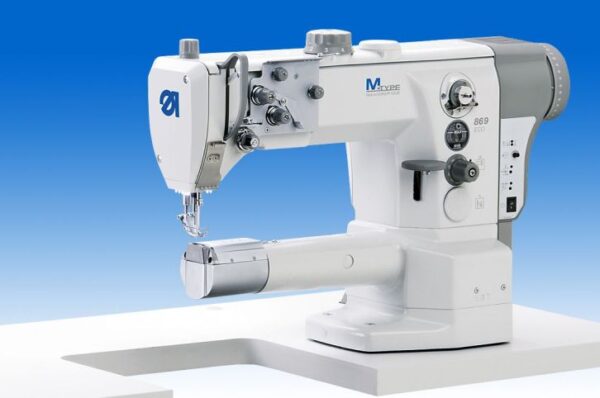

869-180020-M Durkopp Adler

Single needle lockstitch cylinder arm machine with DA Direct Drive, bottom feed, needle feed and alternating feed (elliptical movement of bottom feed is disengageable for binding operation)
***
with integrated sewing drive incl. integrated DAC eco M-TYPE control, cylinder arm diameter 78 mm, with large vertical two piece hook, safety clutch, adjustable sewing foot stroke up to 9 mm, sewing foot lift in high needle position 20 mm, stitch length up to 9 mm, max. sewing speed 2.800 stitches/min.
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions sewing head: 780 x 370 x 790 mm
Net weight: 52 kg; gross weight: 62 kg
Dimensions stand set: MG55 xxxxxx: 1070 x 610 x 750 mm
Net weight: 47 kg; gross weight: 64 kg
Maße Gestelle: MG56 xxxxxx : 1300 x 800 x 430 mm
Net weight: 35 kg; gross weight: 50 kg
Dimensions complete: 1380 x 1050 x 1300 mm
Gross weight: 232 kg, Net weight: 115 kg (wooden crate)
Dimensions complete: 1200 x 800 x 1430 mm
Gross weight: 140 kg, Net weight: 100 kg (paperboard container)
