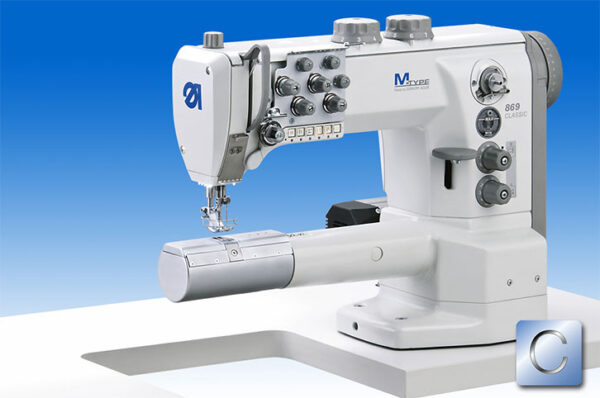

869-280322 Durkopp Adler

Twin needle lockstitch cylinder arm machine with bottom feed, needle feed and alternating feet, electropneumatic thread trimmer, add. electropneumatic switchable thread tension, integrated 2. stitch length, electropneumatic seam backtacking and sewing foot lift, electropneumatic quick stroke adjustment, integrated sewing light (LED)
***
cylinder arm diameter 78 mm, with large vertical two piece hooks, safety clutch, adjustable sewing foot stroke up to 9 mm with automatic speed adaption, sewing foot lift in high needle position 20 mm, stitch length up to 9 mm, max. sewing speed 2.800 stitches/min.
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions sewing head: 780 x 370 x 790 mm
Net weight: 53 kg; gross weight: 63 kg
Dimensions stand set: MG55 xxxxxx: 1070 x 610 x 750 mm
Net weight: 47 kg; gross weight: 64 kg
Maße Gestelle: MG56 xxxxxx : 1300 x 800 x 430 mm
Net weight: 35 kg; gross weight: 50 kg
Dimensions complete: 1380 x 1050 x 1300 mm
Gross weight: 232 kg, Net weight: 115 kg (wooden crate)
Dimensions complete: 1200 x 800 x 1430 mm
Gross weight: 140 kg, Net weight: 100 kg (paperboard container)
