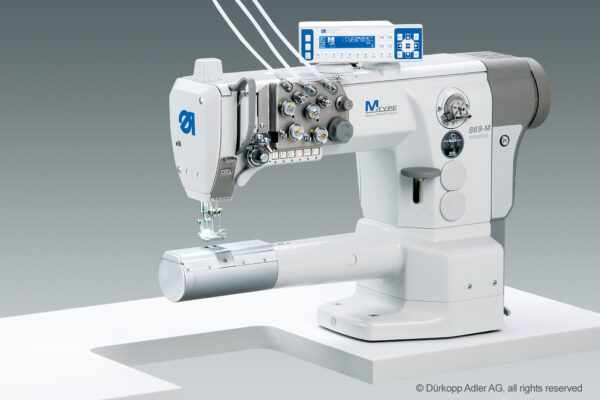

869-280922-M Durkopp Adler

Twin needle lockstitch cylinder arm machine with DA Direct Drive, bottom feed, needle feed and alternating feet, electromagnetic thread trimmer, motor-driven sewing foot lift and seam back tacking. With material thickness detection and programmable motor-driven adjusting elements for stitch length, foot stroke and sewing foot pressure. With programmable, electromagnetic thread tension device, jog dial for needle positioning, integrated winder, maintenance indicator and integrated sewing light (LED) with dimmer
***
with integrated sewing drive incl. DAC comfort control box and operation panel OP3000, intuitive graphic orientated user software for programming and activating up to max. 999 different seam programs each with max. 30 seam sections, with large vertical two piece hooks (L), safety clutch, adjustable sewing foot stroke up to 9 mm with automatic speed adaptation, sewing foot lift in high needle position 20 mm, stitch length up to 9 mm, max. sewing speed 2.800 stitches/min.
DIMENSIONS + WEIGHTS (standard, without special accessories)
=================================================
Dimensions sewing head: 780 x 370 x 790 mm
Net weight: 53 kg; gross weight: 63 kg
Dimensions stand set: MG55 xxxxxx: 1070 x 610 x 750 mm
Net weight: 47 kg; gross weight: 64 kg
Maße Gestelle: MG56 xxxxxx : 1300 x 800 x 430 mm
Net weight: 35 kg; gross weight: 50 kg
Dimensions complete: 1380 x 1050 x 1300 mm
Gross weight: 232 kg, Net weight: 115 kg (wooden crate)
Dimensions complete: 1200 x 800 x 1430 mm
Gross weight: 140 kg, Net weight: 100 kg (paperboard container)
