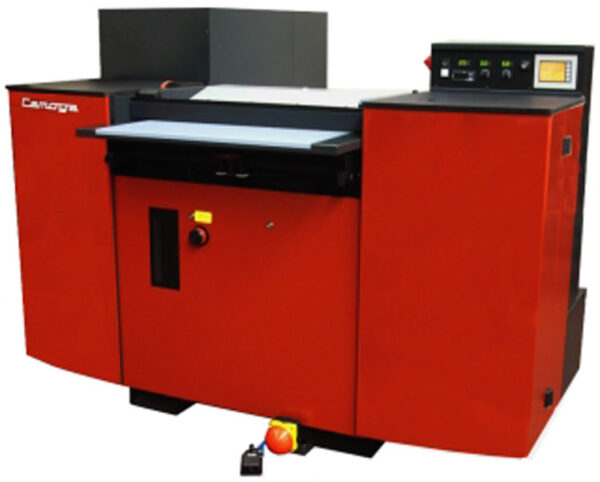

CAMOGA C620 high duty splitting machine

CAMOGA C620 high duty splitting machine laboratory splitting test specimen splitting with 620 mm splitting width, presser roll, regulable feeding speed, digital display
Divide/Line C620 splitters are designed and manufactured accordingly to the main principles of Camoga
products:
Quality of materials and of manufactured components allow to achieve and keep high performances for
a long time.
Simplicity of use and maintenance to limit the unproductive stops and the operation expenses.
Therefore they are very Reliable and Flexible machines, because without restriction of quality, they allow
high productivity with a perfect adaptation for the different working methods and the different features
of all kind of materials.
The wide range of models available meet all requirements, from the small firm to the big industry.
– No knife trend setting ••
– Controlled thermo Cooling System •• (option )
– Grinding unit
suitable for corundum or diamond wheels ••
easy: single micrometric control ••
flexible: fast setting of bevel width ••
– Guide gibs group with automatic adjustment
– Independent exhaustors for emery dust and working scraps
– Moving wheel on precision roller guides ••
– Working pressure fast adjustment ••
– Optical viewer to check bevel symmetry
– Digital thickness readout ••
– Handbook and service tools
– Ergonomic work position to reduce tiredness ••
– Safety devices compliance with CE standards
– Low noise level
– Fast replacement Guide Roll/Guide Bar
without removing joint ••
– Access to all components for an easy and rapid maintenance
Accessoires
Upper Feed Roll (8/0.6 mm)
Rubber Coated Bot Feed Roll
Alternative grinding unit: Diam/Corum
Mechanical Thickness Gauge
Equipments
Remover unit for split pieces
External electronic thickness gauge Thick-O-Mat
Model C 620
Feeding Speed Vario
Upper Feeding Std
Toe-Split No
Working Pressure Pneu
Thermo Cooling System Option **
Alarms Touch screen
Instr. & Messages Touch screen
Installed Power 4.2 / 5.5 kW (with option)
Net Weight 750 kg
Gross Weight 985 kg
Machine Dimensions 1.9×1.6×1.6 m
Case Dimensions 2.1×1.55×1.65 m
** Options must be specified on order
Technical Data
Working Width 620 mm
Max Thickness 8 mm
Min Thickness 0.6/0.2 mm
Knife Dimension 0.8*50*3800 mm
