COLLI GP20 TRIMMING MACHINE
COLLI GP20 TRIMMING MACHINE

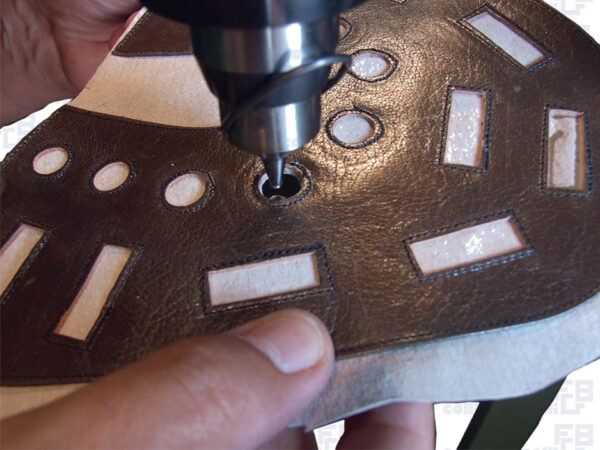

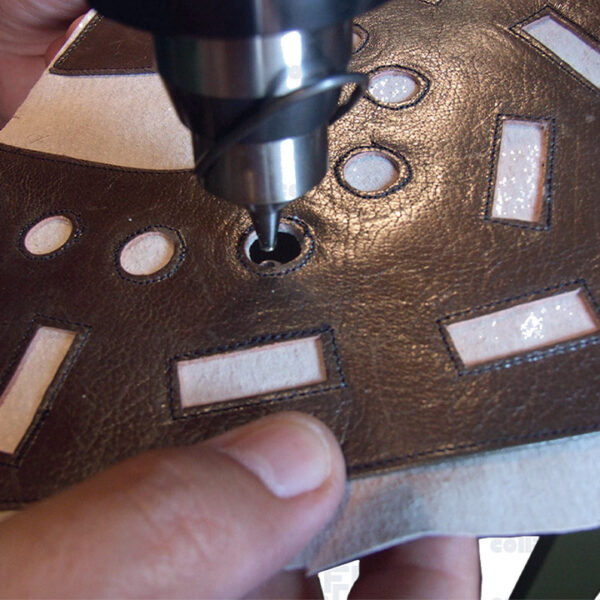

This machine is particularly suitable for trimming the lining in the round and oval holes.

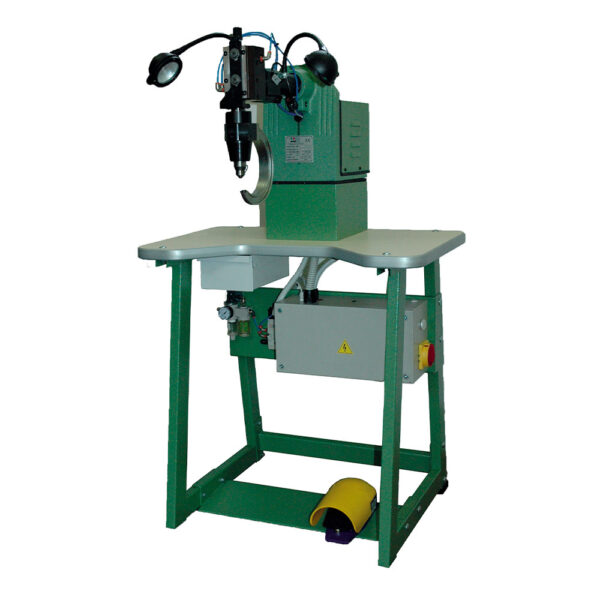

The machine is settled on column for trimming finished shoes and on table for trimming uppers.
It is possible turning the counter-punch rest during the working to trim in any point of the shoe or upper.
The machine is adjustable to allow the trimming of linings with different thickness.
The machine is equipped with a device for sharpening the punch and the counter-punch.
| Three-phases motor | 0,25 kW |
| Lighting | 12V – 20W |
| Strokes of the punch | 6500 al minuto primo |
| Noise emission | Low |
| Compressed air consumption | 0.2 mc/h. |
| Operating pressure | 4 bar |
| Daily output | according to the type of production. |
| Net weight | 100 kg. |
| Dimensions |
45 x 65 x 140 cm (column) 80 x 70 x 135 cm (table). |
| Segment of production | Shoes / Technical Textiles |
|---|---|
| Manufacturer | |
| Тип операции | Подрезка |
| Тип Изделия | Обувь – подошвы / Обувь – сандалии |
