Cometa VBO XXS EVO DELTA TRIPLE FEEDING Single needle, lockstitch sewing machine with oscillating arm

Cometa VBO XXS EVO DELTA TRIPLE FEEDING Single needle, lockstitch sewing machine with oscillating arm

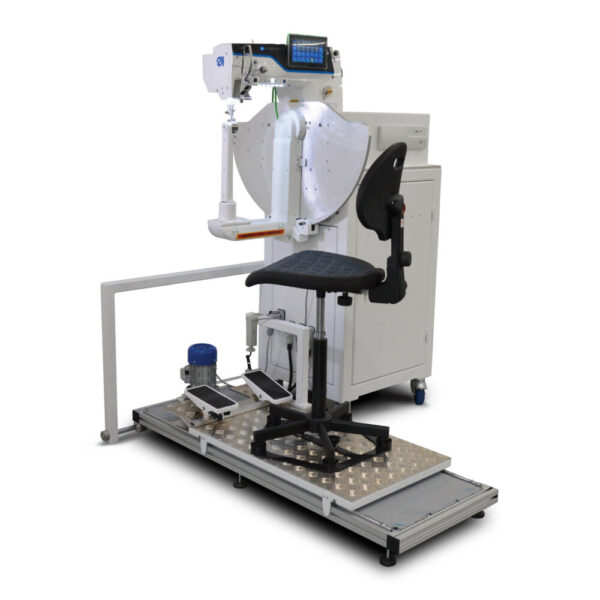

VBO XXS EVO DELTA TRIPLE FEEDING

Machine with oscillating arm, with COMETA hook with needle guard, triple feeding, with XXS post bed which allows to stitch bags of very small dimensions and very small corners.
Equipped with the M-TYPE DELTA head, it guarantees the latest control technology for precise and repeatable sewing processes.

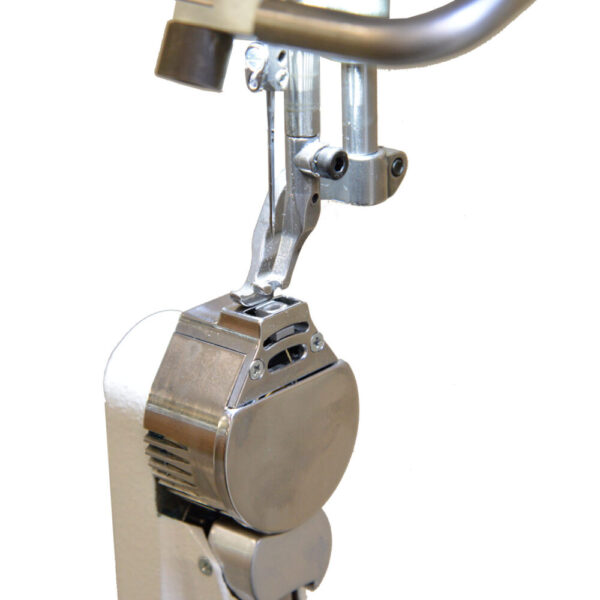

The machine allows the sewing of side finishes very close to the borders thanks to the needle plate that has been raised and, above all, to the feed dog which enables a constantly linear feeding with the result of a perfectly uniform stitching.
In addition, the revolutionary oscillating arm, synchronized with the operator’s chair, allows the easy inserting of very small or very big bags.

Post Height 400 mm
Post diameter 44 mm
Sewing maximum speed 1400 rpm

Sewing head in use

DA-D669-180912-DELTA (4669 990013)

Oscillating arm machine (on horizontal axis), horizontal hook, triple feed.

Complete with motor, Kessler support, standard table, stepper motor-controlled presser foot lift, integrated LED light, Automatick bartacking kit, integrated motor, X-Z axis guide, electronic JOG DIAL handwheel, and electromagnetic thread take-up device.
