Cometa VBO XXS MINI H 270 Double feeding, single needle lockstich sewing machine with oscillating arm and XXS mini post bed

Cometa VBO XXS MINI H 270 Double feeding, single needle lockstich sewing machine with oscillating arm and XXS mini post bed

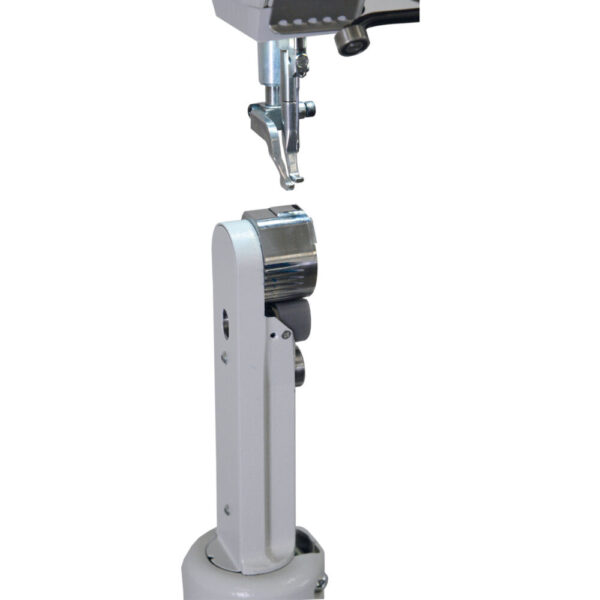

COMETA hook with needle guard, triple feeding, with XXS mini post bed which allows to stitch bags of very small dimensions and very small corners. The Hook is to the left of the needle.
It is suitable for stitching bags, travelling bags, cases, briefcases, boots and footwear in general.

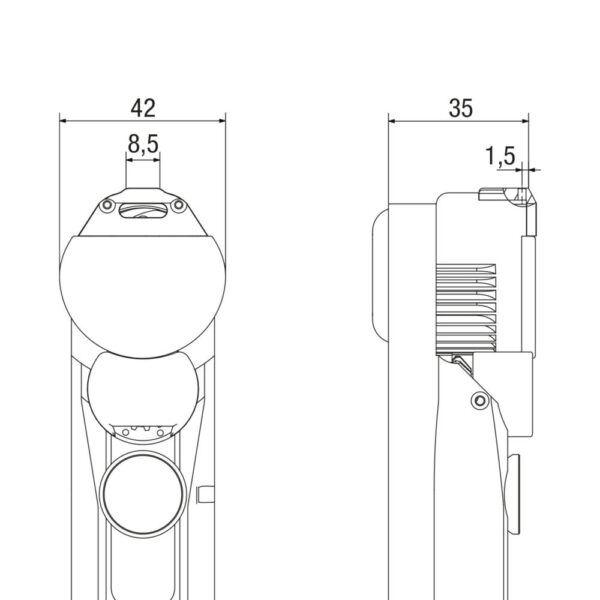

The machine allows the sewing of side finishes very close to the borders thanks to the needle plate that has been raised and, above all, to the feed dog which enables a constantly linear feeding with the result of a perfectly uniform stitching.

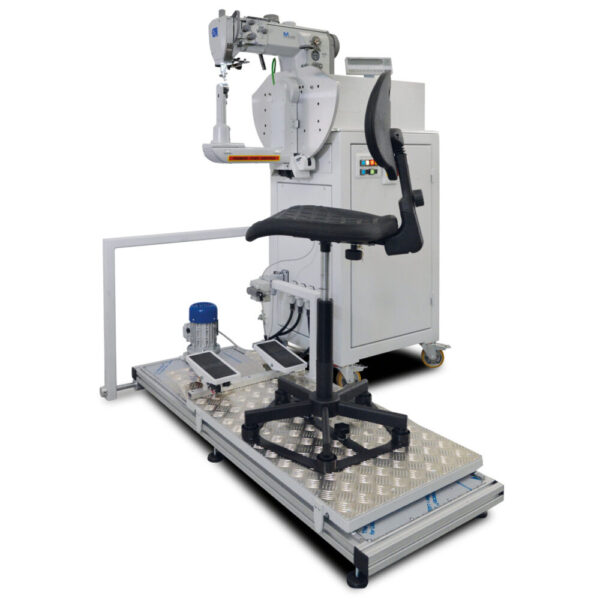

In addition, the revolutionary oscillating arm, synchronized with the operator’s chair, allows the easy inserting of very small or very big bags.

Post Height 270 mm
Sewing maximum speed 800 rpm



Possible sewing heads in use:

Sewing head DA-669-180010-ECO (0669 990001)

Oscillating-arm machine, double feed, 1-needle column, arm movement synchronized with operator’s chair. Complete with LED light, pneumatic presser foot lifter. COMETA hook.

OPTIONAL-additional

·         Automatic bartacking kit

·         Micrometric guide

·         Electronic handwheel

Sewing head DA-669-180312-CLASSIC (0669 990003)

Includes double stitch length, pneumatic presser foot lifter, integrated LED light, Automatic bartacking.

OPTIONAL-additional

·         Electronic handwheel

·         Micrometric guide

Sewing head DA-D669-180912-DELTA (0669 990013)

Includes stepper motor-controlled presser foot lift, integrated LED light, Automatick bartacking kit, integrated motor, X-Z axis guide, JOG DIAL electronic handwheel.
