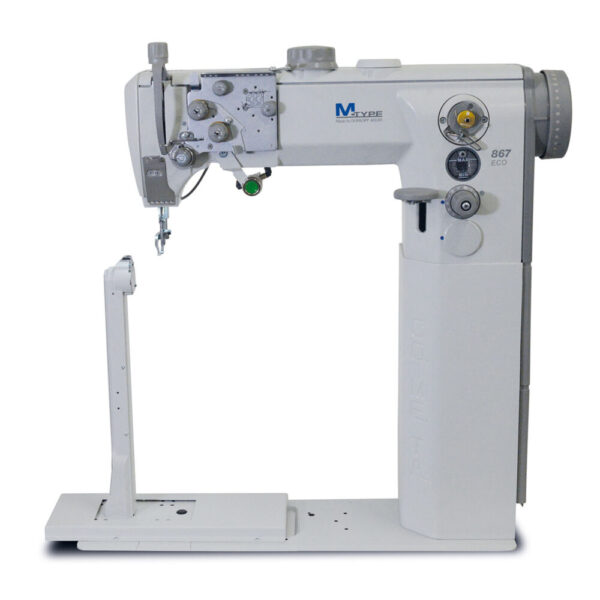

Cometa VCA 40 02 867 XXS CS – RELEASABLE Sliding post bed, bottom feed, needle feed and alternating feet sewing machine with height adjustment up to 9 mm

Cometa VCA 40 02 867 XXS CS – RELEASABLE Sliding post bed, bottom feed, needle feed and alternating feet sewing machine with height adjustment up to 9 mm



Newly designed XXS sliding post bed machine, bottom feed, needle feed and alternating feet with height adjustment up to 9 mm. CO.ME.TA. hook with needle guard. Lockstitch, complete with pneumatic foot lifter. Post bed and needle plate dimensions have been reduced to the minimum to enable the stitching of borders and very narrow corners, impossible to be processed with ordinary machines, besides to a further reduced stitching distance between needle plate and needle.

Insertion and extraction of the material to be worked out is simplified by the post bed which can automatically go out of the working field.
The new post bed has been made with highly innovative materials, among which steel K70.
It is suitable for sewing bags, travelling bags, cases, briefcases, boots and footwear in general.
Column height 400 mm
Maximum sewing speed 1000 rpm

 Possible Machine head subclasses:

 867-190020 (0867-990001) XXS sliding-column machine with horizontal hook.

The machine head DA-867-190020-ECO is in use. Available column heights: 400 mm. Complete with motor, support, standard table and pneumatic foot lift.

OPTIONAL additional:

• Automatic Bartacking kit
• Micrometer guide
• Electronic handwheel
• LED light



867-190322 (0867 990003) The machine head DA-867-190322-CLASSIC is in use

Includes double stitch length, pneumatic presser foot lift, integrated LED light, micrometer guide, and Automatic Bartacking kit.

OPTIONAL additional:  Electronic handwheel



D867-190922 (4867 990001) The machine head unit DA- D867-190922-DELTA is in use. Includes stepper motor-controlled foot lift, integrated LED light, Automatic Bartacking kit, integrated motor, X-Z axis guide, JOG DIAL electronic handwheel



XXS sliding post bed dimensions

Post Bed Height 400 mm
Post Bed Width 44 mm
Post Bed Depth 36 mm
