Cometa VCA 40 02 XXS+3cm post bed, bottom feed, needle feed and alternating feet sewing machine with height adjustment up to 9 mm

Cometa VCA 40 02 XXS+3cm post bed, bottom feed, needle feed and alternating feet sewing machine with height adjustment up to 9 mm

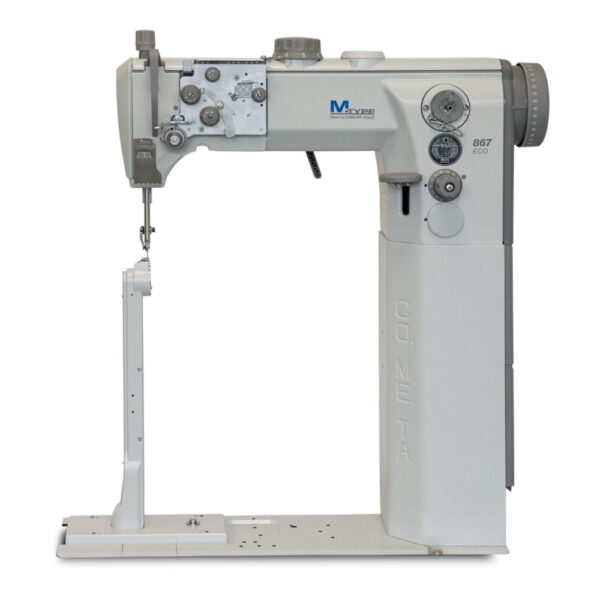

Newly designed XXS post bed machine, bottom feed, needle feed and alternating feet with height adjustment up to 9 mm.
With 3 cm more in height, it allows the passage of sewing items of greater thickness and dimensions than standard machines.
CO.ME.TA. hook with needle guard. Lockstitch, complete with pneumatic foot lifter. Post bed and needle plate dimensions have been reduced to the minimum to enable the stitching of borders and very narrow corners, impossible to be processed with ordinary machines, besides to a further reduced stitching distance between needle plate and needle.
The new post bed has been made with highly innovative materials, among which steel K70.
It is suitable for sewing bags, travelling bags, cases, briefcases, boots and footwear in general.
Column height 400 mm
Maximum sewing speed 1000 rpm

Possible Machine head subclasses:

867-190020 (0867-990001) XXS fixed-column machine with horizontal hook.

The machine head DA-867-190020-ECO is in use. Available column heights: 400 mm. Complete with motor, support, standard table and pneumatic foot lift.
OPTIONAL
• Automatic Bartacking kit
• Micrometer guide
• Electronic handwheel
• LED light

867-190322 (0867 990003) The machine head DA-867-190322-CLASSIC is in use
Includes double stitch length, pneumatic presser foot lift, integrated LED light, micrometer guide, and Automatic Bartacking kit.
OPTIONAL Electronic handwheel

D867-190922 (4867 990001) The machine head unit DA- D867-190922-DELTA is in use. Includes stepper motor-controlled foot lift, integrated LED light, Automatic Bartacking kit, integrated motor, X-Z axis guide, JOG DIAL electronic handwheel

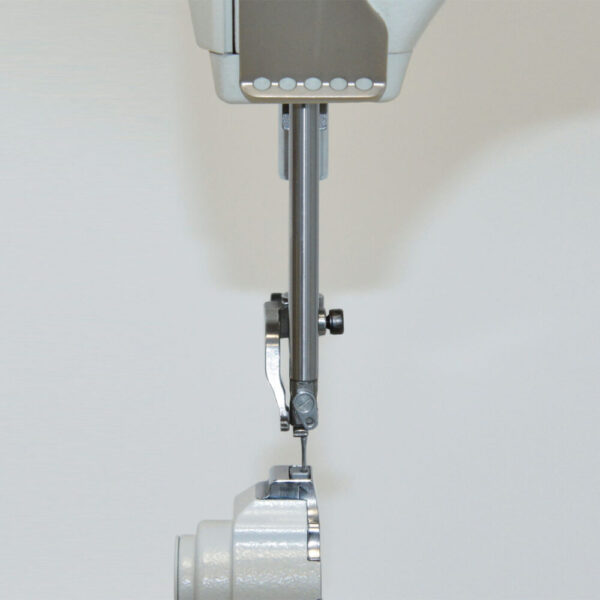

XXS post bed dimensions
Post Bed Height 400 mm
Post Bed Width 41 mm
Post Bed Depth 36 mm
