Duerkopp Adler 755S – Sewing unit for runstitching of rectangular piped pockets, flap pockets and welt pockets

755S | Sewing unit for runstitching of rectangular piped pockets, flap pockets and welt pockets

Innovative and powerful piping technology

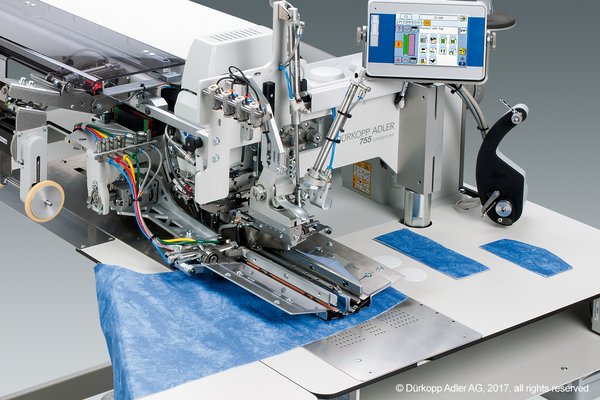

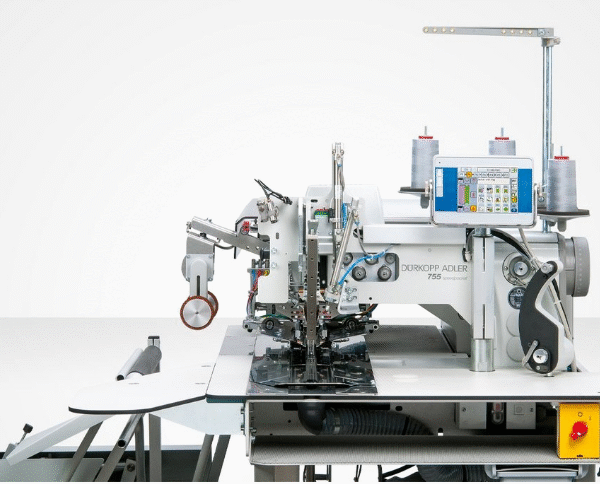

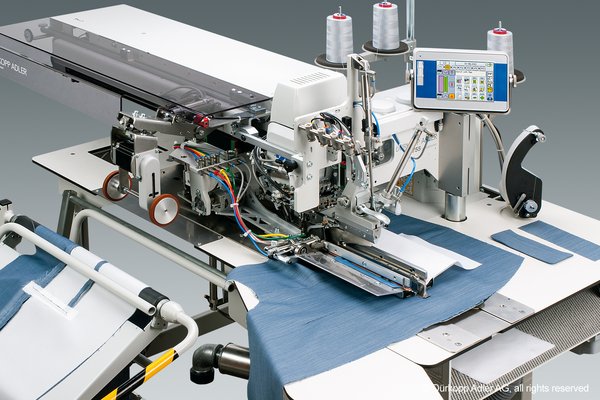

The efficient piped pocket sewing unit 755-S is a must for any standardized production of rectangular piped pockets, flap and welt pockets. The manual feeding of the additional parts in conjunction with optional additional equipment increases the performance of your production and increases the flexibility of the sewing unit.

Your benefits at a glance

·         High-quality control system with DAC comfort. Machine parameters can be copied via USB flash drive; Saving of machine parameters in machine-ID.

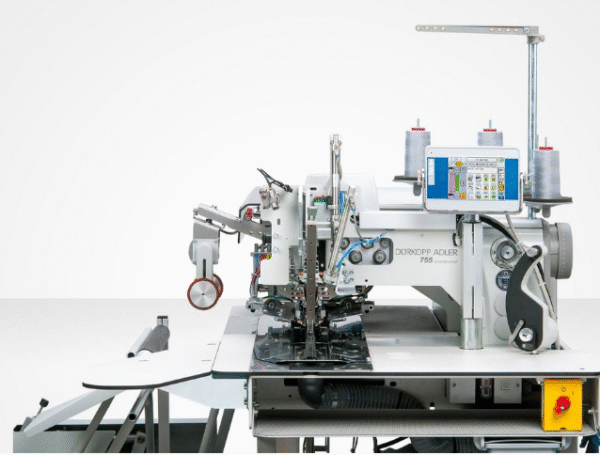

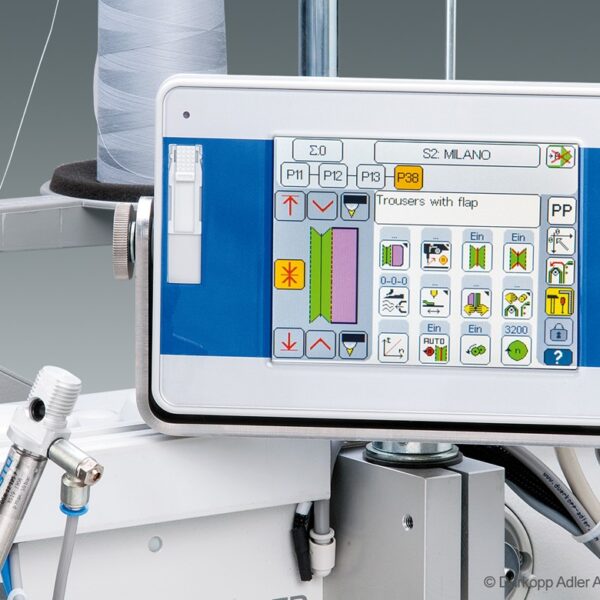

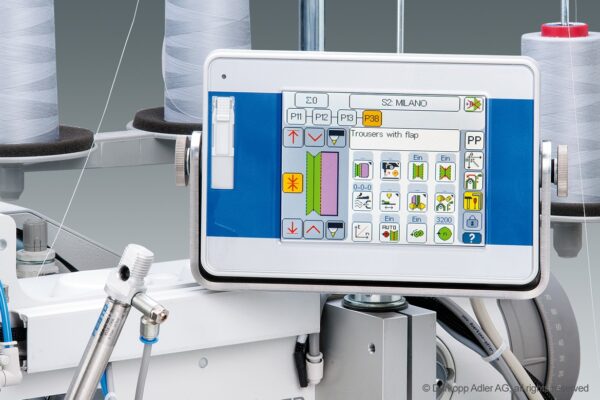

·         Technical highlight – Touch-Screen OP7000 with colour graphic display. Free programmable pocket parameters; max. 99 seam programs; 8 standard programs for different applications; max. 20 sequences with up to 8 seam programs; freely designable user interface for functions.

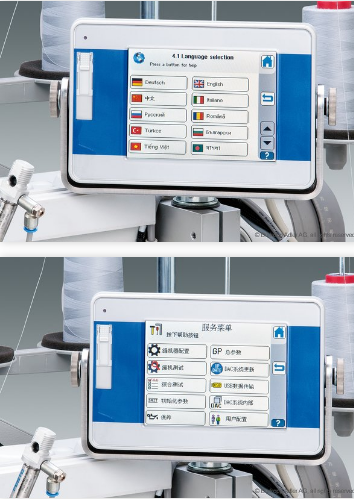

Language selection: The 755 offers as standard a language selection of 15 languages: D, GB, E, F, P, I, TR, CN, VN, RU, HI, BN, RU, BG and RO.

·         Needle distances from 6 – 30 mm can be selected, short conversion time from one to the other needle distance (approx. 30 min.)

·         Stepper motor driven center blade drive with extended flexibility in material use due to increased material flow. Stepper motor-controlled middle blade drive with increased flexibility in material use due to increased material passage and adjustable stroke for adaptation to the material thickness – reduced knife wear.

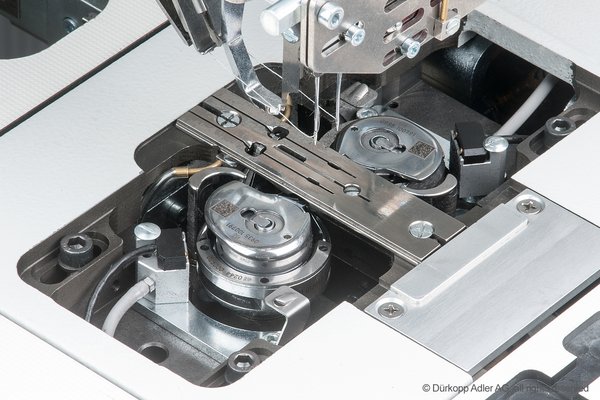

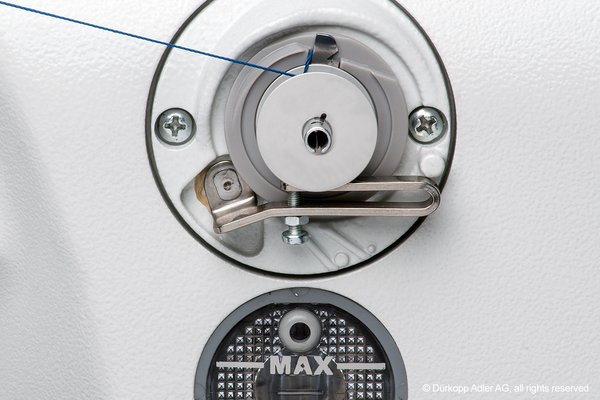

·         Reduced bobbin change due to double bobbin volume with large vertical hook (Ø = 26 mm). Large three-piece hook with capsule fan (Ø 26 mm) allows a reduced bobbin change due to double bobbin volume. A small vertical hook (0755 150064 / Ø = 22 mm) is available as an option.

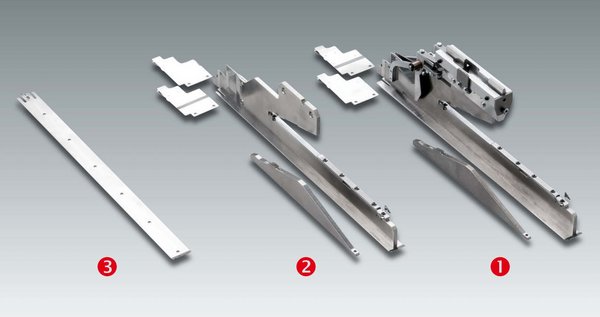

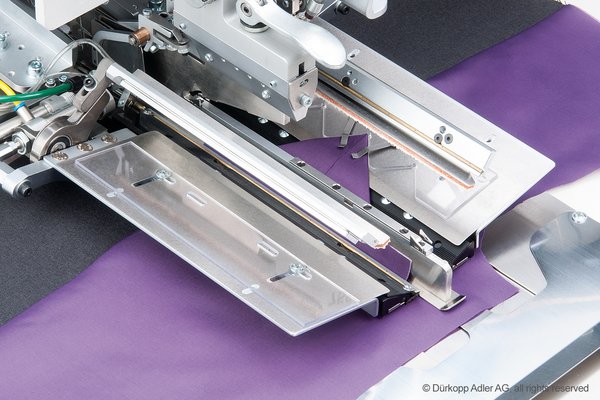

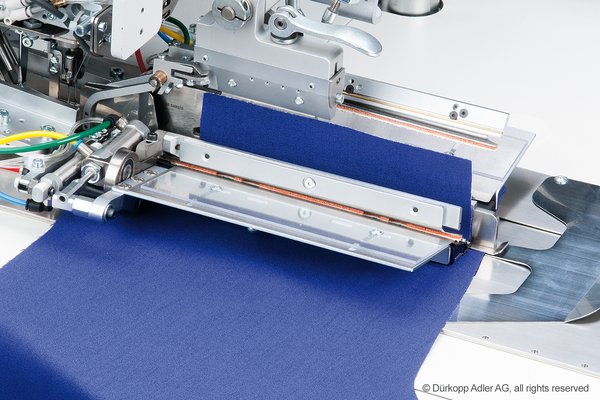

·         New folder concept as modular system . The complete folder (1) consists of a folder ins ert (2) with sole (3). In order to reduce the costs of changing the folders, it is possible to change the folder ins ert or the sole only.

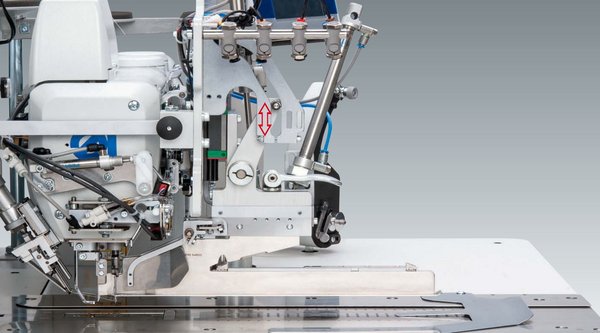

·         Optimized folder lowering – for tension free folder movement onto the material

·         The folder lowering is optimized by its horizontal movements before reaching the transport clamp. This improves the folding process of the piping strip and prevents the material from slipping during the folding process.

·         Quick-release fastener for changing the folders without tools

·         Quick-change connector (option) for quick replacement of heads with frequent needle distance changes

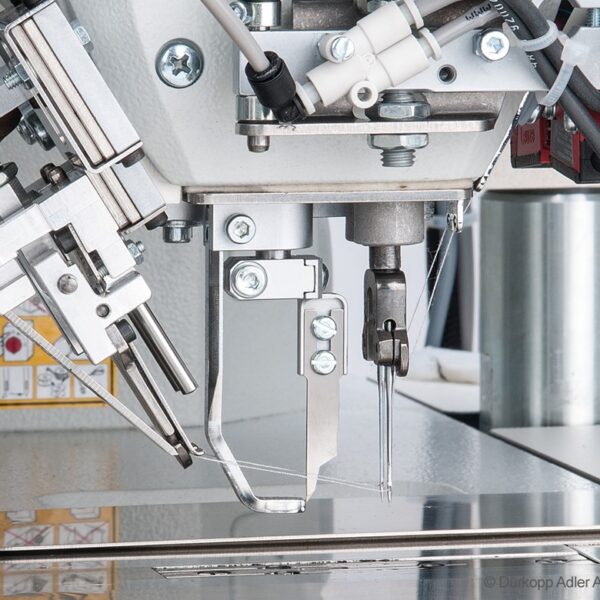

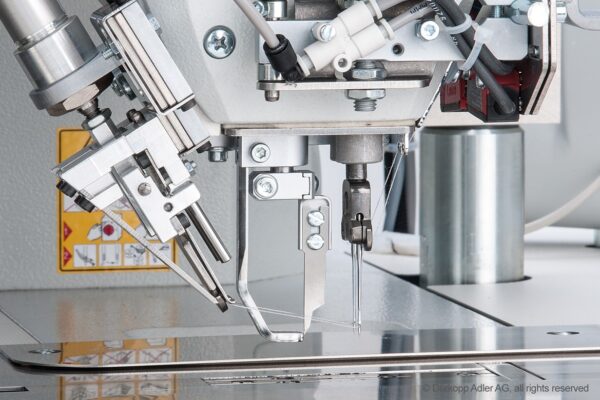

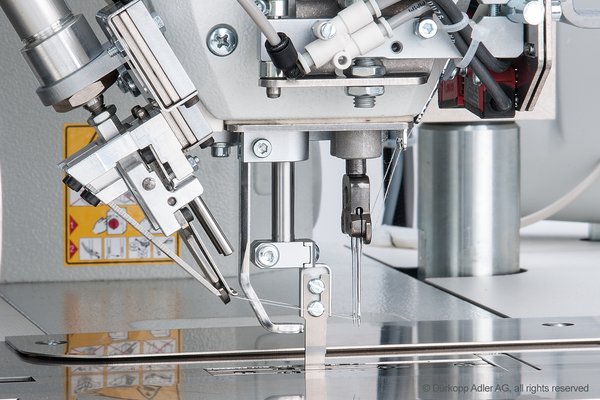

·         Maximum precision in the corner cuts due to easy-to adjust corner knife station option. Corner knife system (Option 755 337534). Maximum precision of straight corner incisions due to easily adjustable corner knife system, can be swivelled out for cleaning and maintenance.

·         Processing of trousers pockets with extra wide piping strips up to 60 mm, with integrated blowing device (option) Over-wide piping strips. Optimized folder for over-wide piping strips for trousers pockets with extra wide piping strips up to 60 mm on the left. The integrated blowing device (option) serves to raise the extra wide piping strips. K35-LR180 – Part se t 0755 590804 K35-LR220 – Part se t 0755 590814.

·         Further advantages

– Save the machine parameters in the machine ID*

– Safe and clean winding of the thread when spooling with integrated bobbin winder with winding aid

– Fast color changing possible by separately driven bobbin winder (option) – Large arm passage (335 mm) on the right hand side of the needle

– High sewing safety thanks to needle thread and bobbin thread monitor in the standard of the sewing unit

– Flap scanning via photocell

– Pocket sizes from 20 – 240 mm selectable (depending on sewing equipment)

– Pressure monitor is included as standard

– UPS – uninterrupted power supply (option)

Examples of use

·         Double piped pockets in back trousers

Accessories: Piping strips, pocket bags (underlaid); approx. 2,200 – 2,600 pockets in 480 min.

·         Single piped pockets in hind trousers

Additional parts: piping strip, pocket bag (positioned underneath) approx. 2,200 – 2,600 pockets in 480 min.

·         Single- or double piped pockets withflap in hind trousers

Additional parts: flap, piping strip, pocket bag (positioned underneath); approx. 1,500 – 1,800 pockets in 480 min.

·         Single- or double piped pockets withflap in hind trousers

Additional parts: flap, piping strip, pocket bag (positioned underneath); approx. 1,500 – 1,800 pockets in 480 min.

·         Lining inside pockets

Additional parts: piping strip, 2 pocket bags; with lining flap triangle: approx. 1,200 – 1,400 pockets in 480 min.; without lining flap triangle: approx. 1,400 – 1,600 pockets in 480 min.



Technical Specifications:

Feature	Technical Details	Standard / Optional
Stitch Details
Stitch length	0.5 – 4.5 mm	Standard
Stitches/min.	3,200	Standard
Sewing Material	LM / M / MS	Standard
Seam length	20 – 240 mm (depending on sewing equipment)	Standard
Twin needle spacing	6 – 30 mm (other by request)	Standard
Stitch Type & Hooks
Lockstitch	(301)	Standard
Horizontal hook	Large (L, Ø 26 mm)	Standard
Horizontal hook	Small (S, Ø 22mm)	Optional
Automated Functions
Thread trimmer	Automatic	Standard
Corner incision device	Straight	Optional
Centre knife with counter knife	Separately motor driven	Standard
Stitch condensing	Automatic	Standard
Monitoring Systems
Needle thread monitor	Included	Standard
Bobbin thread monitor	Included	Standard
Bobbin thread control	Included	Standard
Sensing & Positioning
Reflecting light barrier	Automatic sewing start at fabric beginning	Standard
Reflecting light barrier	Automatic sewing stop at fabric end	Standard
Suction device for positioning	For exact fabric positioning	Optional
Fabric Handling
Bundle clamp with rest table		Optional
Control & Interface
Program control	Operating panel OP7000 with graphic display and touch screen	Standard
Pneumatic Requirements
Air requirement per stroke	6	Standard
Air pressure	6 bar	Standard
Needle Specifications
Needle system	134-35/DPX	Standard
Needle size	80-110	Standard
Electrical Specifications
Nominal voltage	1x230V, 50/60 Hz	Standard
Rated power	500 W	Standard
Weight & Dimensions
Weight, sewing head	240 kg	Standard
Weight, complete	340 kg	Standard
Packaging size (L/W/H)	1830 mm / 1230 mm / 1590 mm	Standard
