Durkopp Adler 513 – CNC-controlled automatic lockstitch bartacker

Duerkopp
Adler 513 | CNC-controlled automatic lockstitch bartacker

Ideal solution for bartacking operations

The step motor-controlled clamp lift ensures shorter
cycletimes and thus increased efficiency. Furthermore, the easy operation and
the simple adaptation of the bartack patterns to individual requirements allow
flexible and fast sewing in light to medium weight fabric.

Your benefits at a glance

·

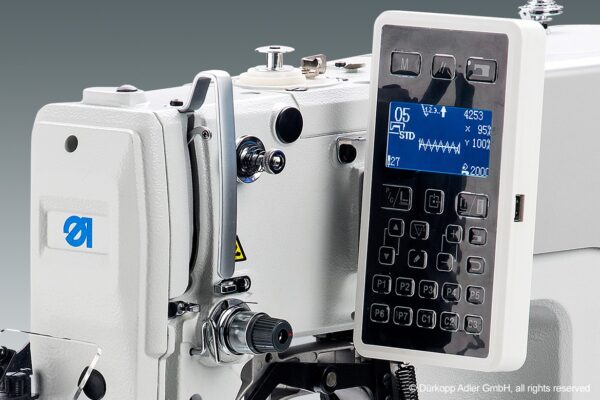

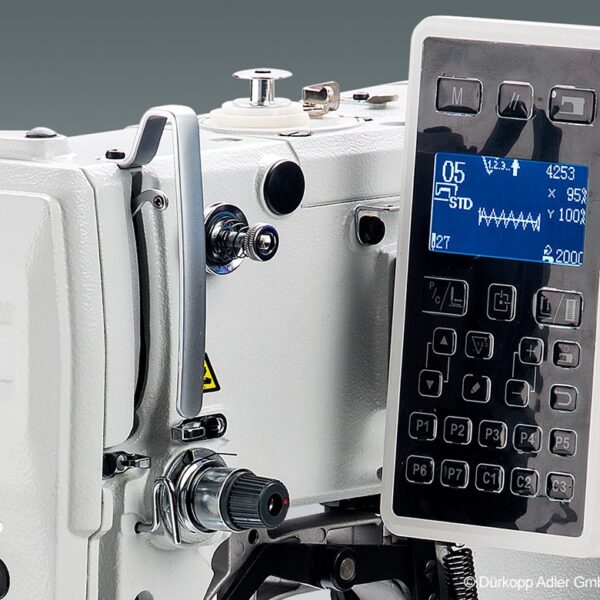

LCD Control panel. Convenient for
editing, saving and recalling bartack shapes

·
Symbols as well as the simple design make the
control panel very user-friendly. The standard bartacks can be rapidly adapted
to the different applications and stored, if required. Furthermore, modified
standard bartack patterns and sequence programs can be assigned to the
favourite buttons so that they are quickly retrievable.

·
Short thread trimmer. The short thread
trimmer enables a remaining thread length of only ~ 3 mm. This ensures that no
separate trimming operation is required.

·
Conversion kit “Heavy” (optional). Superior
quality, excellent performance

·
The optionally available conversion kit “Heavy”
allows bartacking operations also in medium to heavy-weight materials.

·
No pollution. Clean clothes and clean
environment

·
The fully sealed internal lubrication mechanism
prevents pollution of the sewing material. This also reduces the noise level
during operation. The targeted distribution of the lubricants extends the
service life and helps to save resources.

·
“Pattern Design Software”
(optional). The optionla “Pattern Design Software” (parts-no.
0513 590024) enables easy and fast creation of individual tack patterns on the
PC. The tack patterns can be easily transferred to the 513 control unit via an
USB flash drive.

·

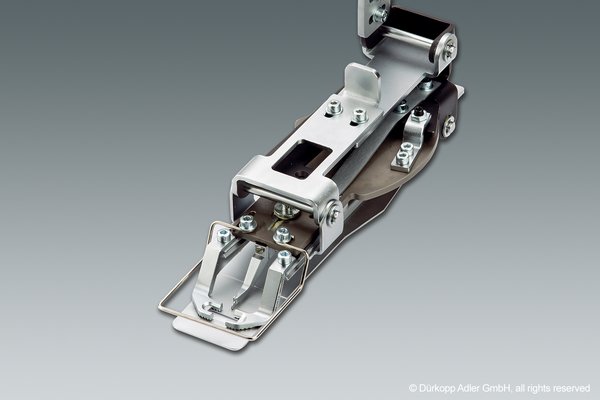

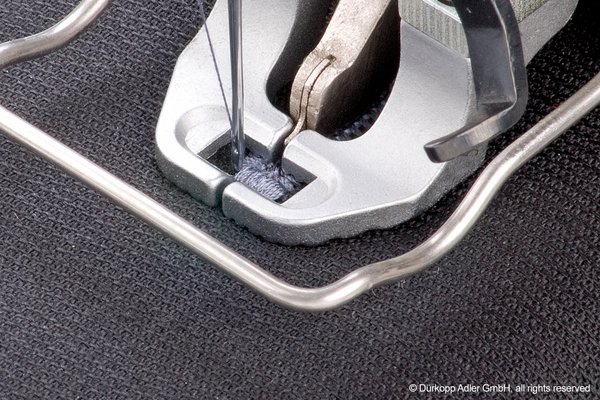

Contraction clamp (optional).  Optional contraction clamp for buttonhole
bartacks (part no. 513 590014) The automatic bartacker can optionally be
equipped with a contraction clamp for bartacking buttonholes. When the clamp is
lowered, the arms of clamp presses the buttonhole together. The buttonhole is
thus perfectly closed after bartacking.

·
Versatile applications for bartacking

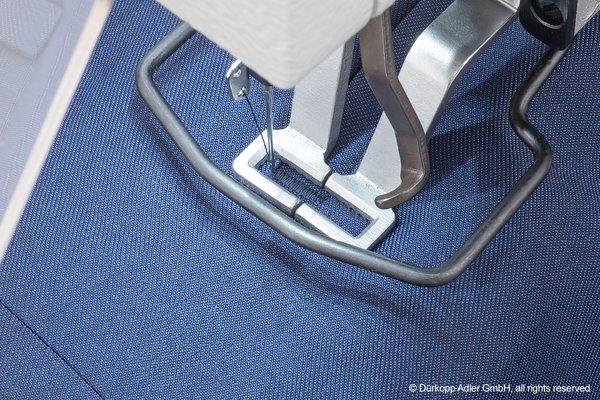

oprations. The automatic bartacker 513 is equipped as standard with the
clamping foot set no. 2, which is ideally suited for cross tacking in standard

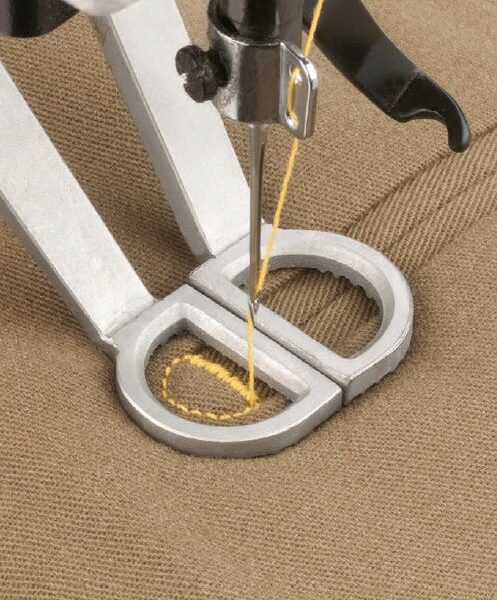

material. The clamping foot set no. 18 (part no. 0512 220184) for double
D-tacking in piping pockets is optionally available

·
Stepper motor controlled clamp lifting. Short
cycle time for higher efficiency due to stepper motor-controlled clamp release.

Examples of use

·

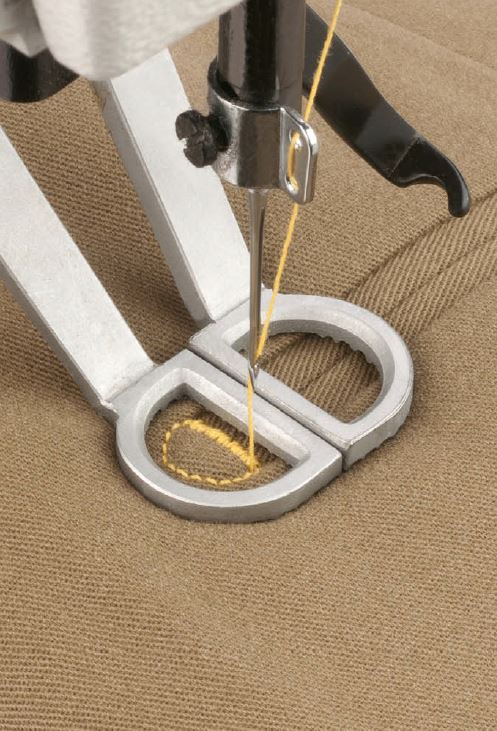

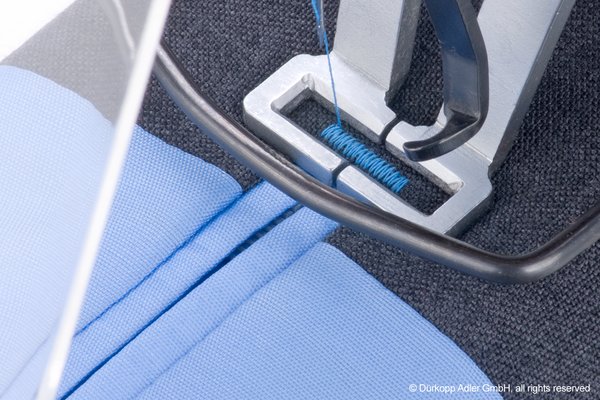

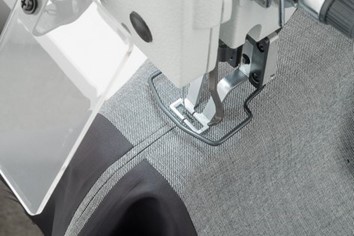

Pocket openings. Clamp foot set no. 18
(part no. 0512 220184) for double D-tack on piped pockets is available as an
option.

·

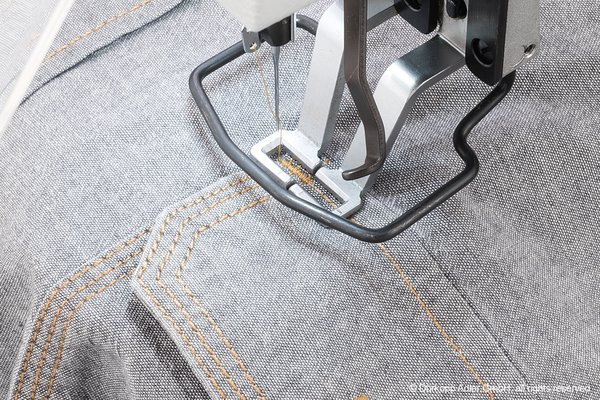

Pocket flaps. The optional “Pattern
Design Software” (part no. 0513 590024) allows easy and quick creation of
individual tack patterns on the PC. The tack patterns can easily be transferred
to the control unit of the 513 via USB stick.

·

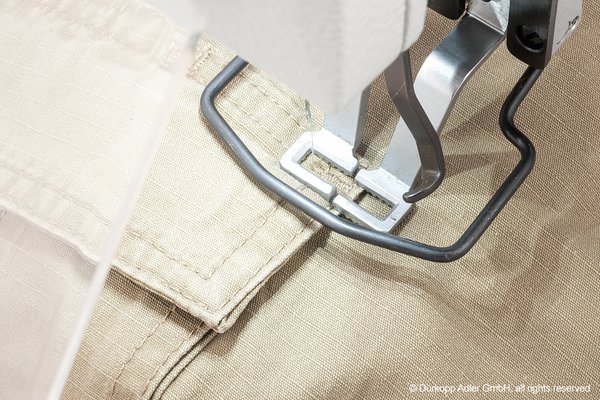

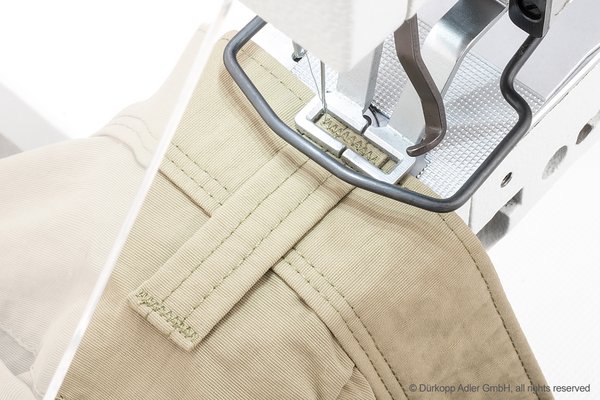

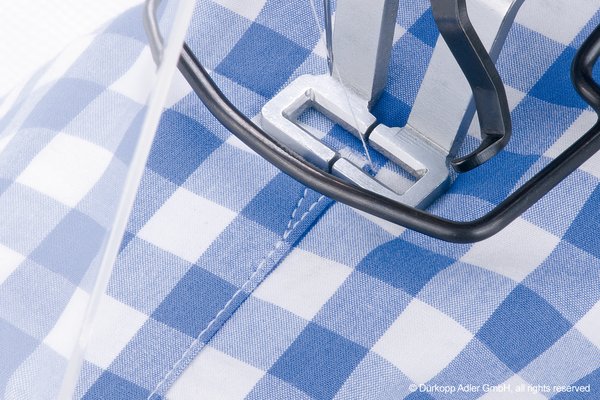

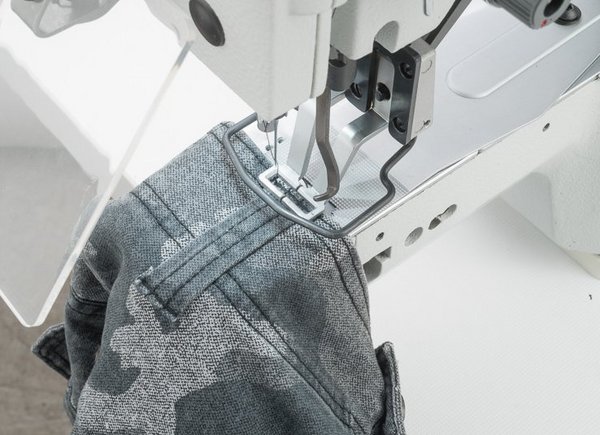

Belt loops. The clamping foot set no. 20
(option, part no. 0512 220204) is predestined for tacking belt loops.The
clamping foot set no. 2 (part no. 0512 220024) is suitable for standard
crossbars and can be used for bar sizes up to max. 20.0 mm x 4.5 mm – for a
wide range of applications.

·

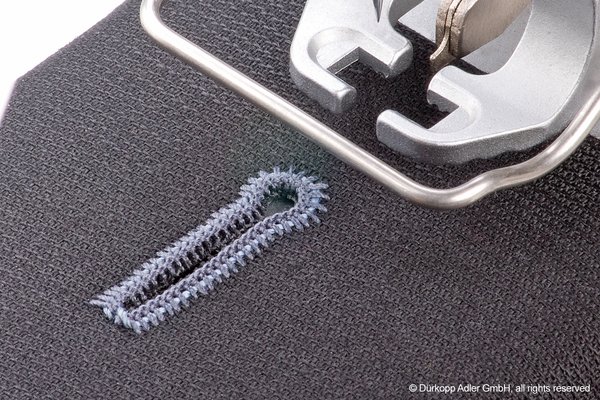

Buttonhole tack. Buttonhole bartack
Optional contraction clamp for buttonhole bartack (part-no. 513 590014): The
automatic bartacker can be optionally equipped with a contraction clamp for
bartacking buttonholes. When lowering the clamp, the clamp pairs press the
buttonhole beads together. The buttonhole is thus perfectly closed after
bartacking.



Technical specifications

Feature	Technical Details
Stitch Length	0.1 – 10 mm
Stitches/min.	3,200 *
Sewing Material	LM or MS
Sewing Field Size	40 x 30 mm
Needle Type	Single Needle
Stitch Type	Lockstitch (301)
Hook Type	Horizontal, Small (S, Ø 22mm), CB Hook
Feed Mechanism	Clamp- or Rail Top Feed
Thread Trimmer	Short, 3mm
Counters	Piece counter/ Bobbin capacity counter
Thread Wiper	Yes
Clearance When Lifting	17 mm
Standard Seam Patterns	100
Memory Capacity (Stitches)	16,000
Storage Locations for Modified Seams	100
Number of Sequences	25
Seam Patterns per Sequence	30
CNC Contour Control with Program Control	Yes





Feature	Technical Details
Needle system	134
Needle size	80-110
Synthetic Thread Size	50/3 – 150/3
Cylinder arm machine clearance	C=180 / D=85
Nominal voltage	1x230V, 50/60 Hz
Rated power	500
Weight, sewing head	58 kg
Packaging size (L/W/H)	870 / 430 / 890 (mm)
