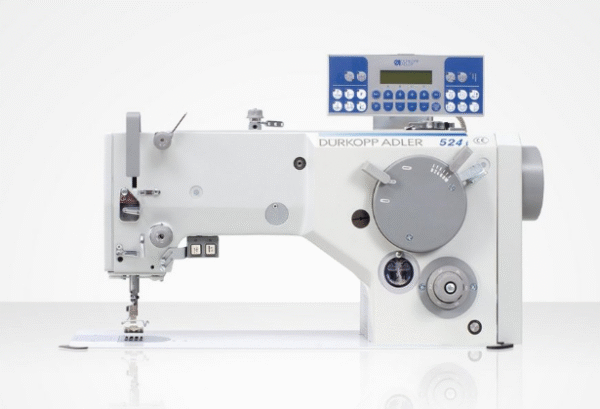

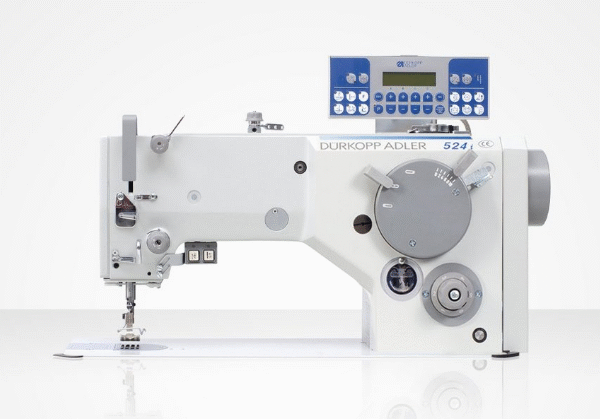

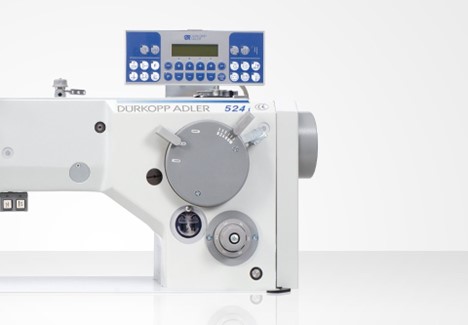

Durkopp Adler 523i / 524i – Zigzag flatbed machines for light and medium weight applications
Durkopp Adler 523i / 524i | Zigzag flatbed machines for light and medium weight applications
Ideal sewing characteristic, universal use, easy handling and high reliability – all these features are required for zigzag machines. The single needle lockstitch zigzag sewing machines classes 523i / 524i with bottom feed fulfil these demands for light and medium weight applications.
Your benefits
More efficiency in production thanks to automatic equipments for thread trimming, back-tacking and presser foot liftNeedle bar positioning on left, middle or right side of the throat plate for universal operations
Easy adjustment of zigzag width with low force
Automatic lubrication and a reservoir in the machine arm reduce maintenance, guarantee correct lubrication doses and protect the hook against wear
Available with large capacity hook with maximum zigzag width of 10 mm (524i) or standard hook with maximum zigzag width of 6 mm (523i)
Optimized thread trimming system with adjustable bobbin break spring for better stitching results
Examples of use

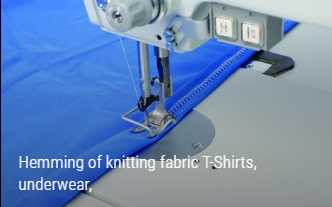

· Hemming of knitting fabric T-Shirts, underwear.
· Xtremly resilient seams for protective clothing and protectors
· Close to the edge processing for patch attaching and ornamental elements
· Processing of collar for jacket, blouses, elbow patches
Technical specifications
|
Feature |
523i-411 |
523i-447 |
524i-911 |
524i-947 |
|
Stitch Length 5 mm |
||||
|
Stitches/min 4,000 |
||||
|
Sewing Material |
L / M |
L / M |
M / MS |
M / MS |
|
Hook Type |
Horizontal, Small (S, Ø 22mm) |
Horizontal, Small (S, Ø 22mm) |
Horizontal, Large (L, Ø 26 mm) |
Horizontal, Large (L, Ø 26 mm) |
|
Throw Width |
6 |
6 |
10 |
10 |
|
Feed Type – Bottom feed (top puller feed -option) |
||||
|
Thread Trimmer |
✓ |
✓ |
||
|
Seam Backtacking – Yes |
||||
|
Sewing Foot Lift |
Option – Automatic or Pedal controlled |
Automatic or Pedal controlled |
Option -Automatic or Pedal controlled |
Automatic or Pedal controlled |
|
Clearance when lifting 12mm |
||||
|
DA-sewing drive |
Like Option: Available without DA drive / available with separate motor packages |
|||
|
Long arm versions |
C=1050 / D=183 |
C=1050 / D=183 |
||
|
Needle System |
134 |
|
Needle Size |
80-110 |
|
Synthetic Thread Size |
20/30 |
|
Cotton Thread Size |
30/30 |
|
Dimensions (L/W/H) |
1.060 / 550 / 1.700 |
|
Flat Bed Machine Clearance |
C=265 / 120 |
|
Post Bed Machine Clearance |
Option |
|
Nominal Voltage |
1x230V, 50/60 Hz |
|
Power Consumption |
1 |
|
Weight, Sewing Head |
40 |
|
Weight, Complete |
80/90 |
| Stitch type | Lockstich |
|---|---|
| PLATFORM TYPE | Flat bed |
| Needle system | 134 |
| Segment of production | Garment / Technical Textiles |
| Manufacturer | |
| Type of hook | Horizontal |
Be the first to review “Durkopp Adler 523i / 524i – Zigzag flatbed machines for light and medium weight applications”
Related products
-
Durkopp Adler 670 – Optimized workstation for attaching sleeve lining through the shoulder pad
-
Durkopp Adler D887- e-con – Innovative and digitalized one or two needle flatbed sewing machines with wheel feed, needle feed and driven roller presser
-
Durkopp Adler 610-10 – Optimized work station for taping operations respective for pre-ruffeling of sleeves
-

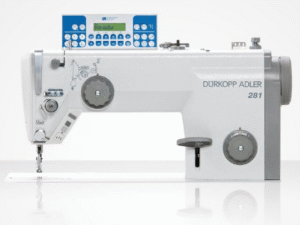

281 Dürkopp Adler Premium 1-Needle high speed lockstitch flatbed bottom feed sewing machine
