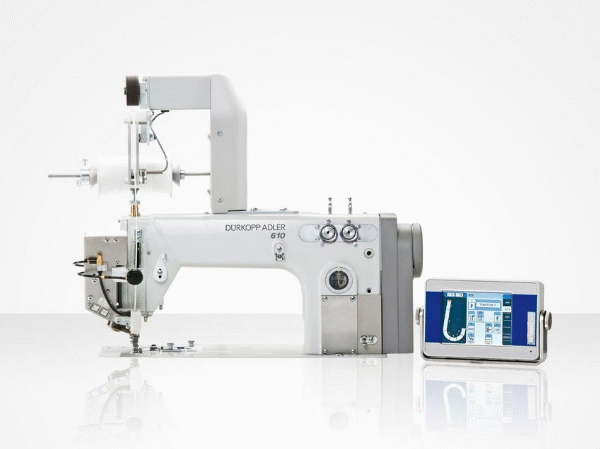

Durkopp Adler 610-10 – Optimized work station for taping operations respective for pre-ruffeling of sleeves

610-10 | Optimized work station for taping operations respective for pre-ruffeling of sleeves

Finest fullness nuances by means of differential top and bottom feed

Perfectly sized taped armholes and neck openings are guaranteed with this workstation. Due to the automatic tape unwinder, the the tape is fed free of tension. Furthermore, the tape feeder with the cutter allows automatic feeding of the tape within the seam and exact positioning and cutting. This method is cost-saving, as expensive tape is only used where it is desired and necessary.

Your benefits at a glance

Finest fullness nuances by means of differential top and bottom feed, individually selectable, stepper motor controlled, exact repetition even in difficult fabrics

Parameters like needle and bobbin thread tension, stitch length and speed can be programmed per step for a perfect stitch pattern

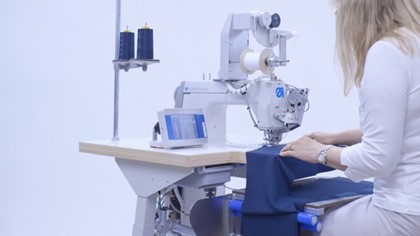

Ergonomically designed work station for fatigue-free working with integrated LED sewing light and optimal view to be processedShort training times due to easiest operation

Easiest programming possible by teach-in procedure and automatic mirroring for the second sleeve

Constant fullness with exact repetition due to patented light stroke syste

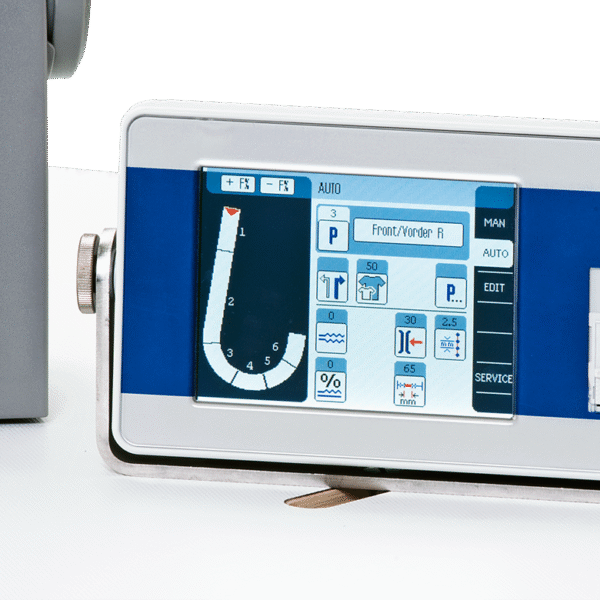

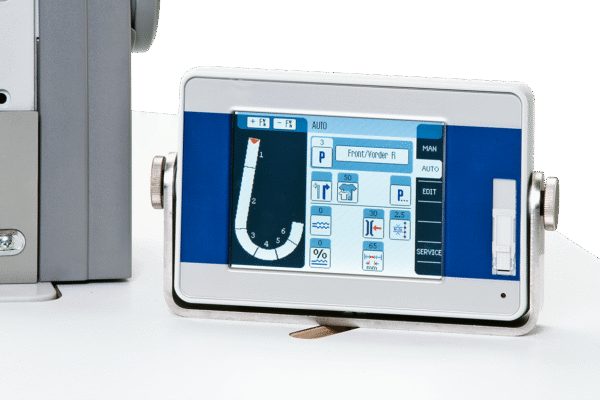

Modern, reliable and network-capable Dürkopp Adler control technology DAC comfort, with high-resolution touch panel OP7000 The touch screen with coloured graphic display of the seam course clearly shows the current program. All important parameters as e.g. fullness, thread tension, stitch length etc. are easily readable and programmable.



Service-friendly calibration instead of time-consuming mechanical adjustment

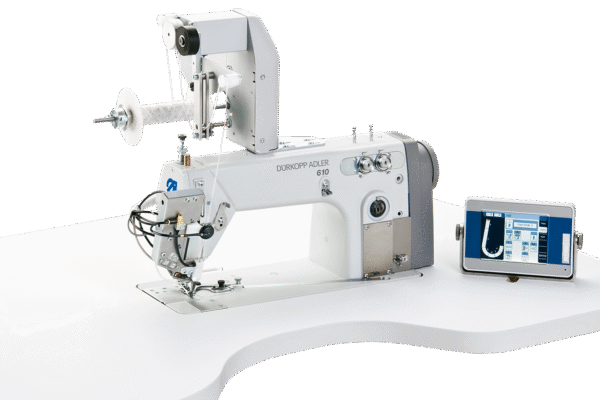

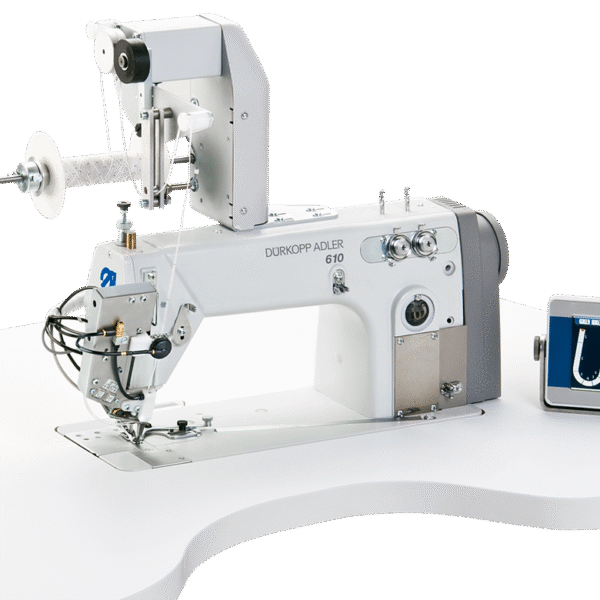

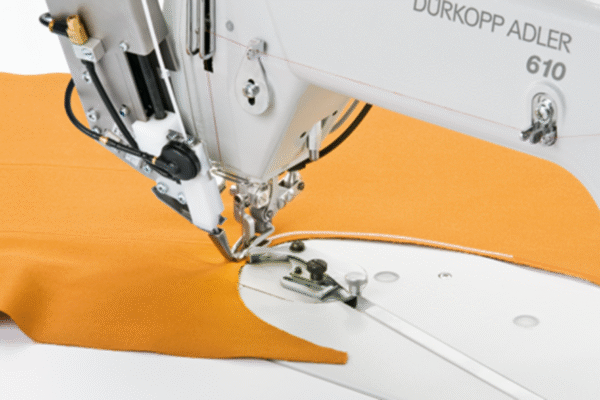

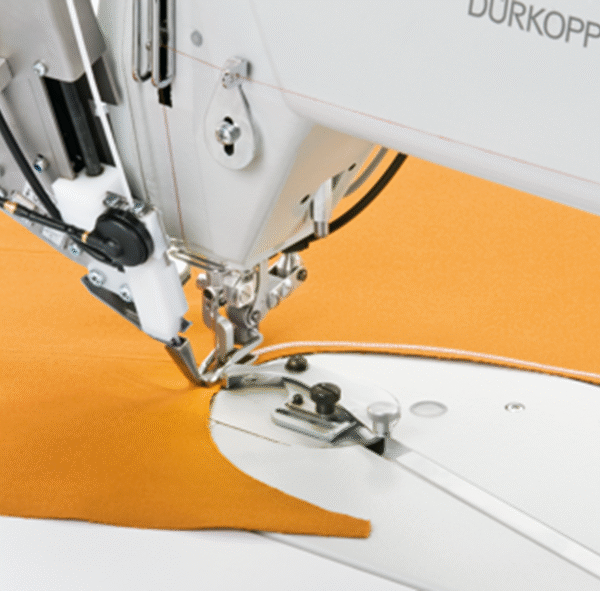

Tape unwinder and tape scissors. The 610 is equipped with a tape feeder with improved tape clamp for safe feeding of the tape. The tape feeder has been modified to allow a better view of the sewing area.The tape feed saves both time as well as material costs, subsequent cutting of the tape is not necessary.

Quick and easy software update and sewing program saving by USB flash drive

Up to 80% faster seam programming compared to the classical method

Examples of use

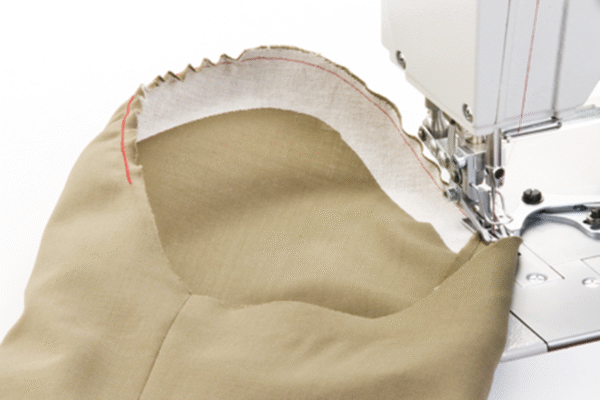

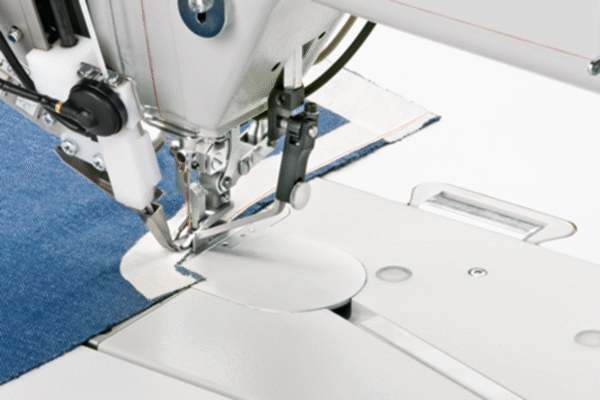

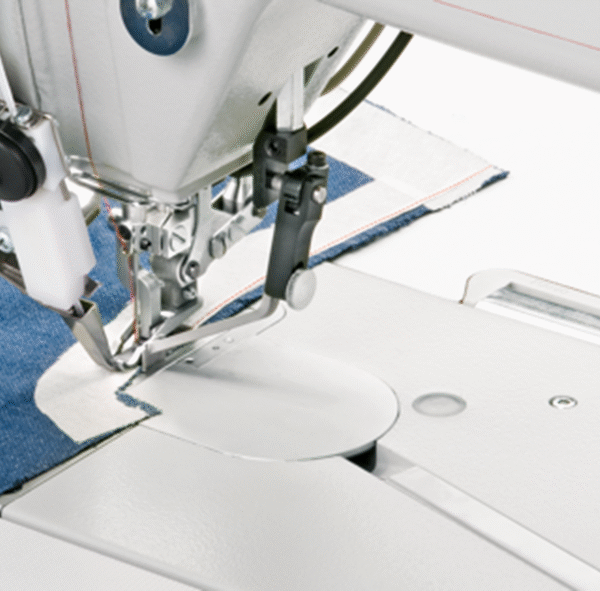

·         Taping of front armholes. The tape feeder with the cutter allows automatic feeding of the tape within the seam and exact positioning and cutting. This method is cost-saving, as expensive tape is only used where it is desired and necessary.

Performance examples in 480 min.:
Taping of approx. 500 pairs of armholes in men’s jacket front parts



·         Taping of back armholes. Perfectly sized taped armholes are guaranteed with this machine. The tape is fed free of tension by the automatic tape unwinder.

Performance examples in 480 min.:
Taping of approx. 500 pairs of armholes in men’s jacket back parts

Special Manufacturing (No. 22S0400) with specially designed workplace

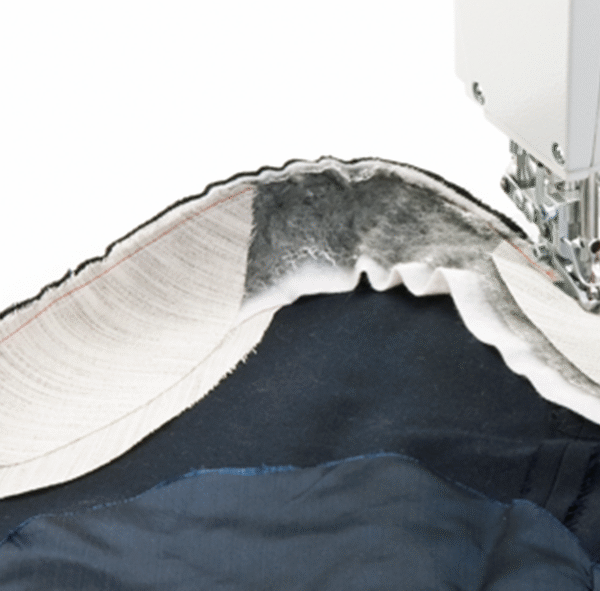

·         Pre-ruffling with sleeve head roll of the sleeve crown. Due to the differential top and bottom feed, the sleeves can also be pre-ruffled on the 610 (except for sewing feet for tape with a width of 5 mm).

Performance examples in 480 min.:
Pre-ruffling of approx. 450 – 500 pairs of closed sleeves
Pre-ruffling of approx. 550 pairs of open sleeves

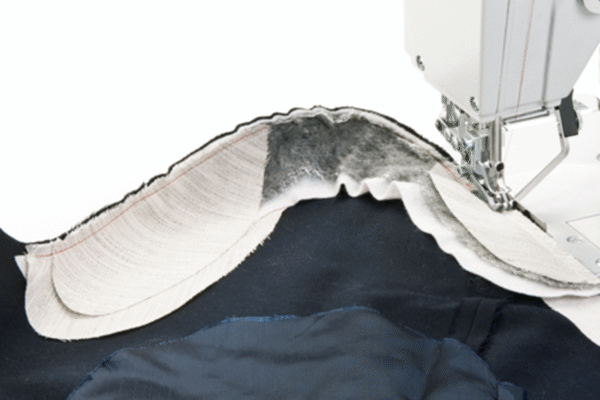

·         Pre-ruffling without sleeve head roll of the sleeve crown. Due to the differential top and bottom feed, the sleeves can also be pre-ruffled on the 610 (except for sewing feet for tape with a width of 5 mm).

Performance examples in 480 min.:
Pre-ruffling of approx. 450 – 500 pairs of closed sleeves
Pre-ruffling of approx. 550 pairs of open sleeves



·         Taping of jacket back parts (Special order). Special order SO 22S0400





Technical Specifications

Feature	Technical Details (610-10 Model)
Sewing Performance
Stitch Length	1.0 – 4.0 mm
Stitches Per Minute	5,000
Feeding Length	8/6 mm
Sewing Material	Light (L) / Medium (M)
Stitch Type	Double Chainstitch (401)
Looper	Crossline
Feed Mechanism	Differential Bottom & Variable Top
Sewing Capabilities	Fullness Above/Flat Sewing/Fullness Below
Thread Trimmer	Pedal Controlled
Functions	Stitch Condensing, Sewing Foot Lift,
Automatic Tape Unwinder	Yes
Tape Cutter	In front of Needle (from Top)
Program Control	OP7000 Panel w/ Graphic Touchscreen
Sewing Light	Integrated LED with Dimmer
Pneumatics
Air Requirement (per stroke)	0.1
Air Pressure	6 bar
Needle
Needle System	934 RG
Needle Size	70-130
Synthetic Thread	120/3 – 70/3
Dimensions
Dimensions (L x W x H)	1350 x 900 x 1250 mm
Flat Bed Clearance	C = 281 mm / D = 144 mm
Electrical
Nominal Voltage	1x230V, 50/60 Hz
Power Consumption	0.5
Weight
Sewing Head Weight	60 kg
Complete Machine Weight	114 kg
