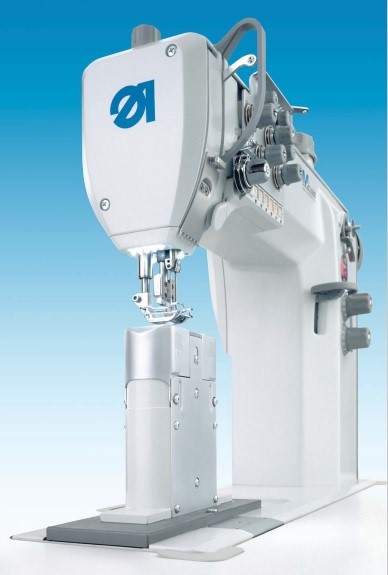

Durkopp Adler 868 M-Type single or double needle post-bed lockstitch sewing machine with bottom feed, needle feed and alternating top feed for medium-heavy duty materials.

Durkopp Adler 868 M-Type Single or double needle, post bed, lockstitch sewing machine with bottom feed and upper alternating feed for medium-heavy materials

The M-TYPE post bed machines with basic mechanical functions and triple feed

The basic model with convincing performance parameters

Due to outstanding performance parameters the subclasses of the machine series M-TYPE ECO postbed machines with triple feed offer high functionality and flexibility – at an attractive price.

The powerful and effective triple feed system guarantees a trouble-free and displacement-free material feed when processing most different fabric thicknesses and structures.

The DAC eco control is equipped with convenient basic functions such as needle positioning, soft start and realization of a pedal-operated single stitch.

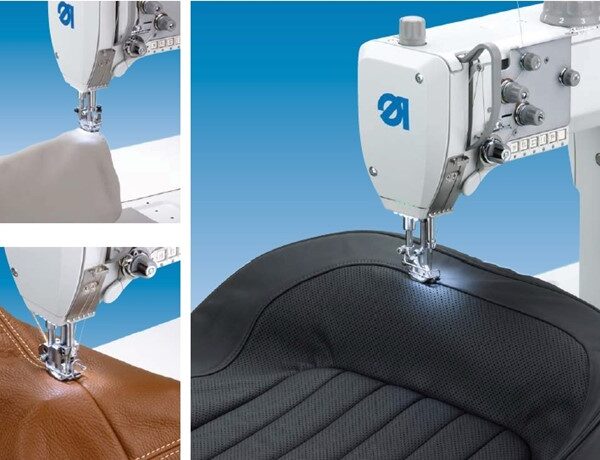

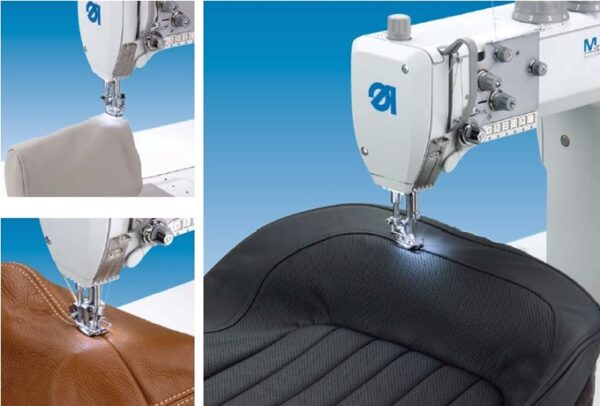

The subclasses of the M-TYPE ECO postbed machines are suitable as robust operating equipment for decorative stitching in the production of car seat covers, dashboard coverings and door panels as well as upholsterd furnitures.

·         Good seam quality and strong material feeding due to triple feed with alternating sewing feet

·         Good cost-performance-ratioPowerful direct drive integrated in the machine head guarantees low-noise and low-vibration running combined with outstanding performance parameters and high energy efficiency

·         Available as 1- and 2-needle version

·         New hook technology allows the processing of extreme sewing thread sizes up to Nm 8/3

·         Easy feeding and removing of bulky workpieces thanks to the extremely high sewing foot lift up to 20 mm

·         Safe climbing over differently high material plies by maximum sewing foot stroke up to 9 mm

·         Central oil wick lubrication (minimal lubricating system)

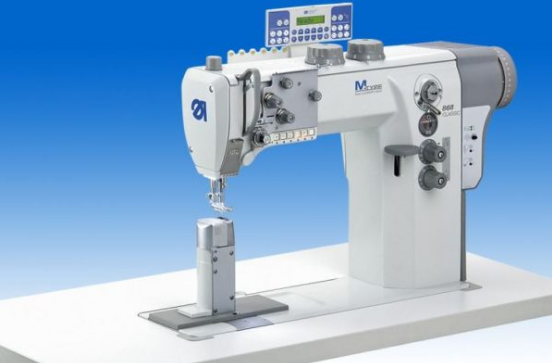

The M-TYPE post bed machines with Goldline equipment and triple feed

Maximum productivity and efficiency

The M-TYPE flatbed machines with electro-pneumatic full equipment and triple feed are equipped with all M-TYPE-typical performance features and advantages.

In addition to the automatic basic functions such as thread trimmer, automatic backtacking and automatic sewing foot lift, the subclasses of the 868-M CLASSIC Goldline convince with further additional functions for higher productivity and increased sewing comfort.

The additional integrated second thread tension, integrated second stitch length and quick stroke adjustment allow to produce with the highest quality in a particularly flexible and efficient way even for changing and difficult sewing applications. Furthermore, the full equipment of the M-TYPE is complemented by additional comfort functions: The optimum illumination of the sewing area and the maintenance indicator ensure the best possible design of the sewing workstation.

The powerful and effective feeding system with bottom feed, needle feed and alternating top feet guarantees a trouble-free and displacement-free material feed when processing most different fabric thicknesses and structures. The highly efficient sewing parameters combined with a great variety of equipment make the 868-M CLASSIC Goldline an ideal operating equipment for the universal use of decorative stitching operations in three-dimensional applications.

Your benefits at a glance

·         Powerful direct drive integrated in the machine head guarantees low-noise and low-vibration running combined with outstanding performance parameters and high energy efficiencyIntegrated second thread tension, integrated second stitch length and quick stroke adjustment for flexible and efficient sewing in changing sewing conditions

·         The OP1000 control panel enables a user-friendly operation of the automatic machine functionEasy feeding and removing of bulky workpieces thanks to the extremely high sewing foot lift up to 20 mm

·         For challenging corner stitches on the sector of decorative seams a machine with disconnectable needle bars is availableSafe climbing over differently high material plies by maximum sewing foot stroke up to 9 mm

·         New hook technology allows the processing of extreme sewing thread sizes up to Nm 8/3

·         Needle distances of the twin needle post bed machines up to 30 mm

·         For topstitching operations in narrow radii, a left-handed post bed machine is the perfect solution.

·         With this special machine subclass, it is possible to sew very close to the edge
