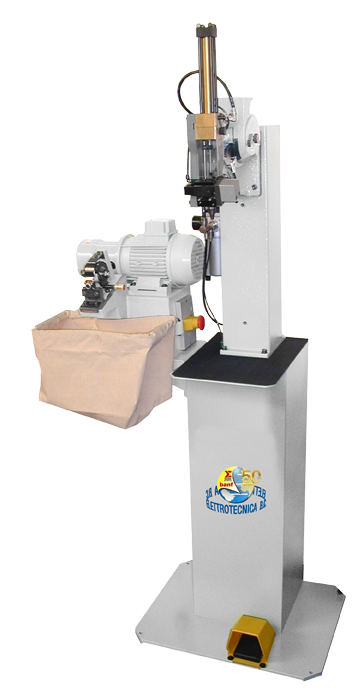

Elettrotecnica BC Mod 438/431 Pneumatic insole attaching machine with crop

Pneumatic insole attaching machine with crop

Macchine-fissa-sottopiedi-438431
Pneumatic machine to tack the insole to the last by nails, with single-shot mechanism, including insoles trimming device.
Nails used: round leg. 1.05 mm diameter, convex head, length from mm 12 to 16.
Optional head release instead of pedal

TECHNICAL DETAILS
Dimensions: cm 80 (31,5”) x 60 (24”) x 160 (63”)
Net weight: Kg 80 (176 LBS)
Air consumption: 0,2 lt/cycle
Electric power: 0,2 kW
