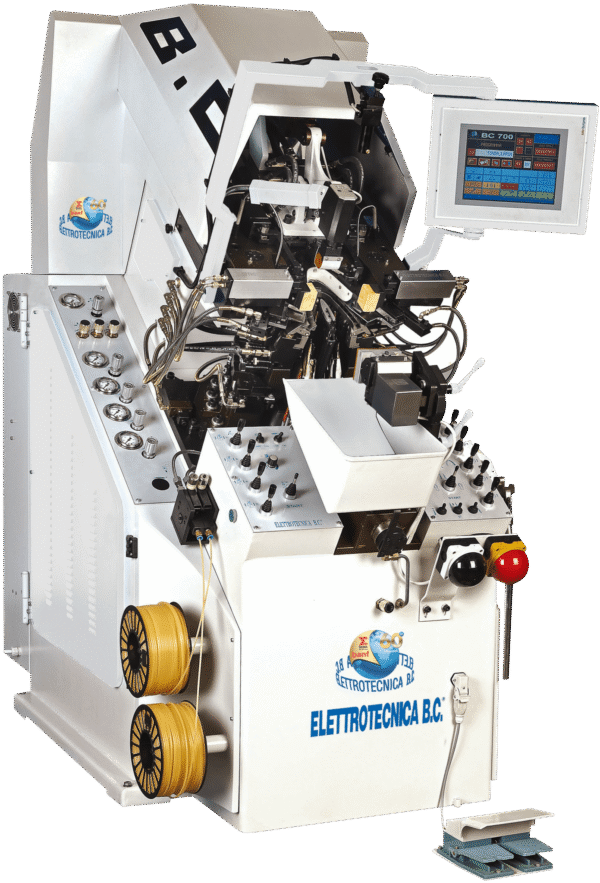

Elettrotecnica BC Mod 700RCP Pulling over and toe lasting machine full optional with ti, with tracers

Pulling over and toe lasting machine full optional with ti, with tracers

System LPD (Last Position Detect)
9 pincers with revolving pincer 5
Cementing system with programmed tracers
Tracer movement with brushless motors for have highest precision at high speed
Cement profile set is in scale 1:1 with digital display
Colour display with 100 expandables programs
Model codes personalized
Programmed head movement
Programmed wipers movement
Last support double release (with mechanical detention for stop precision)
Setting position of pincers with 5 axial system adjustable separately between the left and right pincers group
Setting position of pincers with horizontal opening for a quickly use of the different lasts models
Independent side bands and teflon band
Optical projector
Last support adjustment with external handles
Pressing pressure, teflon band, side bands, spoon wipers, climb applicator, low pressure pincers,
pincers closing, all external adjustable with reading manometer
Tool box included
Setting connection with mod. 140,241S, 182, 230, 241. The mod. 700 RCP as as more, the programmable back band and digital reading of last support quota.
TECHNICAL DETAILS
Daily Production: 250 pairs/hour
Electric Power: 3 Kw
Working pressure: 5 Mpa
Dimensions: Cm 114 X 183 X 210
