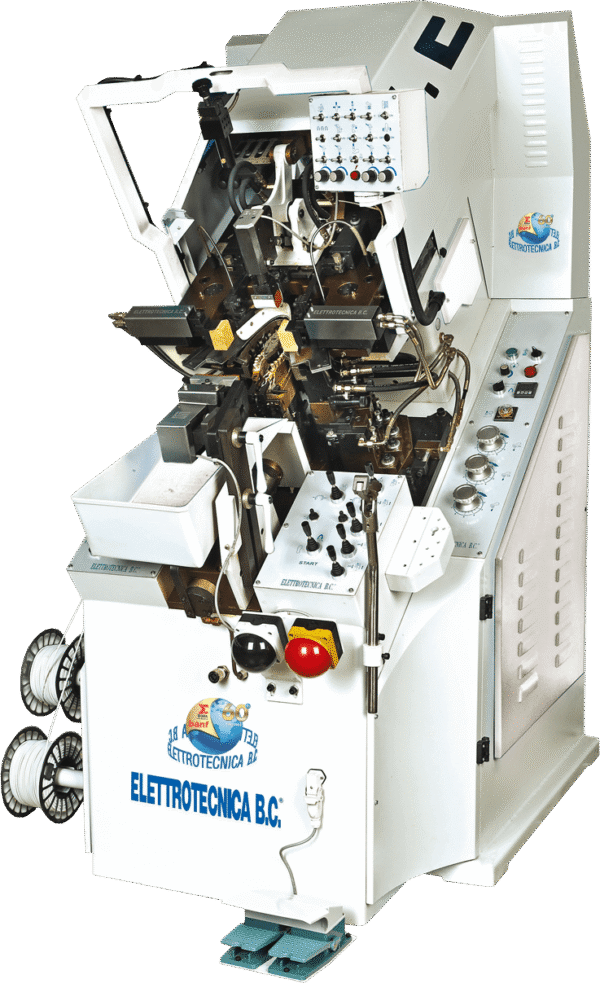

Elettrotecnica BC Mod 710 / SF Thermoplastic toe lasting machine

Thermoplastic toe lasting machine

– Adjustable in front and back part applicator – Applicator with interchanging head
– Applicator with automatic left and right
– Wipers system long lasting
– 9 pincers – revolving pincer 5
– Last support double release (with mechanical detention for stop precision
– Seting position of pincers adjustable separately between the left and the right pincers group
– Setting position of pincers with horizontal opening for a quickly use of the different last models
-Indipendent side bands and teflon band
– Optical projector
– Last support adjustment with external handles
– Pressing pressure, teflon band, side bands, spoon wipers, climb applicator. low pressure pincers, pincers closing, alla external adjustable with reading manometer
– Tool box included
– Single pincers opening
– Setting connection with mod. 001, 002, 140, 181, 182, 230.

TECHNICAL DETAILS
Net weight: Kg 1100
Dimensions: cm 107 (42”) x 187 (74”) x 210 (83”)
Absorbed power: Kw 3
Working pressure: 5 MPA
Maximum production: 250 pairs/hour
