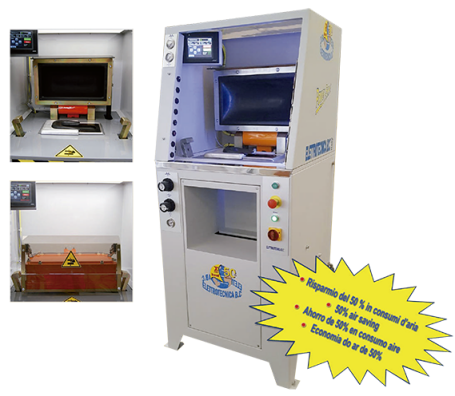

Elettrotecnica BC Mod 755 PS Pneumatic assembling for soles complete at 1 station

Pneumatic assembling for soles complete at 1 station

Macchine-assemblatrici-di-suole-Mod-755-PS
Pneumatic assembling machine programmed for soles with blowing up bell

Double inner chamber, one first pressure, one second pressure
Adapted to whichever type shoe and boot
Equipped of photoelectric cells for starting the automatic cycle and, for the emergency of the operator
The shoe support is adjustable in vertical and horizontal
New cycle of release that allows to speed the cycles and to diminish the air consumption and the usury of rubbers
It has a air storage cell and a pneumatic system with double capacity of vacuum.Adjustable times of first and second press individually until 30″
Adjustable pressures first and second press individually
TECHNICAL DETAILS
Dimensions: Cm 90 (35,4”) x 65 (25,6”) x 170 (67”)
Net weight: Kg 250 (551LBS)
