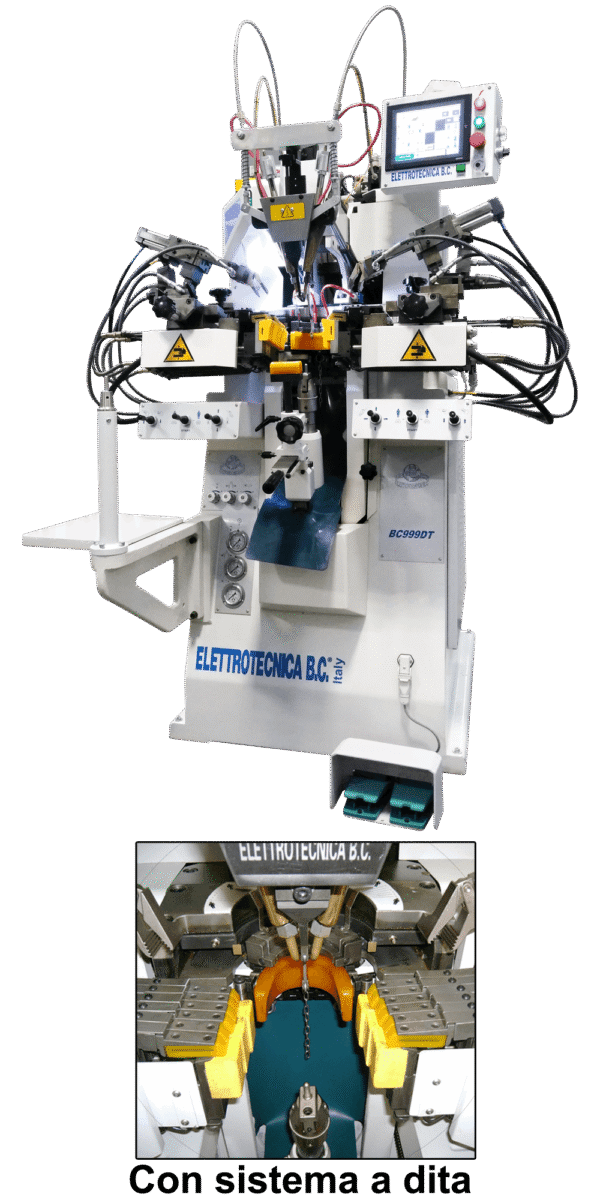

Elettrotecnica BC Mod 999 DT Heel and side lasting machine with fingers groups, programmed with thermoplastic

Heel and side lasting machine with fingers groups, programmed with thermoplastic

Machine for the lasting of heel seat and waist in one operation only, adaptable to any traditional pulling-over and lasting machine.
Touch screen program system .
Video diagnostic program of all working data.
The lasting of the heel-seat and the side can be realized with thermoplastic or neoprene.
The machine have been studied so that it is possible to change working from low to high heel quickly and with minimal adjustments.
Two adjustable pincers, delivered as optional, allow the automatic upper pulling in order to obtain the maximal adherence.
Acording to the the kind of working the machine has 3 diferent possibilities of the waist lasting. Tool box included.
Setting connection with mod. 231, 284
TECHNICAL DETAILS
Dimensions: cm 130 (52″) x 135 (54″) x 138 (55″)
Net weight: Kg 800 (1764 LBS)
Gross weight with crate: Kg 1000 (2205 Lbs)
Electric power: 5 Kw
Air consumption 4 Bar: 5 Lt/Min.
Daily production: 180 Pairs/hour
