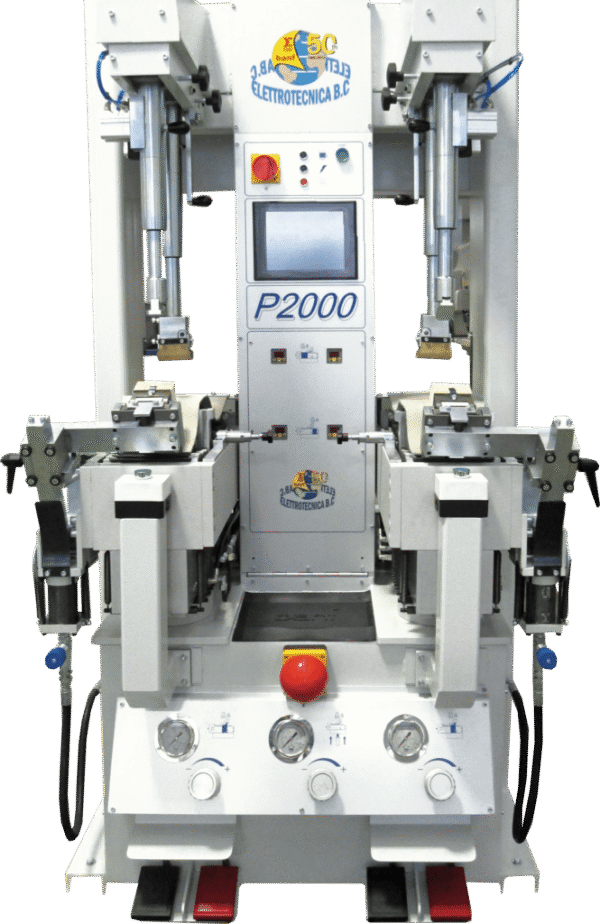

Elettrotecnica BC Mod P2000TS hydraulic press

Programmed hydraulic press for attaching soles with 3 independent pressure and touchscreen panel

The hydraulic sole-applying press model P2000 is greatly appreciated by customers both for its operational reliability and for the
technical accuracy of all its parts.
Thanks to its lamellar sector pads with differentiated air-shape (3 independent pressure), the hydraulic press model P2000 allows to press soles on any type of footwear.
Its self-levelling system for fixing the tips on the last, ensures a perfect and stable adhesion before the pressing cycle.
This sole-pressing machine has been designed to allow any type of working to be carried out either on standard shoes or on boots, thanks to control the upstroke of the pad which ensures the possibility to choose a greater or smaller distance between the work-table and the last-fixing tips.
TECHNICAL DETAILS
Electric power: Kw 1,5
Hydraulic pump: Kg/Cm 100
Dimensions: cm 101 (40”) x 105 (41”) x 190 (75”)
Net weight: Kg 1010 (2226 LBS)
Gross weight with crate: Kg. 1250 (2756 LBS)
