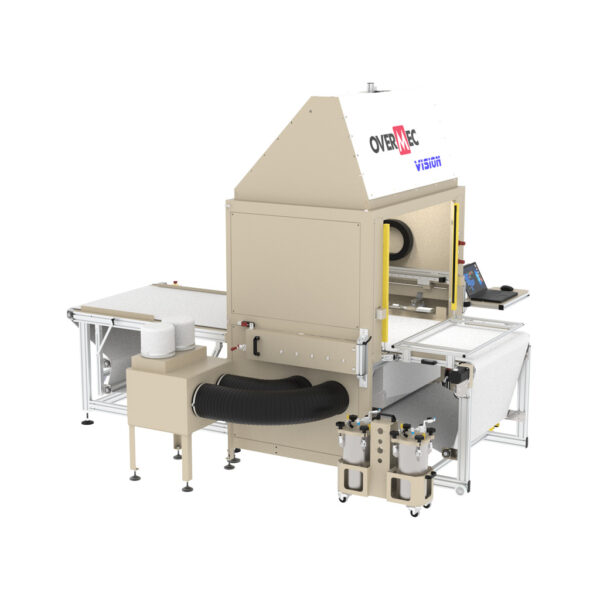

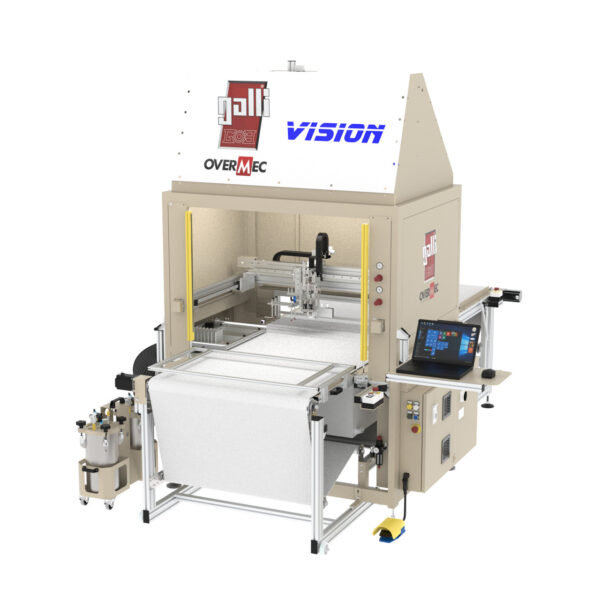

Galli CCN3 – 3TE VISION three axis gluing robot with machine vision system with conveyor belt

3TE VISION CNC three axis gluing robot with machine vision system with conveyor belt
This machine uses water-based adhesives.

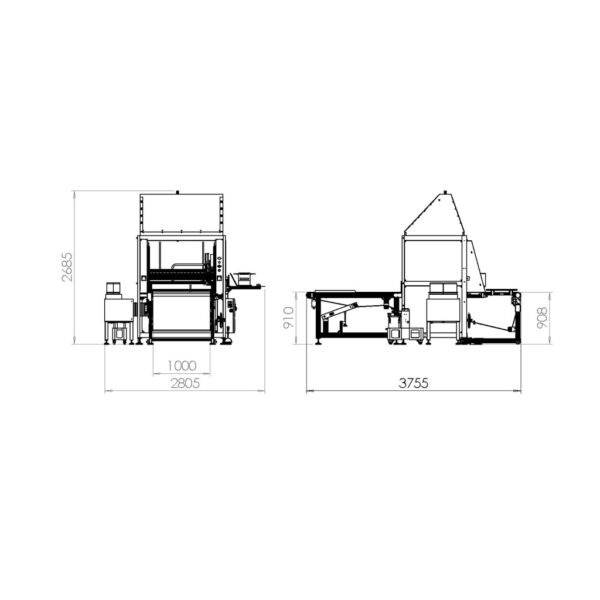

Working area X mm 840, Y mm 540, Z mm 130
The material to be glued is positioned on the table with a vacuum system

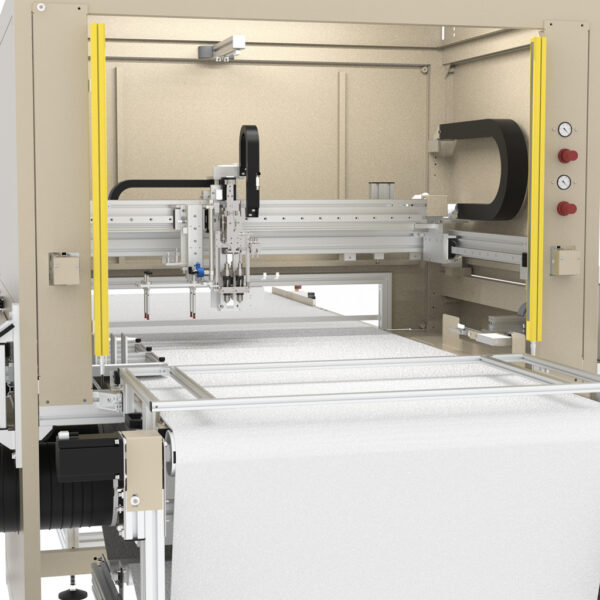

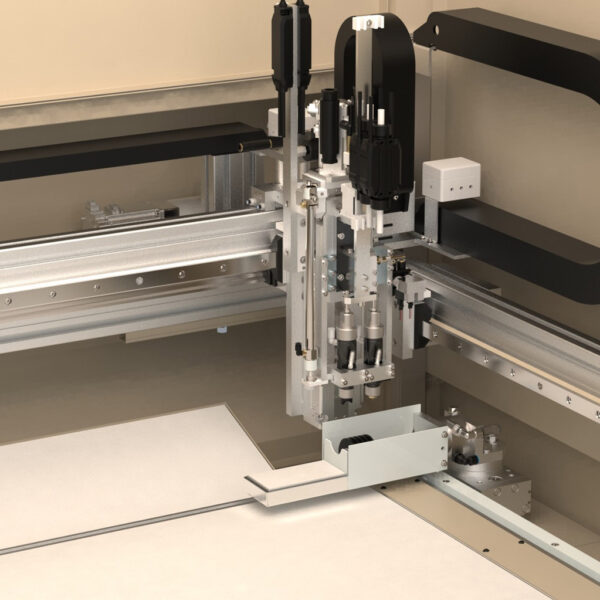

Spray gun with quick connection
The machine is connected to a Personal Computer on whic is installed Overmec HMI software to control the working cycle
High resolution camera with CMOS sensor
This machine, using optical machine vision system, is able to automatically detect the pieces positioned on the working table and can glue them in a precise and rapid way. The number of pieces that the machine can recognize is unlimited
If the machine is connected to Internet Overmec can do diagnostics and on-line technical assitance
Safety photocells
