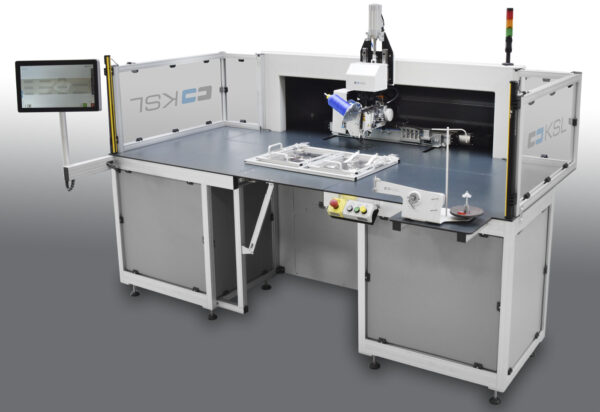

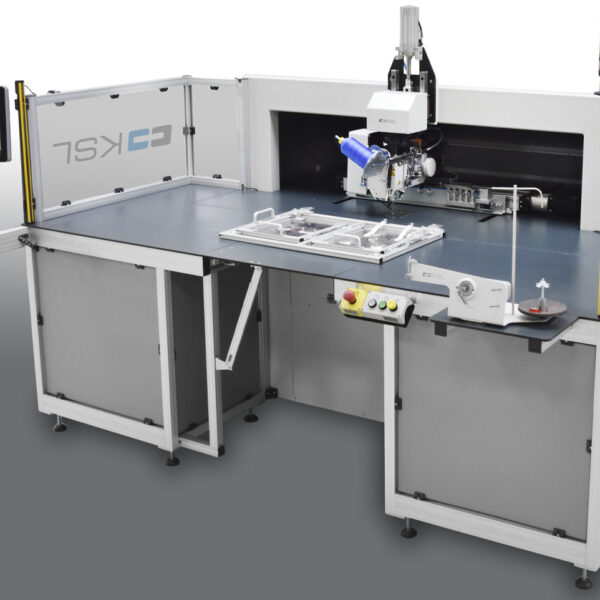

KL 352

CNC sewing unit with stationary sewing head, equipped with horizontal hook

The new KSL 352 is a solution for sophisticated safety, functional and decorative seams. The sewing head with horizontal hook, which is tailored to the machine, enables the option of a bobbin changing system. Many new technical refinements have been implemented in the KL 352, such as: Thread tension and foot height can be individually set for each seam section. These technical innovations increase process reliability and ensure a high-performance in the MULTIDIRECTONAL sewing process.

Features

New features of the KL 352:

• Residual thread monitoring on the bobbin thread
• Thread tension and thread breakage monitoring
• Thread tension and foot height can be individually set for each seam section
• Short thread trimmer at seam beginning (can be switched on/off)
• Electronic oil level monitoring, separately for lower and upper part
• Thread cone monitoring
• Thread wiper
• Vibration sensor (individually adjustable) for checking bearing damage
• Drives with EtherCAT communication instead of analog

Further features:

• Continuous material transport
• Sewing head, pneumatically liftable (75 mm) for direct access to any seam position
• XL hook (32 mm) with large bobbin thread capacity
• The touch screen operator panel ensures intuitive operation and features a modern and clear layout.
• The seam may be monitored in real time on the screen
• The automatic detection of the material clamp for added process reliability
• The sewing area is protected by a light-barrier (CE compliant)
• Template changer system for overlapping workflow

Specifications

Max. sewing speed : 2.800 s.p.m.
Stitch length: max. 8 mm
