KL 421

CNC-controlled laying unit (taping) for attaching heating conductors (tubes or cables) on mesh fabrics

Features

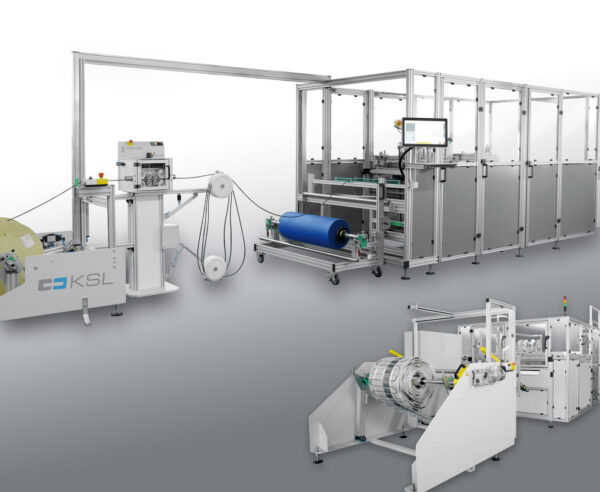

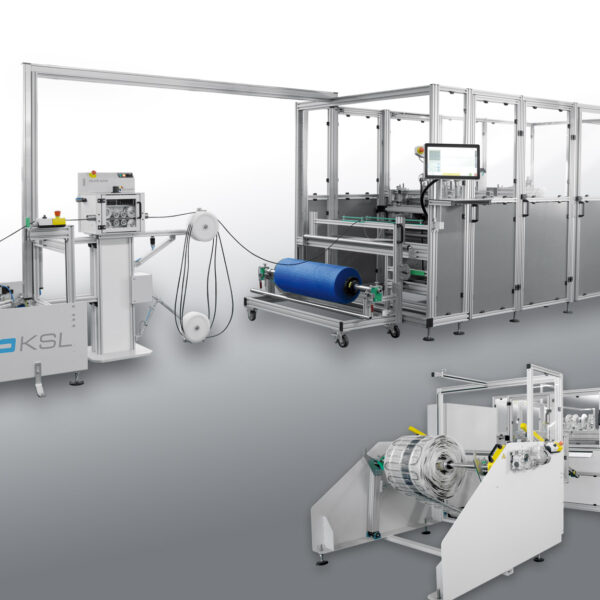

• Components:
  – Unwinding station for cable/tube
  – Cable/tube dispenser
  – Unwinding station for fabric
  – Sewing unit
  – Winding station for the finished product
• Sophisticated and highly efficient system for this complex operation process
• Fully automatic, autonomous cable/tube laying and taping (also two-sided). Only the change at the unwinding and winding station is done manually.

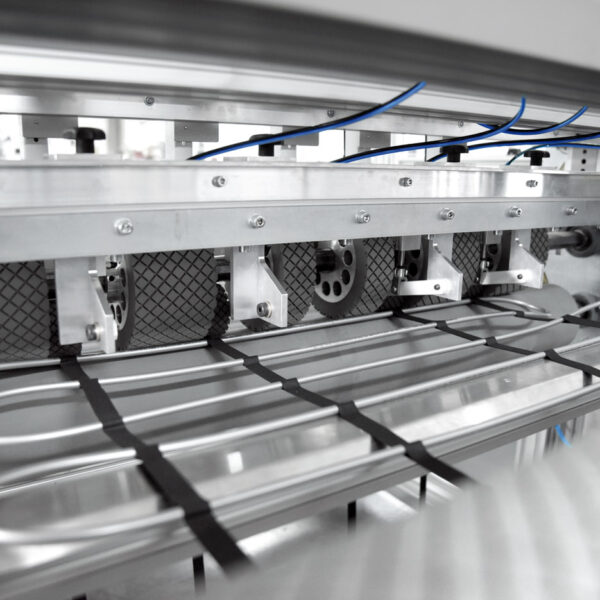

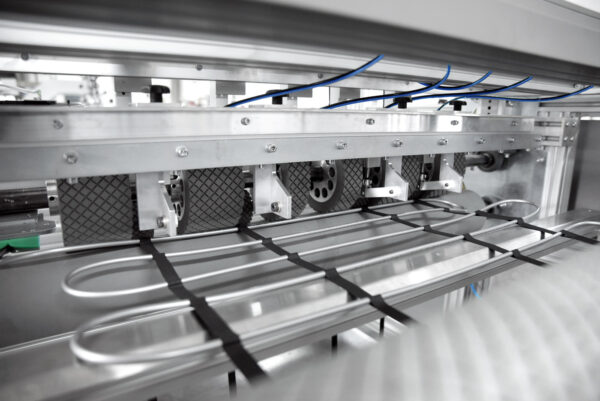

• Cables/tubes are fixed with a tape. Max. 5 tape feeds from above and below (distances are freely selectable)
• The unit ensures a laying on mesh fabric with max. 1.000 mm width
• High-performance PC HMI with large number of service functions and freely definable user level
• For maintenance and error analysis, the HMI can be controlled remotely from a PC, laptop or smart device (using TeamViewer® as standard)
• Planning and implementation of the machine „ready to production“ based on customer requirements.

Specifications

Laying speed: approx. 20 m/min. (Amplitude: 960 mm)
Distance between the cables/tubes: from 60 mm free selectable
Max. cable/tube diameter: 8 mm
