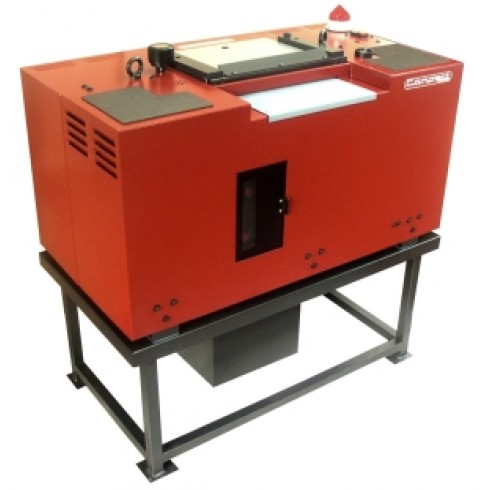

Model Camoga COMPACT Band Knife Splitting Machine (300mm)

Model Camoga COMPACT Band Knife Splitting Machine (300mm)

Features
– No knife trend setting • •
– Grinding unit suitabe for corundum or diamond wheels • •
– Guide gibs group with automatic adjustment
– Independent exhaustors for emery dust and working scraps
– Wheel moving on precision roller guides • •
– Optical viewer to check bevel
– Analog thickness readout
– Handbook and service wrenches
– Ergonomic work position to reduce tiredness • •
– Safety device in compliance with CE standards
– Low noise level
– Life lubricated mechanical components
– Access to all components for an easy and rapid servicing
• • Features introduced for the first time by Camoga

Model Compact for Belts
Feed Table Height 0.95 m
Installed Power 1.0 kW
Net Weight 173 kg
Gross Weight 219 kg
Machine Dimensions (m) 0.98×0.62×1.05
Case Dimensions (m) 1.15×0.84×1.28

Technical Data:
Working Width: 300 mm
Max Thickness: 5 mm
Min Thickness: 0.2/0.8 mm
Knife Dimension: 0.5*40*2065 mm
Accessories:
Belts skiving device
Upper Roll
Rubber Coated Lower Feed Roll
Alternative grinding unit: Diam/Corum
