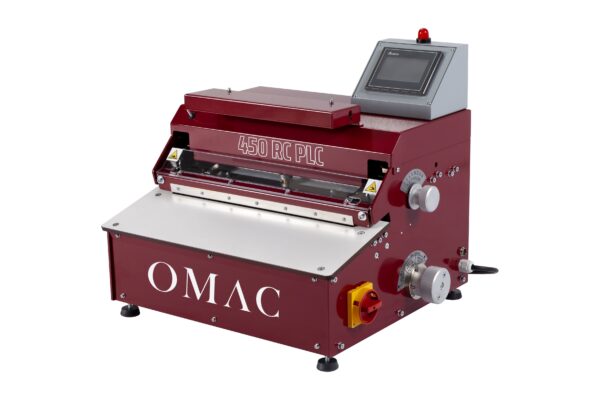

OMAC 450 Linear Electro pneumatic Folding Machine

The OMAC® Linear Electro pneumatic Folding Machine 450 are used in leather industry to make folds with hot or cold systems on wallets, wallets for checks, handbags and other leather or imitation leather items.
The OMAC® 450 are linear electro pneumatic folding machines able to make folds with hot or cold systems on various leather goods, in leather or similar materials: wallets, wallets for checks, key rings, handbags, etc. They are characterized by a folding width ranging from 0.3 to 10 mm.

Technical features:

• Material thickness varies from 0.2 to 2 mm;
• Programmable temperature from 0 to 100 °C;
• Pressure time from 0.3 to 10 seconds;
• Keypad with LCD with microprocessor for programming and check control function;
• Pedal electrically connected for foldings;
• Quill beads with dent.

The following models are available:

• 450R: Linear Electro pneumatic Folding Machine with cold system (R).
• 450RC: Linear Electro pneumatic Folding Machine with cold and hot systems (RC).

Optional:

• Lighting system;
• Support.

Material thickness0,1÷2 mm
Padded material thickness up to 8 mm
Folding capacity 3÷10 mm
Execution time 2 sec
Pressure time 0,3÷10
Temperature 0÷100 C°
Useful folding space 45 cm
Weight 75 Kg
Dimensions 60x52x52 cm
Pneumatic supply 6 bar
