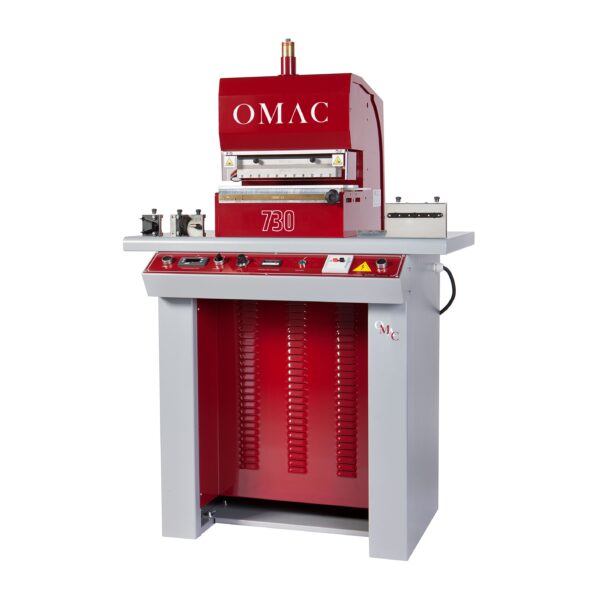

OMAC 730 and 731 Hydraulic Punching Machine

The  OMAC® Hydraulic Punching machine 730 and 731 are used in different sectors, including the leather and watch sectors, to cut and puncture belts, shoulder straps, wrist watches and other leather or Eco leather strips.
The OMAC® Hydraulic Punching Machine 730 and 731 are suitable for punching the tip and the belt end, watch straps and leather shoulder straps. They feature a self-centering guide plate, mechanical lock and 6-hole lock.

By replacing the die, it is possible to obtain various forms of cut of the tip and belt end, shoulder straps, backpack straps, leashes and collars for animals, holsters for guns or other leather strips.

The 730 model has an adjustable working table from 1, 5 cm to 8 cm, while 731 model has a working space of 34×31 cm and an opening guide from 0, 5 cm to 6, 5 cm.

The machines can be supplied with various types of voltage, to be specified when ordering.

Technical features:

• Hydraulic unit;
• Electronically controlled via microprocessor;
• Counters;
• Power 2000 Kg.

Dimensions 90x60x135 cm
Weight 200 kg
Maximum absorption 1,1 KW
Supply 220/380/440 three phases
