Pegasus Knit shirts short sleeves A

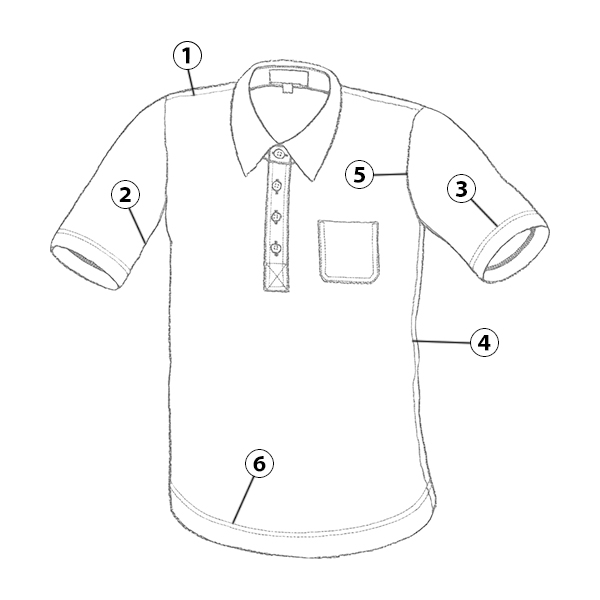

Following numbers of the table correspond to the circled numbers in images.

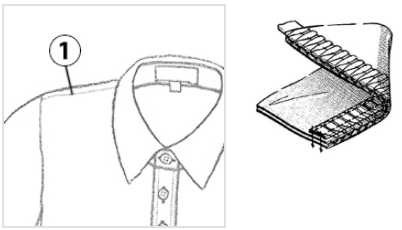

• 1 Joining shoulders

  Machine model：EX5214-M53/333-2×4/TK

  2-needle overlock for attaching tape, with tape cutter

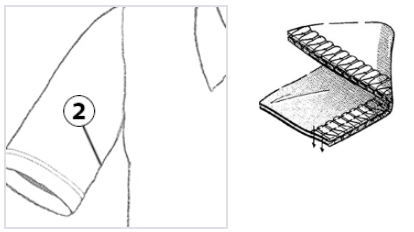

• 2 Closing sleeves

  Machine model：EX5214-M03/333-2×4/KS/PL

  2-needle overlock for plain seaming, with thread chain cutter, presser foot lift

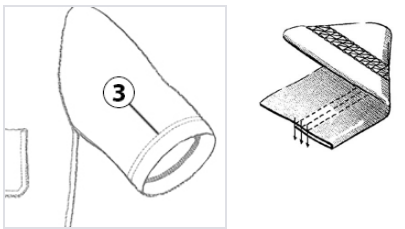

• 3 Hemming sleeve openings

  Machine model：WT264P-08ACx248/UT/PL

  2-needle, variable top feed, small cylinder bed, interlock stitch machine with top cover thread (used as “without top cover thread ” on this operation) for hemming, with thread trimmer, presser foot lift

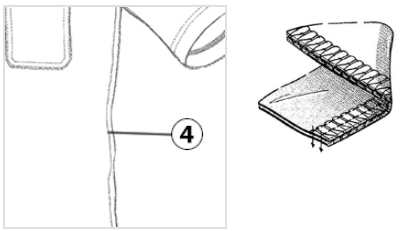

• 4 Closing sides

  Machine model：EX5214-M03/333-2×4/KS/PL

  2-needle overlock for plain seaming, with thread chain cutter, presser foot lift

• 5 Setting sleeves

  Machine model：EX5214-M03/333-2×4/KS/PL

  2-needle overlock for plain seaming, with thread chain cutter, presser foot lift

• 6 Hemming bottom

  Machine model：MHG-140

  Hemming unit (equipped with 3-needle, cylinder bed, interlock stitch machine)
