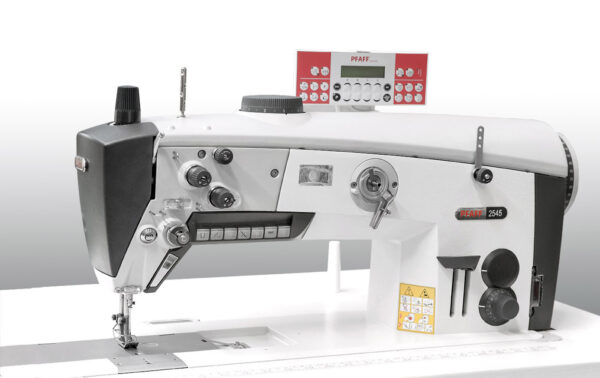

PFAFF 2545 Eco Unison special high-speed sewing machines with vertical hook

PFAFF 2545 Eco
Unison special high-speed sewing machines with vertical hook

Reduced electronics where they are needed and easily accessible functional parts make the POWERLINE ECO an uncomplicated, robust and service-friendly machine. It produces consistently high stitch quality and top sewing results both for top-stitching work in the visible area and for assembly and securing seams in the invisible area.

Features

• The machine achieves a very high stitch quality both for top-stitching work in the visible areas and for securing and assembly seams
• The ergonomically designed dials guarantee quick and accurate adjustments of the first and second top feed stroke (with automatic speed adaption)
• Quick button for reverse sewing or backtacking
• Large clearance under machine arm (345.0 x 120.0 mm)
• Bobbin winder for a secure and fast start of the winding process („winding assistant“)
• Increased performance due to additional functions like integrated second stitch length, additional thread tension and quick stroke adjustment
• Direct drive
• BDF-S4 Control panel

Specifications

Needle system: 134-35
Thread size: up to 15/3 Nm
Max. sewing speed: 3.000/min
Max. stitch length: 9 mm
Stitch type: 301 (lockstitch)
Clearance under the sewing foot: max. 9 mm
