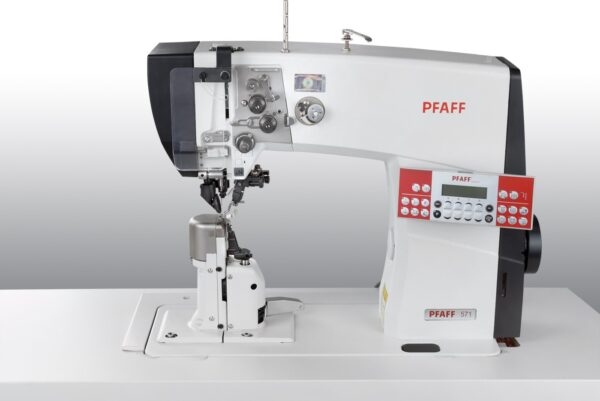

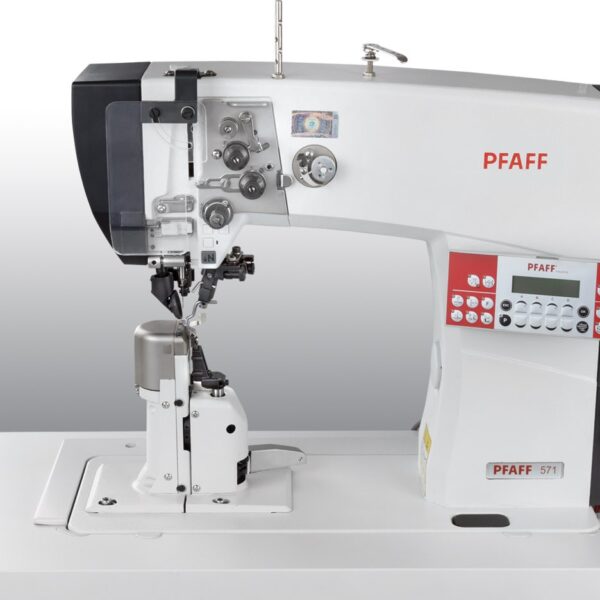

PFAFF 571 Post bed special sewing machine with wheel feed, roller presser and needle feed (left post)

PFAFF 571 Post bed special sewing machine with wheel feed, roller presser and needle feed (left post)

Modern post-bed high-speed machine series – mechanical design
Single and double-needle post bed machines with the PFAFF INDUSTRIAL brand are the most-used equipment in the shoe industry. PFAFF has succeeded in achieving a true upgrade of this legendary machine generation with the new series 571 / 574 / 591. The modern and new designed case in the new PFAFF product lead design, the sturdy thread trimmer as well as the automatic hook lubrication are the distinguishing features of this new product range. The machines are equipped with integrated, energysaving drives.

This range is mostly used for nearly all top-stitching work with single or two needles in the shoe production. Ornamental and assembly seams on classic and sport shoes can be sewn easily and in a top seam quality. The whole range of light to medium-heavy materials is covered here. The machines guarantee maximum performance and quality at an extremely attractive price – reason enough for many well-known manufacturers to use PFAFF post bed machines for their production.

Features
New high-class design of this classic PFAFF machine for the shoe industry

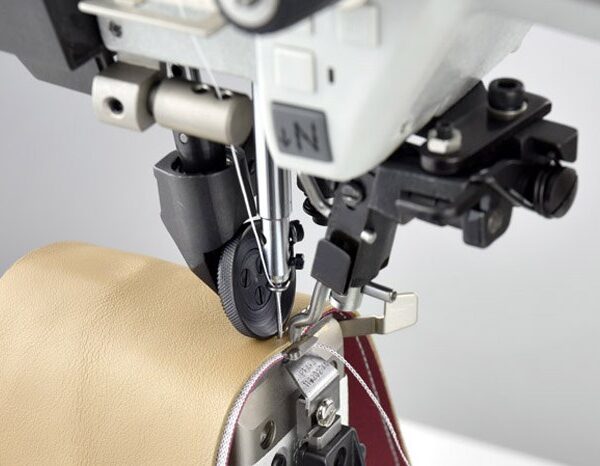

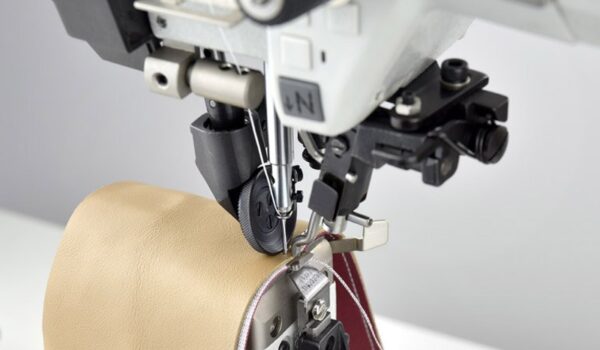

Three roller presser versions available: cross toothed, rubber coated, straight toothed
Top-quality for all assembly and decorative seams
Seam length programming by control panel
„Stitch in stitch“ backtacking – no “perforation” of material
Easily adjustable thread trimmer for short thread ends (up to 15/3 syn.)
Electromagnetic controlled functions for thread trimming and presser foot lifting
Simple adjustment to number of backstack stitches via control panel
Overload clutch for hook protection
A multi-function switch with pre-programmed functions is integrated in the sewing head – Reverse sewing / intermediate tacking, Backtack inversion, Needle up, without trimming
-725/04: Edge trimming mechanism, bottom driven (option)
Edge guide for an accurate and consistent seam distance to the edge
The LED light, which is built into the sewing head, creates optimum illumination of the sewing area
No compressed air required

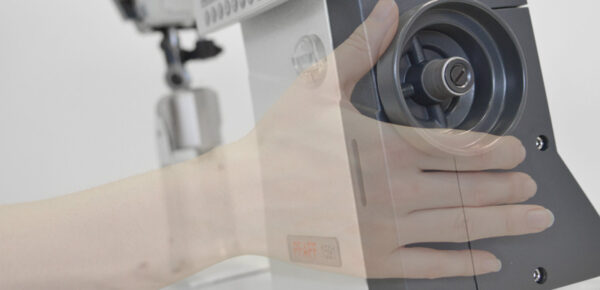

Hand wheel within easy reach of the operator
Options
Backtacking system
Thread trimmer
Automatic presser foot lift
Applications
Inserting and undertrimming of lining on shoe uppers
Specifications
Needle system: 134 LLCR
Needle size: Version B 90 Nm, Version C 130 Nm
Max. sewing speeds: 3.000 s.p.m
Max. stitch length: 5,0 mm
Stitch type: 301 (Lockstitch)
Cutting distance: B 1,2 mm / C 1,5 mm
Clearance under roller presser: max. 10,0 mm
Diameter of roller presser: Standard: 30 mm, Optional: 25 mm (only on 570/590 machines)
Clear workspace: 245 x 275 mm
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
