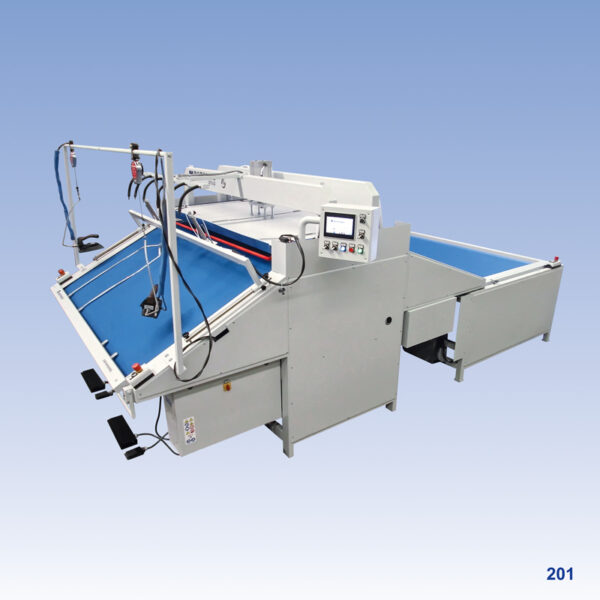

Rotondi SERIES 201 Four sections automatic conveyor pressing machine, one T-shirt in 15 seconds

Rotondi SERIES 201 Four sections automatic conveyor pressing machine, one T-shirt in 15 seconds

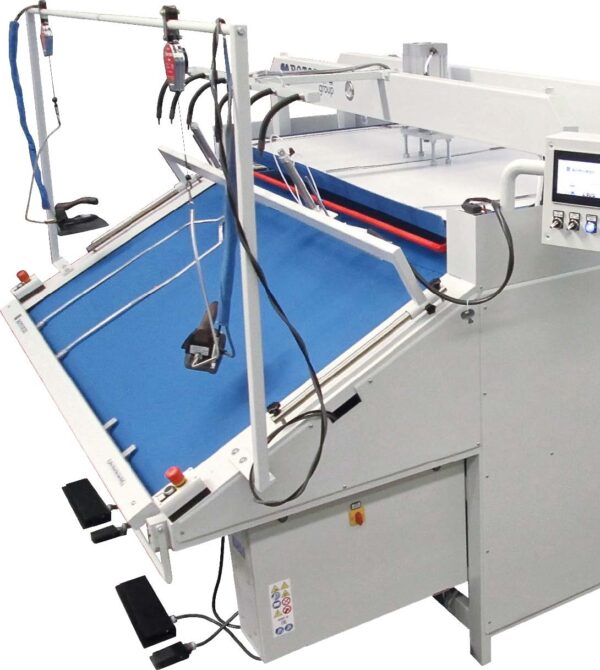

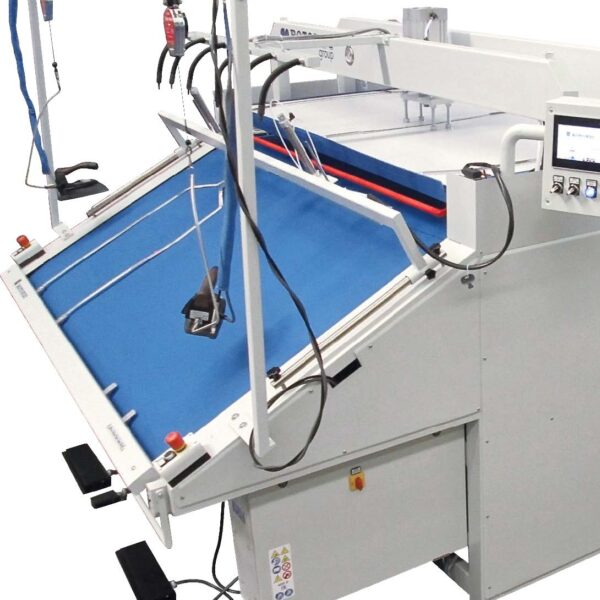

Section 1: LOADING
• Buck size 180×90 cms with steaming and vacuum.
• Powerful double steaming.
• Ergonomic 30 degrees buck inclination.
• Two vacuum motors at 0.5 HP – 0.37 KW each.
• Two Pneumatic hem holding bars with automatic opening. (Optional)
• Double pedals for vacuum, two pedals for bar closing.
• Knee bar for buck steaming.
• 3+3 Spot lights
• 2 x EC-420/3 lifted irons.
• Prepared for pneumatic stainless steel jigs application.

Section 2: PRESSING STATION
• Steam chamber buck with steaming and vacuum.
• Steam chamber head with steam heating.
• Electronically adjustable pressing pressure.
• Electronically adjustable head gap distance.
• Vacuum motor at 0.5 HP – 0.37 kW.

Section 3: DRYING STATION
• Buck with vacuum motor at 0.5 HP – 0.37 kW.

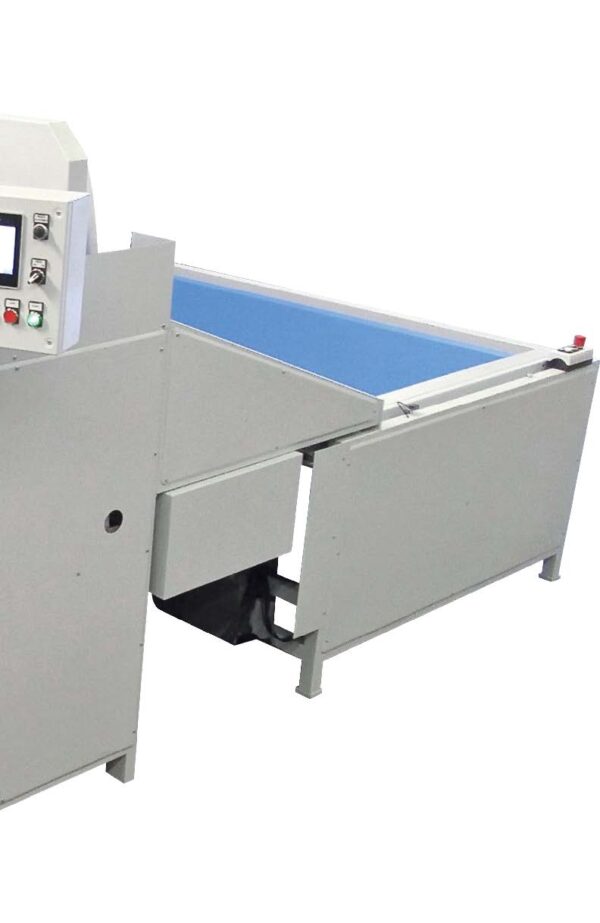

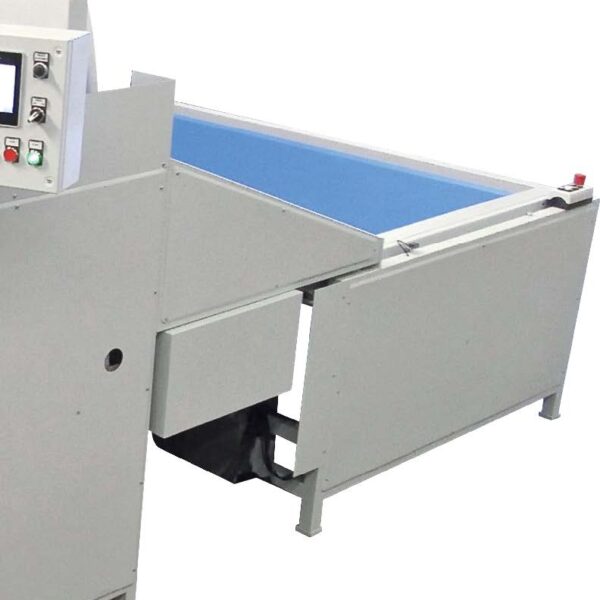

Section 4: STACKER
• Programmable automatic stacker.

TECHNICAL DATA:

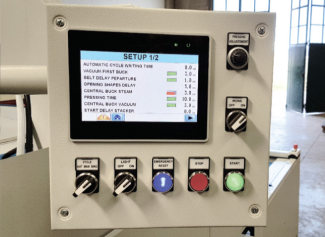

• All sections pressing times, movements controlled by GALILEO COLOR TOUCH SCREEN computer – 60 programs.
• Steam consumption: 60 kgs/h – 5 BAR – 1/2″.
• Electrical consumption: 2,5 kW – 400/3/50.
• Air consumption: 200 Nl/min – 7 BAR – 3/8″.
• Machine size: 270 x 423 x 210 cms – 900 KGS.

OPTIONAL:
Stainless steel pneumatic jigs.
