Stema ER29TR Dryer and glue re-activator

Stema   ER29TR Dryer and glue re-activator

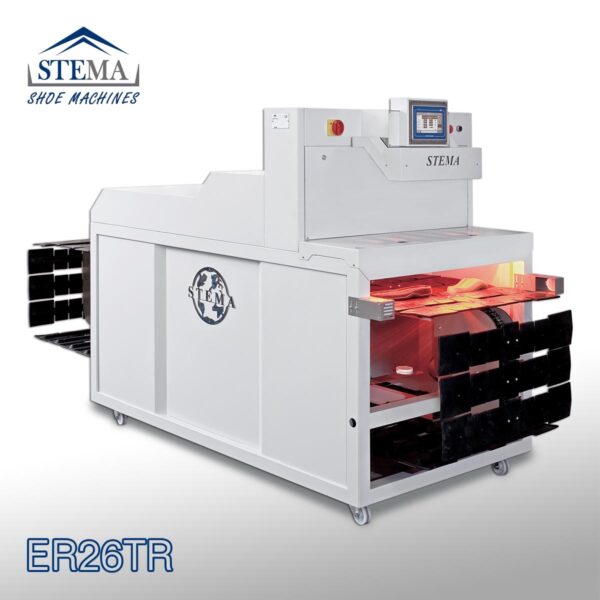

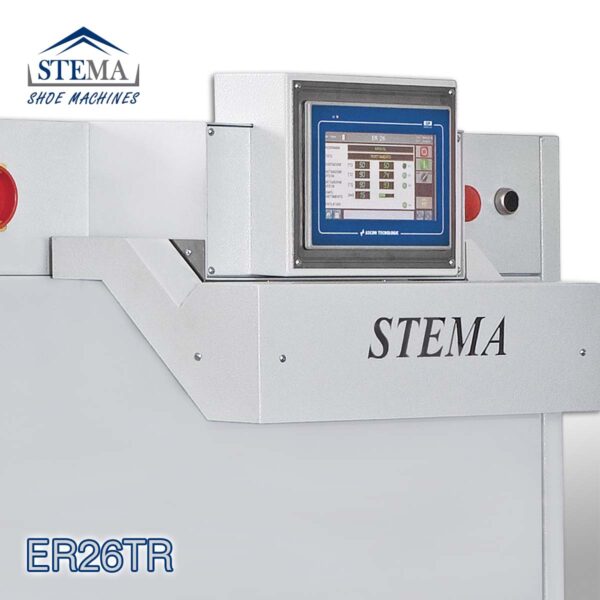

Stema ER26TR – ER26/1TR – ER29TR
DRYER AND GLUE RE-ACTIVATOR
The ER26TR – ER26/1TR machine is a linear shoe and sole transporter which reduces solvent evaporation times.
– (CHARGING) The operator o operators gluing by hand or by machine place the sole and shoe on the conveyor belt.
– (EVAPORATION) Inside the tunnel the solvent contained in the glue is forced to evaporate.
– (REACTIVATION) The press operator takes shoe and sole at the end of the cycle perfectly reactivated and ready for assembly.
The reactivation temperature is guaranteed by two optical sensor. You can be included, for the form, the OPANKA reactivation.

TECHNICAL FEATURES
 POWER:
ER26TR 10 kw
ER26/1TR 12 kw
 SIZE:
ER26TR  110x310x165 cm
ER26/1TR 110x400x165
 WEIGHT:
ER26TR 395 Kg
ER26/1TR 494 Kg
 POWER SUPPLY: 220/400 V. – 50-60 Hz
 PRODUCTION:
ER26TR 1200 PAIRS IN 8 HOURS
ER26/1TR  1600 PAIRS IN 8 HOURS
ER29TR 800 PAIRS IN 8 HOURS
