Stema PU05 Humidifier the tip before lasting (one station)

Stema PU05 Humidifier the tip before lasting (one station)

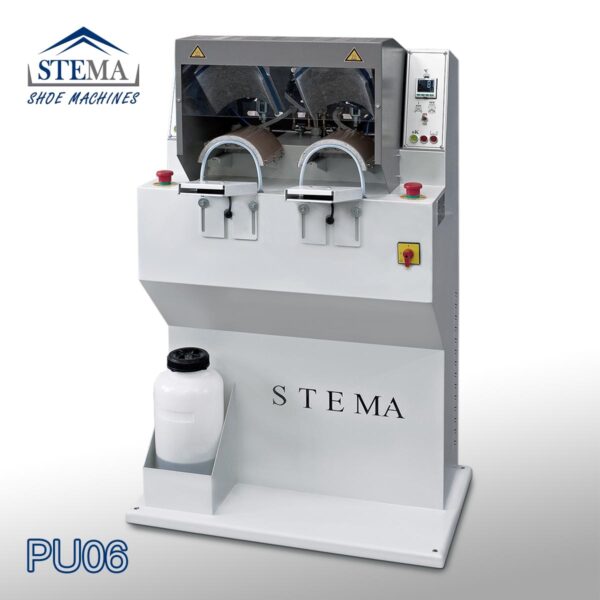

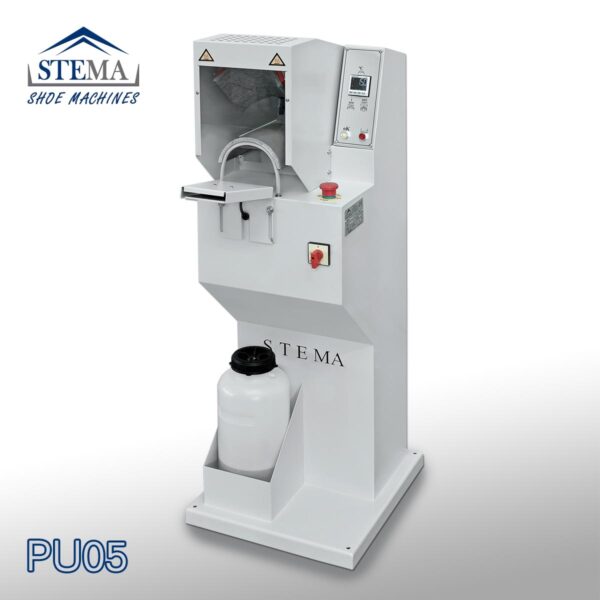

PU05 – PU105 – one place PU06 – PU106 – double place. Machine to humidify and reactivate the tip before lasting. The moistening happens through the top clamp which heats and injects the superheated steam vamp.
The lower press heats the lining and the tip to reactivate them. The temperature is managed and displayed by the thermal regulator to ensure absolute precision. In versions PU105 – PU106 the steam is pressurized, and is generated in a boiler.

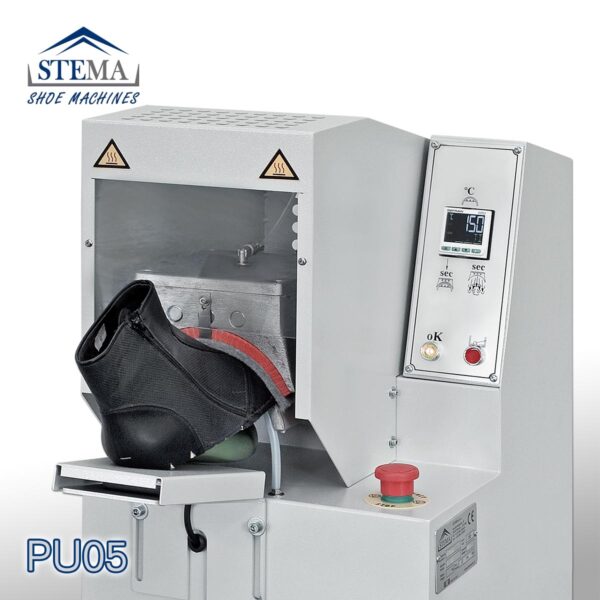

On the command panel, it is possible to vary:
– The lower press temperature from 100°C to 200°C
– The steam injection time from 0 to 9,9 sec. (PU105-106 sec. 0-19)
– The total cycle time from 0 to 99 sec

TECHNICAL FEATURES

POWER: 1,5 Kw
SIZE: 45x65x120 cm
WEIGHT: 47 Kg
ELECTRICAL FEED: 220/400 V. – 50-60 Hz
