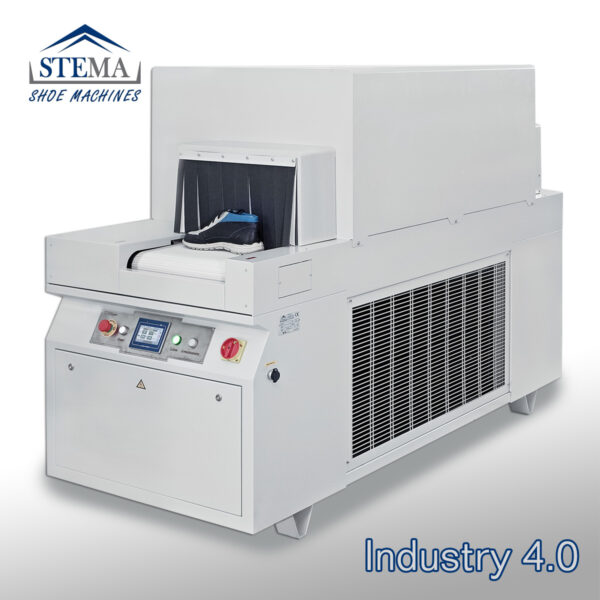

Stema SF120 CHILLER TUNNEL

Stema SF120 CHILLER TUNNEL

Chiller tunnel with belt conveyor to accelerate footwear and cement stabilization.
The cooling of the shoe is with high pressure ventilation conveyed above and below the conveyor.
Techical data:
Technical details:
– Automatic and manual defrosting
– Adjustable temperature from +5° to -25°C
– Adjustable quantity of air
– Maximum production: SF119 1200 pairs in 8 hours SF120 2000 pairs in 8 hours
TECHNICAL FEATURES
 POWER: SF119 – 4 KW – SF120 5 kW
 SIZE: SF119 cm 90x200x150 – SF120 cm 90x300x150
 WEIGHT: SF119 – Kg.470 – SF120 Kg 630
 POWER SUPPLY: 220/400 V. 50-60 Hz
