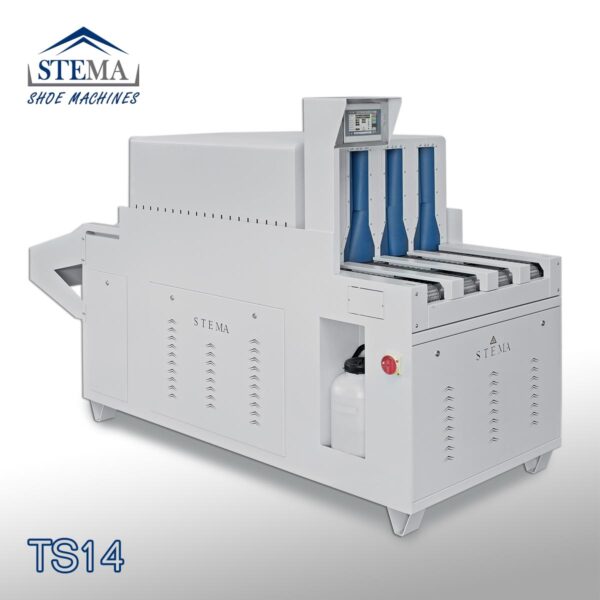

Stema TS14 Ironing and stabilizing tunnel

Stema TS14 – TS16 Ironing and stabilizing tunnel
The ironing tunnel has evolved from traditional ironing tunnels.

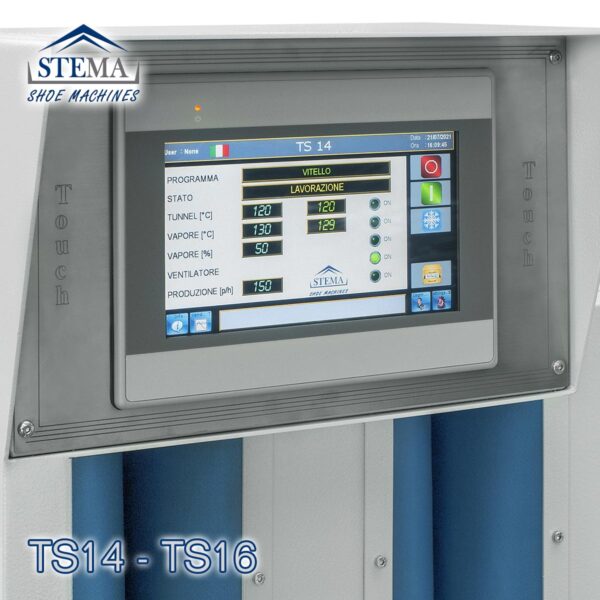

By the use of specific software and a control panel interacting with the machine, up to 50 customised programs.
The parameters that the operator can adjust are as follows:
– Air temperature from 0 to 220°C
– Steam temperature from 110°C to 160°C (PATENT)
– Steam percentage from 0 to 100%
– Productive capacity: TS14 from 200 to 1600 pairs in 8 h TS16 from 200 to 800 pairs in 8 h

TECHNICAL FEATURES

 POWER: 15 Kw – TS16 12 Kw
 SIZE: TS14 95X240X150 cm  TS16 55X240X150 cm
 WEIGHT: TS14 465 Kg  TS16 345 Kg
 ELECTRICAL FEED: trifase 220/400 V. – 50/60 Hz
