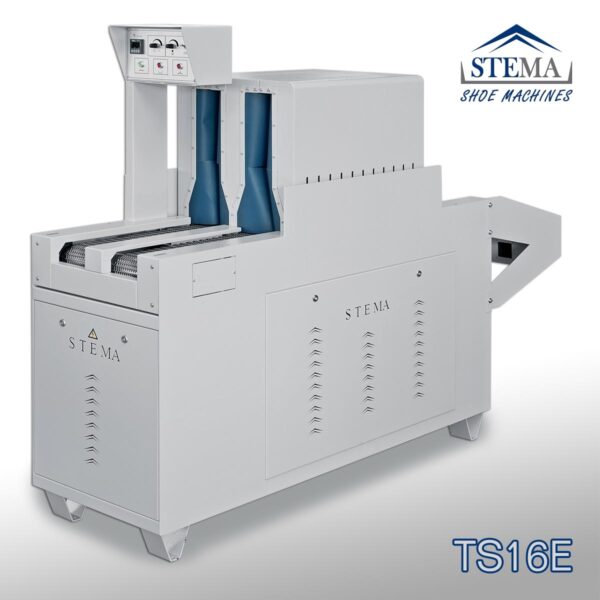

Stema TS16E Ironing and stabilizing tunnel

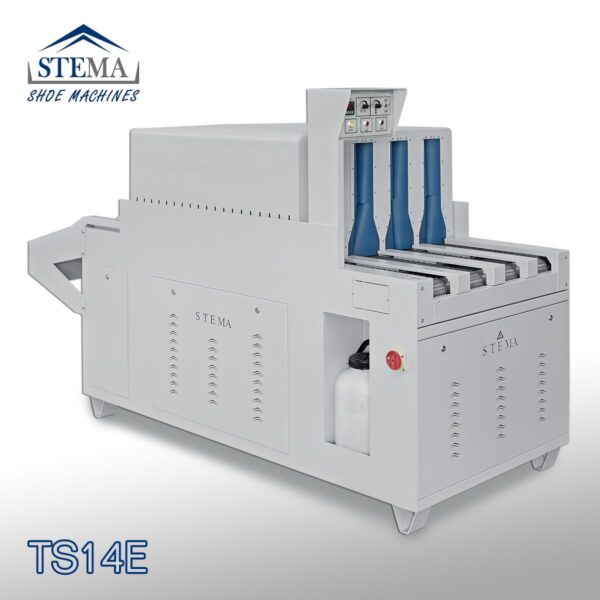

Stema TS16E – TS14E Ironing and stabilizing tunnel
2 and 4 way tunnel for ironing and stabilising footwear. The high quality standard of work carried out by this machine is achieved by optimal orientation of the nozzles which provide. The jets of hot air and steam, which are aimed directly on the parts of the footwear that are usually held by grippers and are uneven in appearance.
The parameters that the operator can adjust are as follows:
– Air temperature from 0 to 220°C
– Steam percentage from 0 to 100%
– Productive capacity from 600 to 1200 pairs in 8 h (TS16E)
– Productive capacity from 800 to 1600 pairs in 8 h (TS14E)
TECHNICAL FEATURES
POWER: TS16E 10 Kw – TS14E 13 Kw
SIZE: TS16E 55X190X150 cm TS14E 95X195X150 cm
WEIGHT: TS16E 325 Kg TS14E 430 Kg
ELECTRICAL FEED: trifase 220/400 V. – 50/60 Hz
| Segment of production | Shoes |
|---|---|
| Manufacturer | |
| Type of machine | Stabilizing furnaces |
