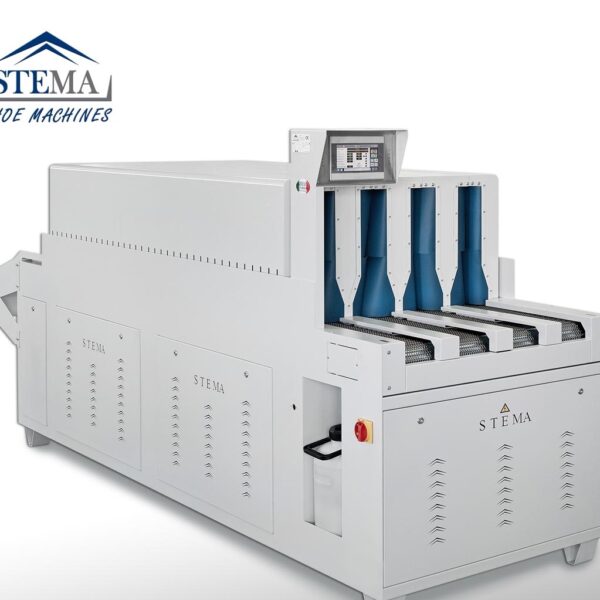

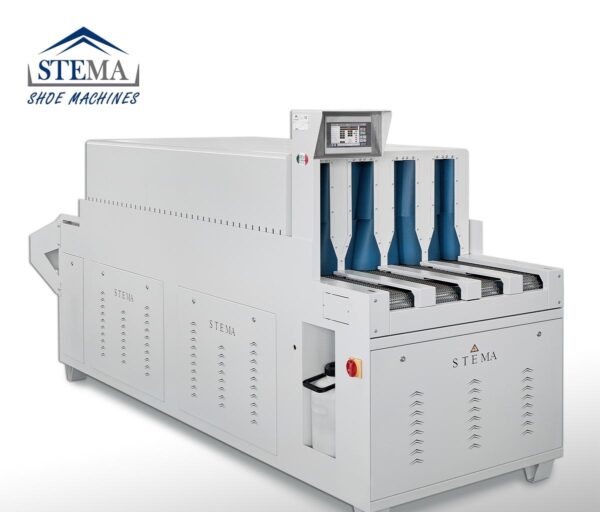

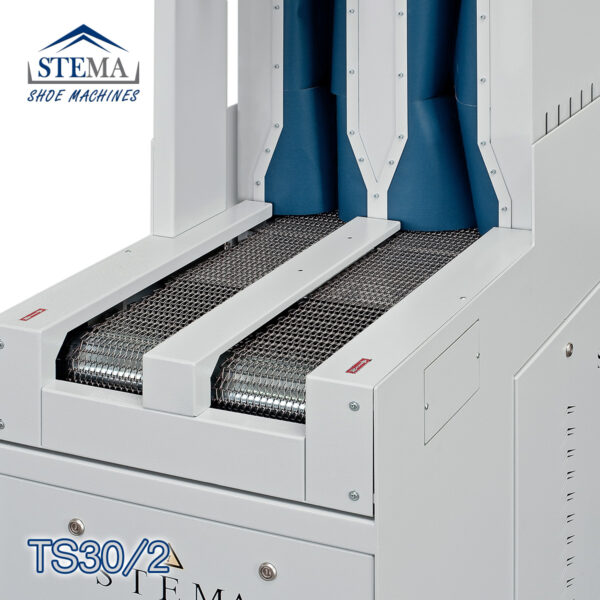

Stema TS30 Double Chamber ironing tunnel

Stema TS30-TS30/2  Double Chamber ironing tunnel

2 or 4 way tunnel for ironing and stabilising footwear. Double linear chambers guaranteed, even at high productions, a great qualitative standard. The Machine do its cycle of work in two linear chambers. The first is an ironing and humidificating chamber, The second is an ironing and stabilizing chamber.
The parameters that the operator can adjust are as follows:
– Air temperature from 0 to 220°C
– Steam percentage from 0 to 100%
– Productive capacity: TS30/2 from 100 to 1000 pairs in 8 h – TS30 from 100 to 2000 pairs in 8 h

TECHNICAL FEATURES
 POWER: 16 kw TS 30/2 – 19 kw TS 30
 SIZE: 56 x 330 x 150 cm TS 30/2 – 95 x 330 x 150 cm TS 30
 WEIGHT: 460 Kg TS 30/2 – 620 kg TS 30
 PRODUCTION: 100-1000 PAIRS IN 8 HOURS (TS 30/2) – 100-2000 PAIRS (TS 30)
 ELECTRICAL FEED: 220/400 V. – 50/60 Hz
