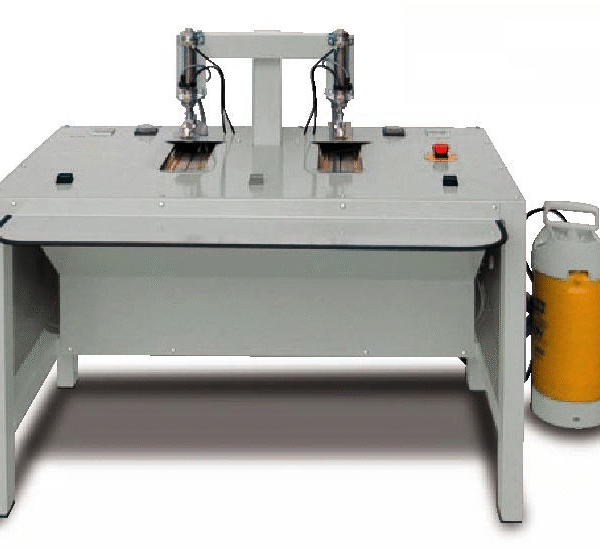

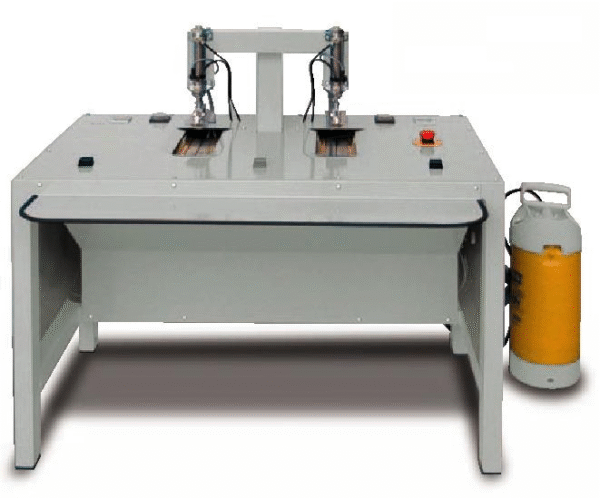

System Brilka AB-V Vent Facing Creaser

System Brilka AB-V Vent Facing Creaser
(Previouse machine modification ASUP)
With this new Vent Facing Creaser it is possible to crease left and right side of sleeves during overlap operation. Folding and pressing of different kind of fabric in high quality. Additional cooling with integrated stations for better result. Optimal process for thick and not vacuum permeable material. Easy form changing and low energy requirement and consumption
Model AB-V Vent Facing Creaser Used for blouse or shirt manufacturing
Article – vent facing sleeves
Vent facing cutting  standard 78 mm width x 200 mm long
Vent facing pressed  standard 25 mm width x 190 mm long

Productivity (h) Folding & pressing approx. 360 articles / hour
Technical details
Temperature Pressing adjustable from 100 – 200°C
time adjustable from 1 – 20 sec.
Size and weight L x W x H 680 mm x 650 mm x 1220 to 1520 mm
Weight approx. 120 kg
