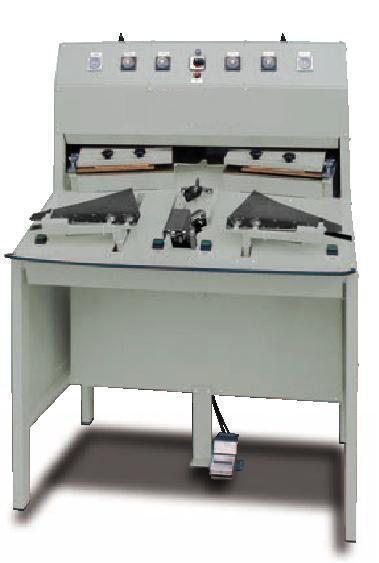

System Brilka KP-AW Collar press with the triming device

System Brilka KP-AW Collar press with the triming device
(Previous model name WAKF)
With this new Collar press is it possible to trim, turn and press collars in two-in-one working station.
New pressure system guarantee best results and quick change of different collar forms Adjustable turning pressure for all kind of fabric
Low energy requirement and consumption of energy is important for a low priced production.
Model KP-AW Collar press with trimming and turning part Used for Blouse or shirt manufacturing

Article –  Blouse or shirt collars
Collars – variable
Productivity (h) – Trimming, turning and pressing approx. 180 articles / hour
Technical details
Temperature adjustable from 100 – 200°C
Pressing time adjustable from 1 – 20 sec.
Size and weight L x W x H 910 mm x 750 mm x min.1300 mm – max.1400 mm
Weight approx. 150 kg

Option: Additional form set for KP-AW (WAKF) System Brilka Art 416.869/6
